Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | A182 F316L Stainless Steel SW Elbow |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | PLYWOOD CASE, PALLET |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Product Name: | Stainless Steel SW Elbow | Standard: | B16.11, ASTM A182/ASME SA182 |
|---|---|---|---|
| Material: | Stainless Steel 304, 304L, 310S, 316L, 317L, 347, Etc. | Size: | 3/8", 1/2", 3/4", 1", 1.1/4", 2", 2.1/2", 3", 4" |
| Classs: | 3000#,6000#,9000# | Type: | 45deg. 90deg Elbow |
| Technics: | Forged | ||
| High Light: | Stainless Steel Forged Pipe Fittings, B16.11 ASTM A182 F316L Stainless Steel SW Elbow | ||

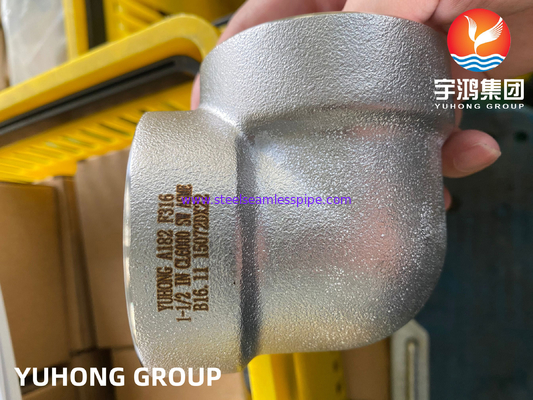

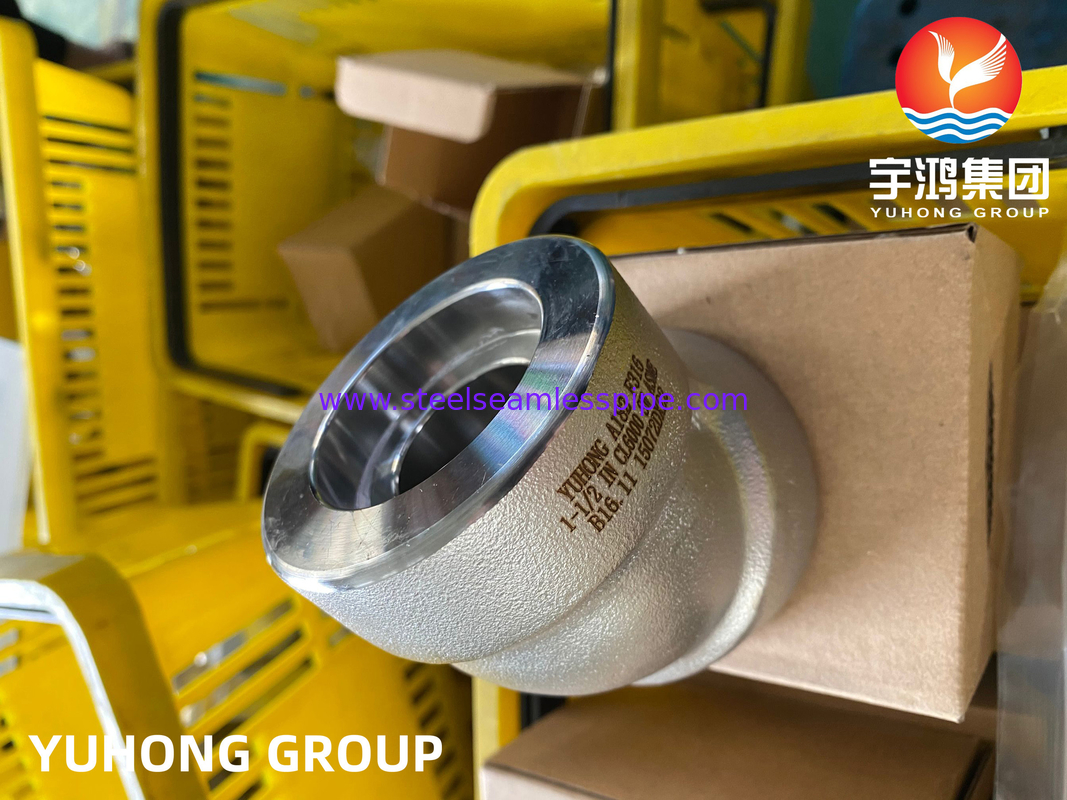

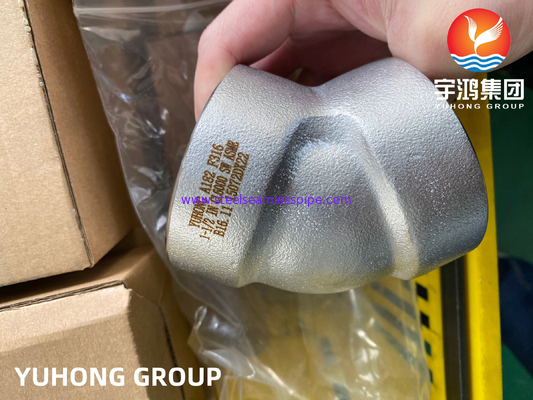

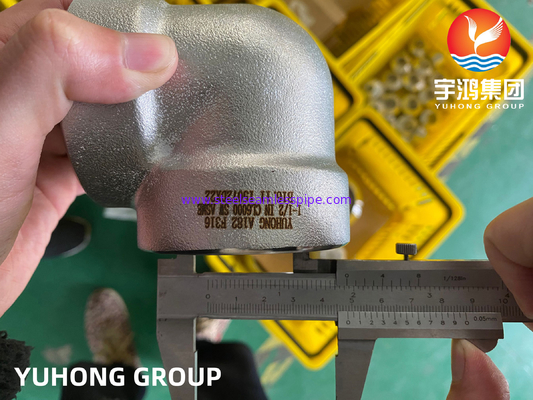

ASME B16.11 Fittings ASTM A182 F316 Stainless Steel Forged SW Elbow Fittings
What is A182 TP316 Fittings?
A182 TP316 fittings are a special type of fittings made from ASTM A182 grade TP316 stainless steel ASTM A182 is a standard specification for forged or rolled alloy steel and stainless steel pipe flanges, forged fittings, and valves for use in high-temperature service.
The TP316 designation refers specifically to the grade of stainless steel used in the fitting. In this case, TP316 is a commonly used austenitic stainless steel with excellent corrosion resistance. It contains high levels of chromium and nickel for enhanced corrosion and oxidation resistance, especially in corrosive environments.
These A182 TP316 fittings are used in a variety of industries that require high corrosion resistance, such as chemical processing, pharmaceutical, food and beverage, oil and gas, and other applications involving fluids or gases.Examples of A182 TP316 fittings include elbows, tees, reducers, couplings, unions, and other types of fittings.
It is important to note that the A182 TP316 designation is specific to the material used, while the fittings themselves may have different shapes, sizes and configurations depending on the specific application or industry requirements.
Chemical Composition
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 316L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
16.00 - 18.00 |
2.00 - 3.00 |
10.00 - 14.00 |
68.89 min |
Mechanical Properties
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
8.0 g/cm3 |
1399 °C (2550 °F) |
Psi – 75000 , MPa – 515 |
Psi – 30000 , MPa – 205 |
35 % |
Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 316L | S31603 | 1.4404 / 1.4435 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17 |
