| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N02200 Alloy200 |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | ASTM B163 / ASME SB163 | Material Grade: | UNS N02200 Alloy200 |
|---|---|---|---|
| Technique: | Hot Rolled,Cold Drawn | Thickness: | 1 - 30 Mm |
| Outer Diameter(round): | 10 - 2000 Mm | Alloy Or Not: | Is Alloy |
| Length: | 1m-12m | Application: | Boiler Pipe,Structure Pipe,Oil Pipe,Chemical Fertilizer Pipe,Fluid Pipe |

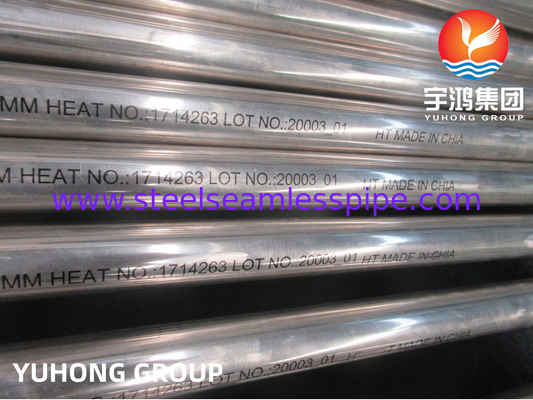

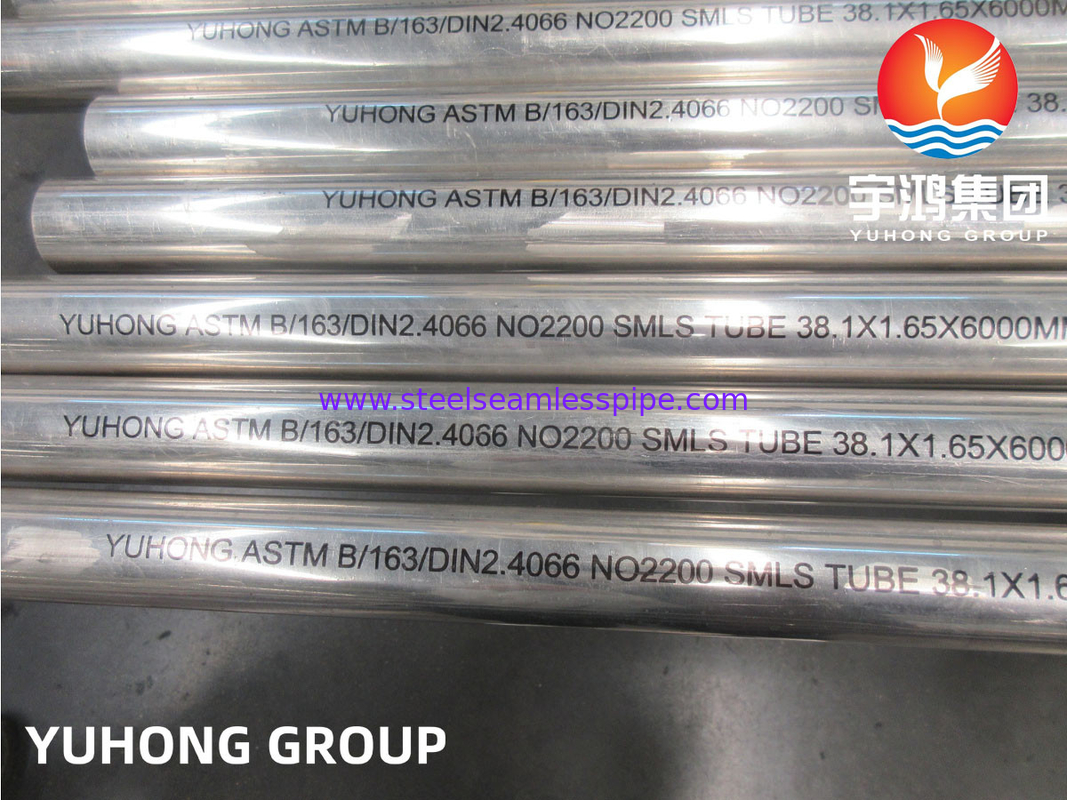

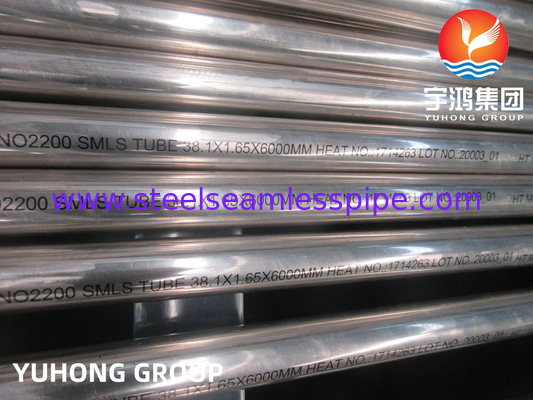

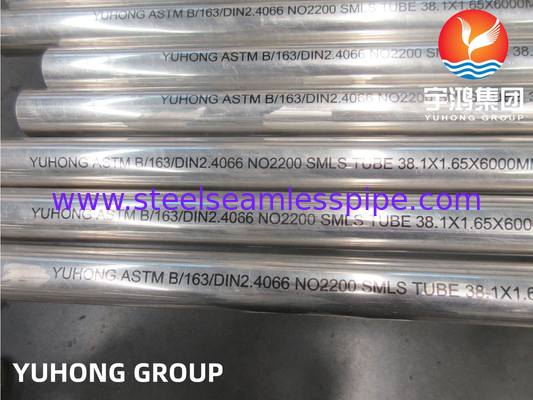

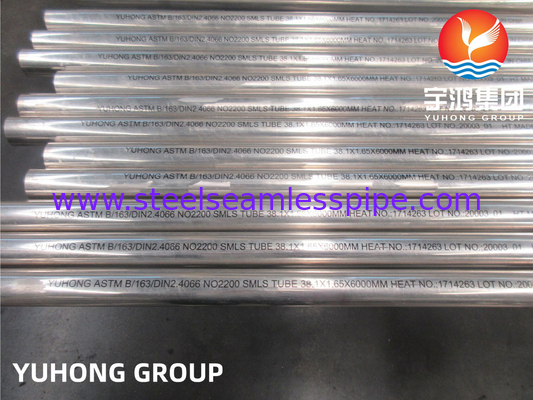

ASME SB163 UNS N02200 Alloy200 Nickel Alloy Steel Seamless Tube
Nickel 200 Tubing, Alloy 200 Tube supplier
Nickelhas carbon, manganese, silicon, sulfur, copper, iron and 99% nickel in the composition. we supply the tubes in various lengths, schedules and wall thicknesses. 200 Tube is made of a 99% nickel alloy that is known as commercially pure nickel. The material has 148MPa minimum yield strength and 462MPa minimum tensile strength but the corrosion resistance of the material is very high.We are leading manufacturer and supplier of the Nickel 200 Seamless Tube and other types of tubular products in various scales and dimensions.
ASTM B163 UNS N08825 Boiler Tube has good creep strength and rupture resistance. These tubes are designed with a wall thickness between 1mm to 20mm.
ASTM B163-11 Heat Exchanger Tube allows for easy heat transfer within the system. These tubes have good hardness characteristics and can be readily machined or fabricated.
ASME SB163 Condenser Tube is designed to condense process fluid before it gets into the tube. These tubes are produced by making use of cutting-edge technology and performing frequent tests post production.
Chemical Composition:
| C | 0.15 max |
| Mn | 0.35 max |
| Si | 0.1max |
| P | --- |
| S | 0.01max |
| Mg | --- |
| Ni | 99 min |
| Cu | 0.25max |
| Fe |
0.4max |
Nickel 200 Seamless Tube Mechanical Behaviour:
| Grade | ASTM B163 Nickel 200 |
| Tensile Strength (MPa) min | Psi – 67000 , MPa – 462 |
| Yield Strength 0.2% Proof (MPa) min | Psi – 21500 , MPa – 148 |
| Elongation (% in 50mm) min | 45% |
Application:
Petrochemical
Oil Well/oilfield
Energy Poly Silicon Shipyard/Shipbuilding
Boiler Heat Exchange,Environmental Protection
Equipment
Medicine
Hydropower
Nuclear Power
Chemical Fertilizer
Energy Equipment
Oil Refining
Steel Complex
Industry Gas Plant
