Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N06600, Inconel 600 |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case/ Pallet |
| Delivery Time: | 5 - 60 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM B366, ASME SB366 | Material Grade: | UNS N06600, Inconel 600 |
|---|---|---|---|
| Technics: | Butt Weld | Size: | Customized Size,1/2''-48''(DN15-DN1200) |
| Thickness: | SCH10-SCHXXS | Type: | Elbow,Nipple,Pipe Threaded,Reducer,Tee,Coupling,Etc. |
| Connection: | Welding,Male And Female | Applications: | Construction,Gas And Oil Pipes,Air,Steam,Petroleum Gas Water,Etc. |

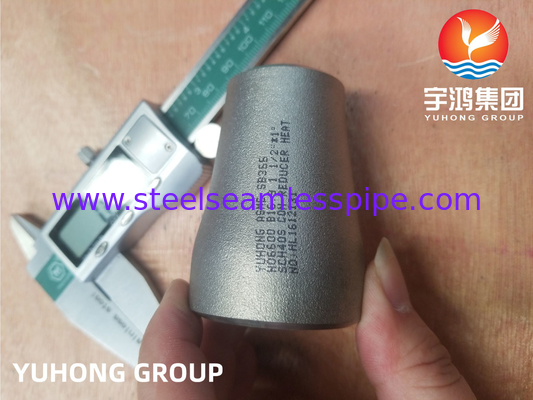

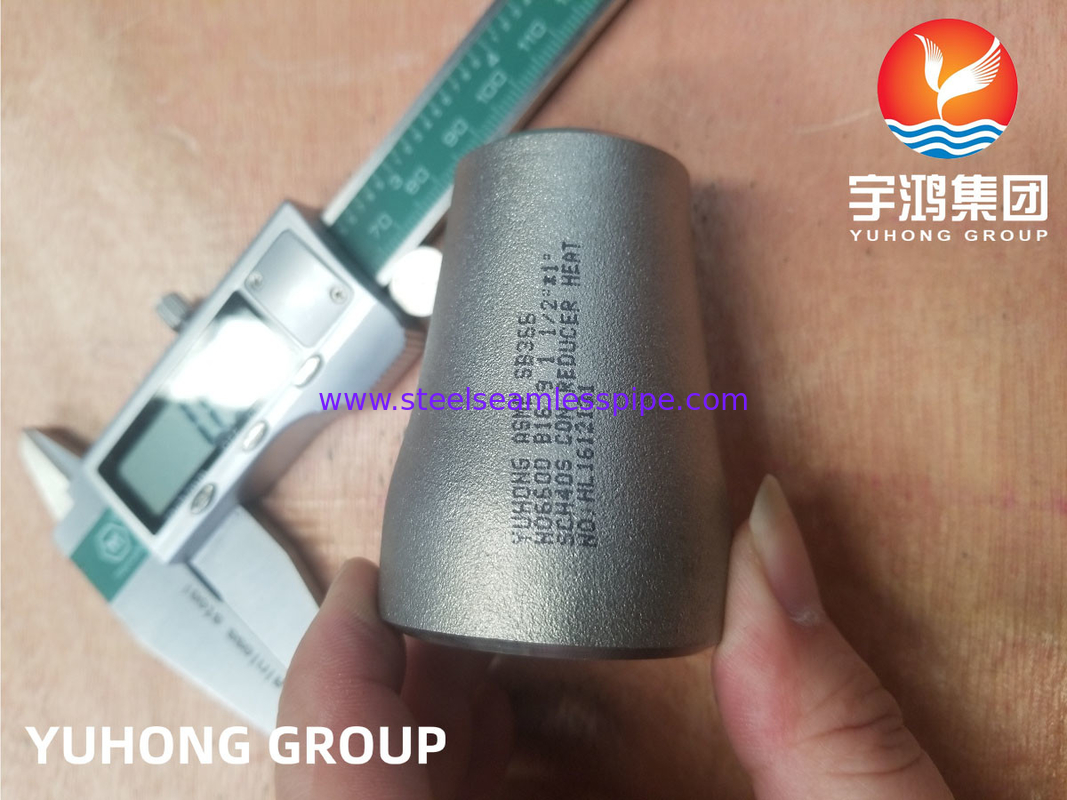

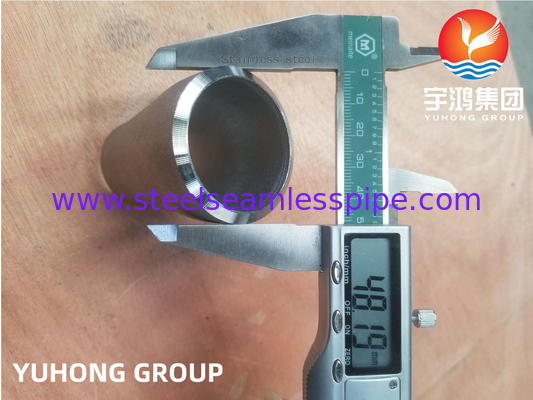

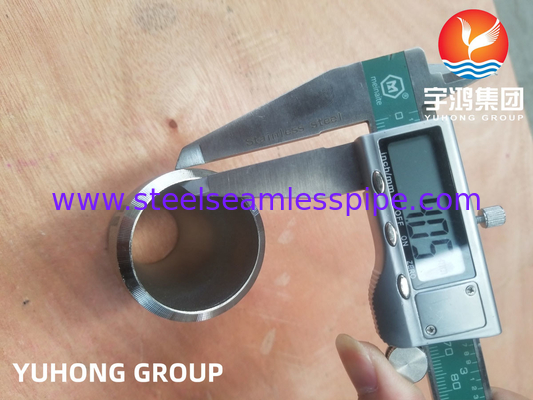

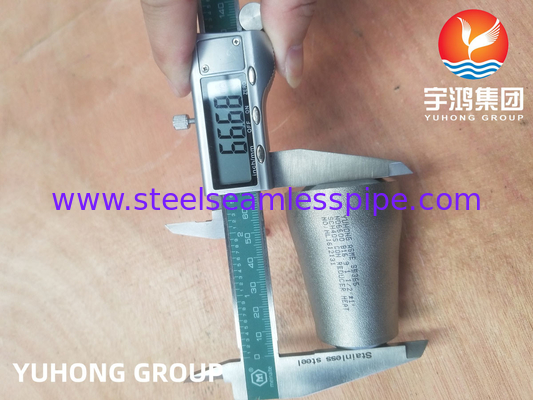

ASME SB366 UNS N06600, Inconel 600 Nickel Alloy Fittings Concentric Reducer B16.9
Inconel 600 is a nickel-chromium alloy with additions of aluminum. The nickel content of Inconel 600 Fittings gives it excellent resistance to corrosion and good oxidation resistance at high-temperature environments. These fittings also have good tensile strength, workability and can be easily welded. They are widely used in heat exchangers, condensers, furnaces, aerospace industries, and so on.
Material Equivalent:
| GRADE | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Standards | ASTM B366/ ASME SB366 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44 |
| Thickness | SCH10 - SCH XXS |
| Fittings size | 1/2″ – 48″ |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pressure Rating | 2000 LBS / 3000 LBS / 6000 LBS |
| Types | Seamless / Welded / Socketweld / Threaded / Fabricated |
| Manufacturing process | Push, Press, Forge, Cast, Etc. |
Chemical Composition:
| C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 0.15 max | 1 max | 0.5 max | 0.015max | 0.5 max | 6 – 10 | 72 min | 14 – 17 |
Mechanical Properties:
| Density | 8.47 g/cm3 |
| Melting Point | 1413 °C (2580 °F) |
| Tensile Strength | 95000 Psi, 655 MPa |
| Yield Strength (0.2%Offset) | 45000 Psi, 310 MPa |
| Elongation | 40 % |
Applications:
Heat Exchangers
Condensers
Desalination
Food Processing Plantss
Chemical Industries
Pharmaceutical Industries
Sea Water Equipments
Pulp and Paper Plants
Off-Shore Equipments
Power Generation
Petrochemicals Industries
Gas Processing Equipments
