Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A269 TP316L Stainless Steel Coil Tube |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Stainless Steel Coil Tube | Specification: | ASTM A269 TP316L |
|---|---|---|---|
| Standard: | ASTM ( ASME) ,EN, DIN, JIS And Etc | Material: | TP304, TP304L,TP316, TP316L,dual Grade 317L , 316Ti, TP321 |
| O.D.: | 1/4"-3/4" | W.T.: | 0.028"- 0.065" |
| Surface: | Polished, Pickled, Bright Annealed | Type: | Seamless / Welded |
| Application: | Heating, Cooling, Instrumentation ... | ||
| High Light: | ASTM A269 TP316L Stainless Steel Coil Tube | ||

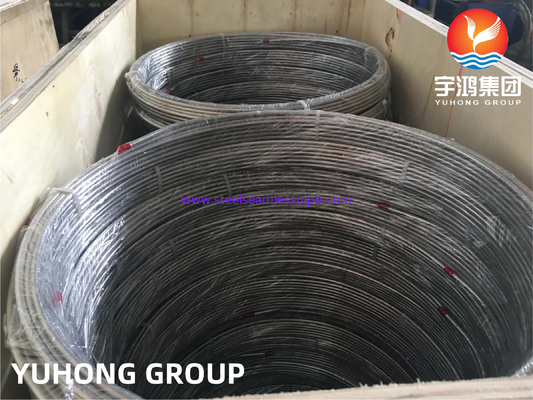

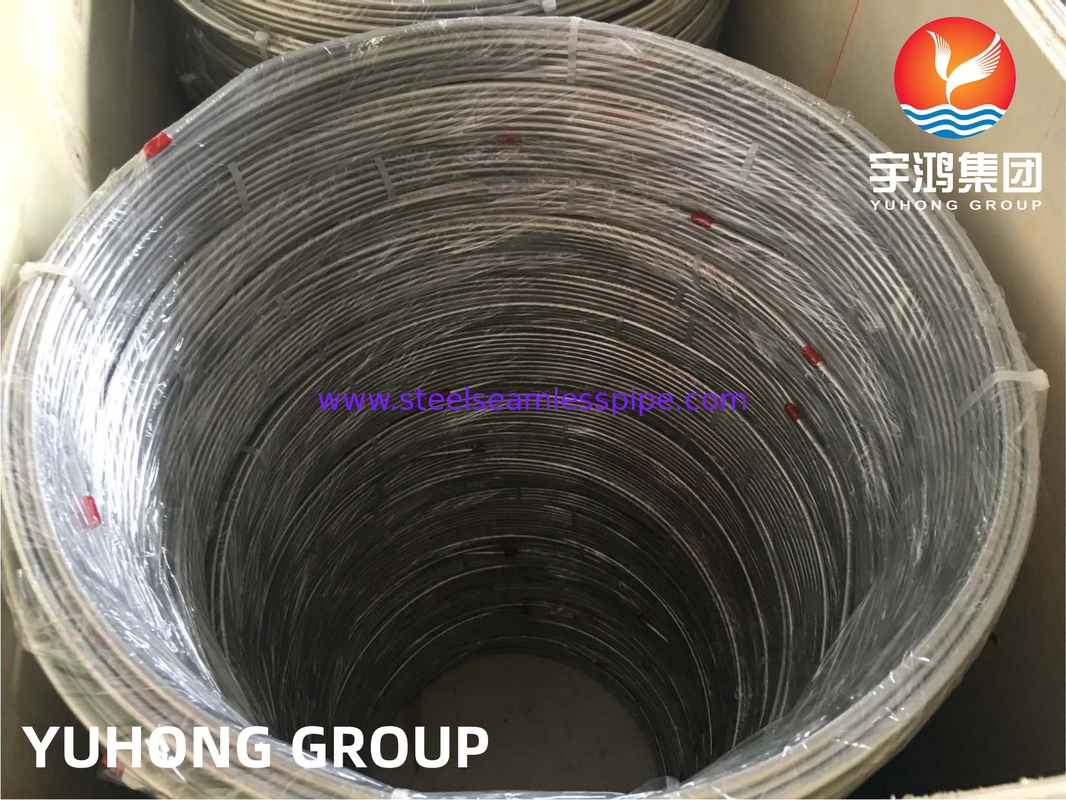

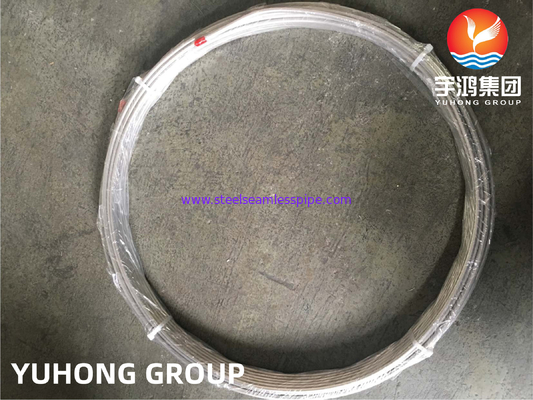

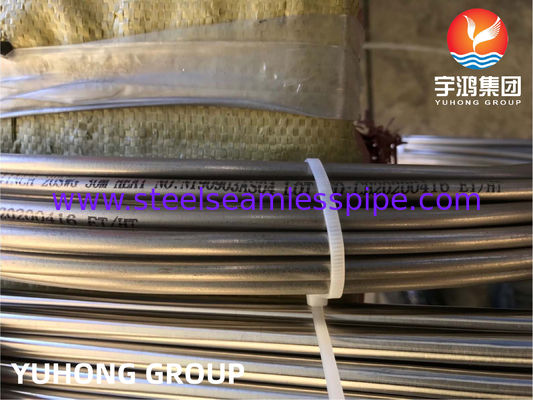

Coil Tube ASTM A269 TP316L Stainless Steel BA used in Oil and Gas
YUHONG GROUP offers small diameter tubing in pre-cut lengths from stock or custom, stainless steel tubing can be made to order. Small diameter stainless steel tubes is used by companies across numerous industries including Aerospace, Automotive, Electronics, Oil and Ga, Fiber Optics, Renewable Energy, and Medical Device. Coiled tubing makes long length tube installations possible without the need for joining fittings. This reduces installation time and costs as well as eliminates potential leak points.
Overview
Similar to wireliningSS 316 Seamless Coiled Tubing is often used to carry out operations. The main advantage over wireline is the capacity to pump chemicals through the coil and the ability to push it into the hole rather than relying on gravity. Stainless Steel Coil Tubing Heat Exchanger is ideal for applications such as unit heaters, boiler air preheating, condensing and cooling as well as high pressure, air tempering and dryer applications. Some of the features of coil tubing heat exchangers are flexibility, low pressure drop, high efficiency.
Stainless Steel Round Tube Coil 316 is normally used in natural gas/petroleum/oil, aerospace, food and beverage, industrial, cryongenic, architectural, and marine applications. 316 stainless has high strength and excellent corrosion resistance, including in marine or extremely corrosive environments. It is stronger, though less malleable and machinable than 304, 316 maintains its properties in cryogenic or high temperatures.
ASTM A269 Tp316 is a grade of seamless and welded austenitic steel with nominal wall thickness that is designed with 316 austenitic stainless steel. The ASTM A269 Tp316 Tube is composed of an outstanding content of 16% chromium with 10% nickel and 2% of molybdenum. The content embedded with these modules gives them excellent corrosion and oxidation resistance properties. SA269 Gr 316 Tubing is seen in use across pressurized vessel grades. They are very strong and protect the tubing against pitting and crevice corrosion that is induced across stress-induced setups.
316/L (UNS S31600/UNS S31603) Chemical Composition % (Max.)
| Cr Chromium |
Ni Nickel |
C Carbon |
Mo Molybdenum |
Mn Manganese |
Si Silicon |
Ph Phosphorus |
S Sulfur |
| 16.0-18.0 | 10.0-14.0 | 0.030 | 2.0-3.0 | 2.00 | 1.00 | 0.045 | 0.30* |
316 / 316L Mechanical Property
| Grade | Tensile Strength(Mpa) | Yield Point(Mpa) | Elongation(%) | Elongation(%) |
| 316L | 485 | 170 | 35 | 25 |
Application
Use in Heat Exchangers
Use in Instrumentation
Use in Hydraulic & Pneumatic system
Use in Nuclear Power Plants
Use in Automotive industries
Use in Aerospace
Use in Medical
Use in Pharmaceutical
Use in Oil coolers
Use in Economizers
Use in Condenser
Use in LNGs
Use in Pulp and paper
Use in Offshore construction
