Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N06625, Inconel 625 |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case/ Pallet |
| Delivery Time: | 10-90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM B366, ASME SB366 | Material Grade: | UNS N06625, Inconel 625 |
|---|---|---|---|
| Connection: | Welding,Female,Male | Technics: | Butt Weld |
| Type: | Cap,Elbow,Nipple,Pipe Threaded,Reducer,Tee,Etc. | Size: | Customized Size, 1/2"-48" |
| Thickness: | SCH10-XXS(2-60mm) | Application: | Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water |

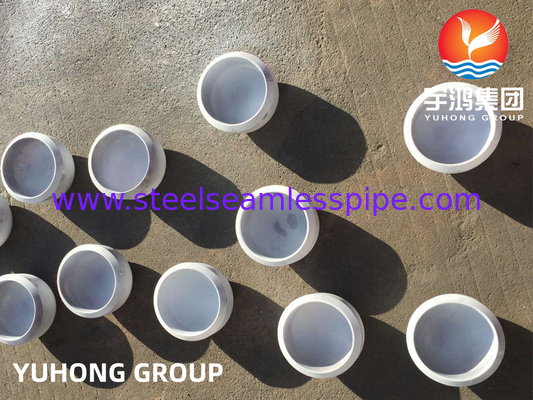

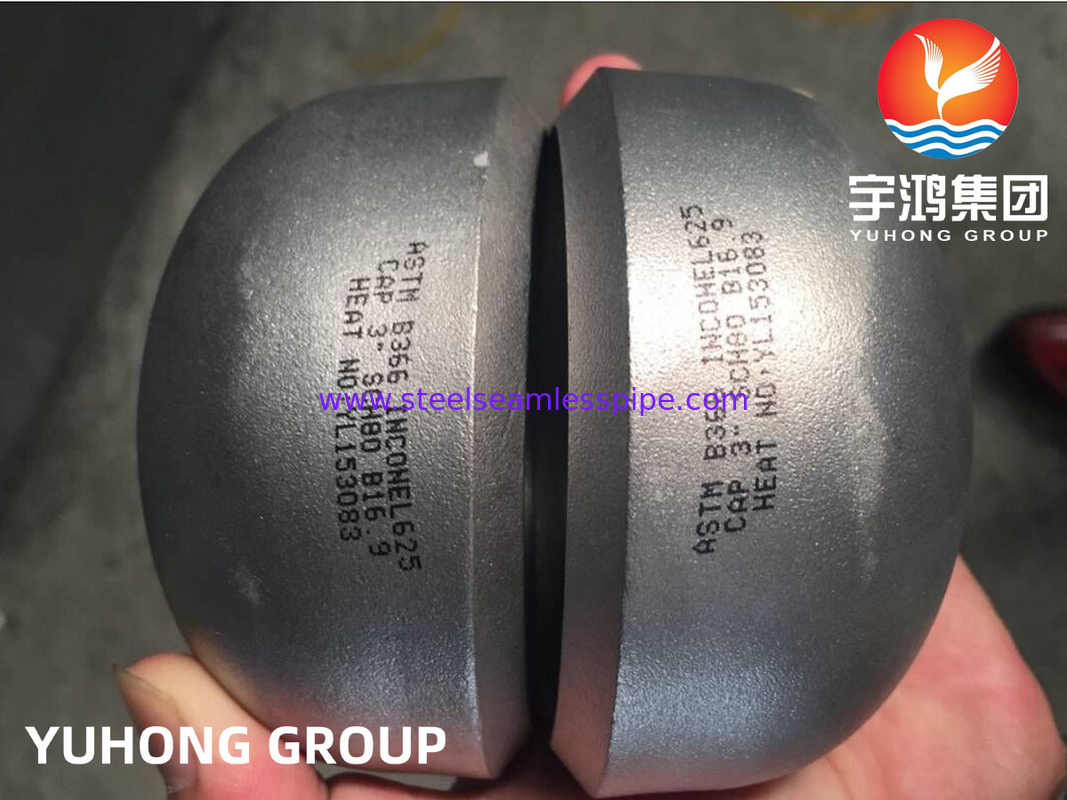

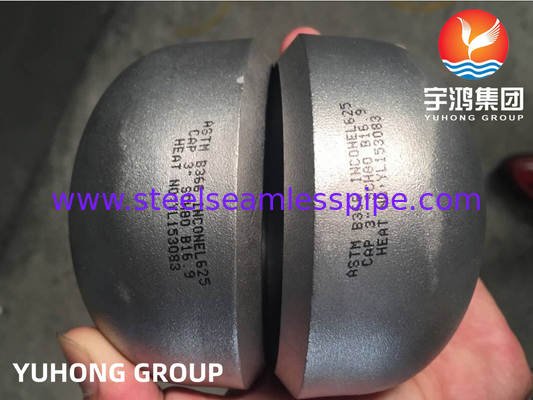

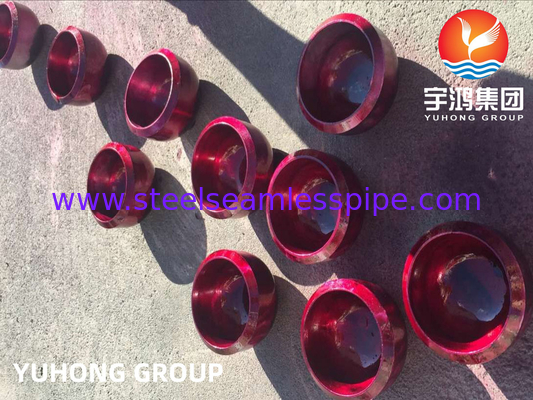

Butt Weld Fittings ASME SB366 UNS N06625, Inconel 625 Nickel Alloy Steel End Cap B16.9
ASME SB366 Inconel 625 Nickel Alloy Steel Pipe Fittings are used in high corrosive applications. The material is a nickel-chromium-molybdenum alloy with niobium in the composition for stabilization. They can be used in from cryogenic temperatures up to 1093 degrees Celsius. So Alloy 625 Nickel Alloy Steel Fittings are widely used for applications which require high strength, corrosion resistance and high temperature resistance.
We, YUHONG GROUP is a manufacturer and supplier of ASTM B366 Inconel 625 nickel alloy steel butt weld fittings, like end caps, elbows, reducers, etc., which is a nickel-based superalloy with high strength properties and resistance to high temperatures. Inconel 625 nickel alloy fittings are suitable for high-temperature applications because of its high-toughness and outstanding aqueous corrosion resistance.
Features:
Corrosion Resistant
Rust proof finish
Excellent stress distribution
Sustain High Pressure & Temperature Load
Specification:
|
Standards |
ASME / ANSI B16.9, ASME / ANSI B16.11, ASME / ANSI B16.28, ASME B16.5, MSS SP-43, GB12459, GB/T13401, GB/T14383, etc. |
|
Specification |
ASTM B366 / ASME SB366 |
|
Size |
Seamless: 1/2" - 10" , Welded: 1/2" - 48" |
|
Schedule |
SCH 5 To SCH XXS. |
|
Grades |
Inconel 625 / UNS N06625 / W.Nr. 2.4856 |
|
Type |
Seamless / Welded |
|
Wall Thickness |
2 To 40 mm. |
Equivalent Grades:
| GRADE | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4MNiCr22Mo9Nb | NiCr23Fe |
Chemical Composition:
| Ni | 58 min |
| Cr | 20 – 23 |
| Fe | 5 max |
| C | 0.1 max |
| Mn | 0.5 max |
| Si | 0.5 max |
| Mo | 8 – 10 |
| Co | 1 max |
| Al | 0.4 max |
| Ti | 0.4 max |
| Nb + Ta | 3.15 – 4.15 |
| P | 0.015 max |
| S | 0.015 max |
Mechanical Properties:
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8400 kg/m3 | 1350 °C (2460 °F) | 75000 Psi, 517 MPa | 135000 Psi, 930 MPa | 42.5 % |
Applications:
Paper & Pulp Companies
Oil and Gas Industry
Pipeline Equipment
High Temperature Application
Nuclear Power Plants
Boiler & Heat Exchangers
Chemical Industry
High Pressure Applications
Pharmaceutical Equipments
