Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Model Number: | ASTM A269 TP316L |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Certification: | ISO, SGS, BV, ISO&SGS, ISO/CE/SGS | Steel Grade: | 300 Series, Stainless Steel 304/316L, 400 Series, X5CrNi18-20, 200 Series |
|---|---|---|---|
| Type: | Seamless, Welded, Round Pipe | Standard: | ASTM A269, ASTM A213, EN10216-5, DIN17458, Etc. |
| Length: | 5.8m, 6m, 11.8m, 12m Or As Required | Thickness: | 0.4-30mm, 1.0mm, 0.6-2500mm,1-60mm, 0.6-25mm |
| Technique: | Cold Rolled, Cold Drawn | Product Name: | Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube |
| Material: | Stainless Steel | Outer Diameter: | 6-630mm, 6-762mm, 6-860mm, Customized |
| Grade: | 201/202/304/304L/316/316L/321/321H/347/347H/310S/410/420/430/440/439, Etc | Finish: | Brush Polish, Cold Drawn, Bright Annealed Or Un Annealed |
| Application: | Heat Exchanger, Condenser, Boiler, Etc. | Ends: | Plain End, Beveled End, Threaded End, Etc. |
| Inner Diameter: | 6-630mm | Outer Diameter: | 6mm-219mm |
| Processing Service: | Cutting, Bending, Welding, Etc. | Shape: | Round |
| Surface Finish: | Polished, Brushed, Etc. | Surface Treatment: | Bright Annealed |
| Tolerance: | ±0.2mm | Wall Thickness: | 0.5mm-20mm |
| Certificate: | ISO, SGS, BV, Etc. | MOQ: | 1 Ton |
| Package: | Standard Export Seaworthy Package | Payment Term: | T/T, L/C, Etc. |
| Price Term: | FOB, CFR, CIF, Etc. |
ASTM A269 seamless stainless steel tubing is a high-quality option for various low and high temperature applications. These pipes are typically made from austenitic steel and can be produced using resistance welding, electrofusion welding, or seamless cold drawn mechanisms. SA269 tubing is available in different finishes and can also undergo heat treatment.
The SA 269 Tp 316 grade is known for its superior corrosion resistance compared to the 304 material type. It is suitable for use in high pressure and high temperature environments, as well as low pressure and low temperature applications. As a result, SA 269 Tp 304 and ASTM A269 Tp316l material grade pipes may have different schedules, depending on the specific requirements of the application.
ASTM A269 Tp316 pipe is commonly used in high pressure and high temperature services, such as hydraulic systems. It meets additional specifications required in industries like textiles, chemicals, and marine applications. The ASTM A269 standard provides high tolerances for chloride-rich environments and oxidizers, making it a suitable choice for the chemical and marine industries. Additionally, ASTM A269 seamless stainless steel pipe offers good corrosion resistance for general use.
Overall, ASTM A269 seamless stainless steel tubing is widely used in various industries due to its precise sizing, strength, and corrosion resistance properties.

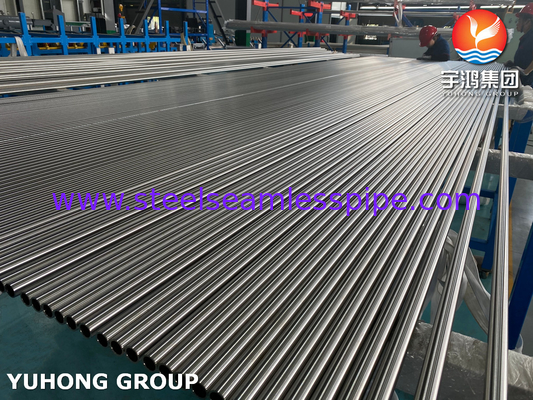

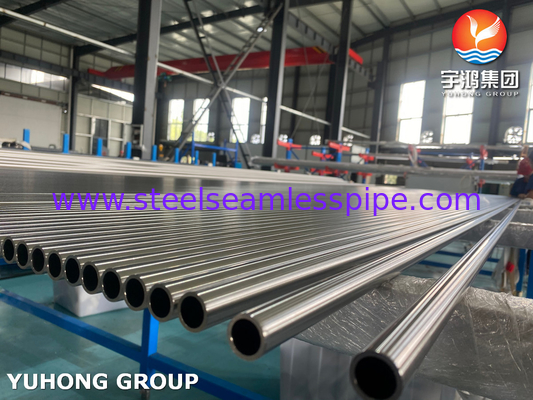

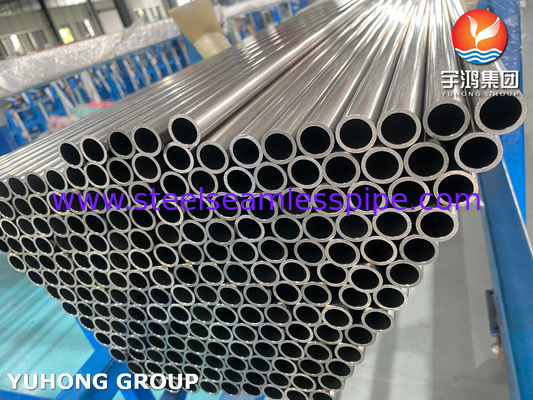

ASTM A269 TP316L Bright Annealed (BA) Stainless Steel Seamless Tube Tubing is a high-quality tubing option that is specifically designed for applications requiring excellent corrosion resistance and superior mechanical properties.
The TP316L grade of stainless steel used in this tubing is an austenitic stainless steel with a low carbon content, making it highly resistant to sensitization and intergranular corrosion. This grade also offers excellent resistance to chloride-induced stress corrosion cracking, making it suitable for applications in chloride-rich environments.
The Bright Annealed (BA) finish of this tubing provides a smooth and shiny surface, enhancing its aesthetic appeal while also making it easier to clean and maintain.
The chemical composition of ASTM A269 TP316L tubing typically includes elements such as chromium, nickel, molybdenum, and a low carbon content. The chromium content enhances its corrosion resistance, while the nickel content provides excellent toughness and ductility. Molybdenum contributes to the tubing's resistance to pitting and crevice corrosion.
ASTM A269 TP316L Bright Annealed (BA) Stainless Steel Seamless Tube Tubing is also known for its high temperature strength, making it suitable for applications in high-pressure and high-temperature environments, such as in the oil and gas industry, chemical processing plants, and various other industrial settings.
This seamless tubing is produced using advanced manufacturing techniques, ensuring precise dimensions and smooth internal surface finish. It undergoes a bright annealing process, which involves heating the tubing to high temperatures and then rapidly cooling it to enhance its mechanical properties, remove internal stress, and improve corrosion resistance.
Overall, ASTM A269 TP316L Bright Annealed (BA) Stainless Steel Seamless Tube Tubing offers outstanding corrosion resistance, excellent mechanical properties, and a visually appealing finish, making it a reliable and versatile choice for various demanding applications.
| Shapes | Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish Tubing or Custom Finish as per customer's specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| Value Added Services |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| END | Plain End, Beveled End, Treaded |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Test Certificate |
|
| Packing | Ends Capped, Sleeved, Wooden Boxed |
| Port | Mumbai, India |
| Uses & Application |
|
| SS GRADE | HEAT TREATMENT | TEMPERURE F (C) MINIMUM | HARDNESS | |
|---|---|---|---|---|
| BRINELL | ROCKWELL | |||
| TP304 | Solution | 1900 (1040) | 192HBW/ 200HV | 90HRB |
| TP304L | Solution | 1900 (1040) | 192HBW/ 200HV | 90HRB |
| TP316 | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| TP316L | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| TP321 | Solution | 1900(1040) F | 192HBW/ 200HV | 90HRB |
| TP347 | Solution | 1900(1040) | 192HBW/ 200HV | 90HRB |
| SS GRADE | ASTM A269/SA 269 CHEMICAL COMPOSITION % MAXIMUM | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | MN | P | S | SI | CR | NI | MO | N B | NB | TI | |
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-11.0 | --- | --- | --- | --- |
| TP304L | 0.035 | 2.00 | 0.045 | 0.030 | 1.00 | 18.0-20.0 | 8.0-12.0 | --- | --- | --- | --- |
| TP316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | --- | --- | --- |
| TP316L | 0.035 D | 2.00 | 0.045 | 0.030 | 1.00 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | --- | --- | --- |
| TP321 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | --- | --- | --- | 5C -0.70 |
| TP347 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | --- | ||
| OD, INCH | OD TOLERANCE INCH(MM) | WT TOLERANCE % | LENGTH TOLERNACE INCH(MM) | |
|---|---|---|---|---|
| + | - | |||
| ≤1 /2 | ± 0.005 ( 0.13 ) | ±15 | 1 /8 ( 3.2 ) | 0 |
| > 1 /2~1 1 /2 | ±0.005(0.13) | ±10 | 1 /8(3.2) | 0 |
| > 1 1 /2~< 3 1 /2 | ± 0.010(0.25) | ±10 | 3 /16(4.8) | 0 |
| > 3 1 /2~< 5 1 /2 | ± 0.015(0.38) | ±10 | 3 /16(4.8) | 0 |
| > 5 1 /2~< 8 | ± 0.030(0.76) | ±10 | 3 /16(4.8) | 0 |
| 8~< 12 | ± 0.040(1.01) | ±10 | 3 /16(4.8) | 0 |
| 12~< 14 | ± 0.050(1.26) | ±10 | 3 /16(4.8) | 0 |
