Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B564 NO8825 |
| Minimum Order Quantity: | 5 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Plywood Case/Pallet |
| Delivery Time: | 10-40 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons/month |
| Product: | Flanges | Type: | Welding Neck |
|---|---|---|---|
| Material: | Nickel Alloy Steel | Standard Grade: | ASTM B564 NO8825 |
| Size: | 1/2"-48"(DN15-DN1200) Or Custom Size | Thickness: | SCH10S-XXS |
| Flange Face:: | RF,FF,etc | Packing: | Plywood Case/Pallet |

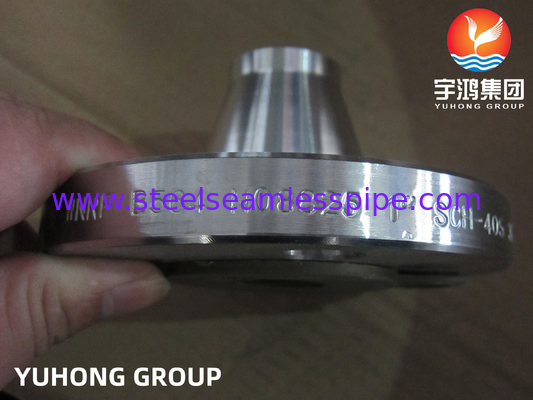

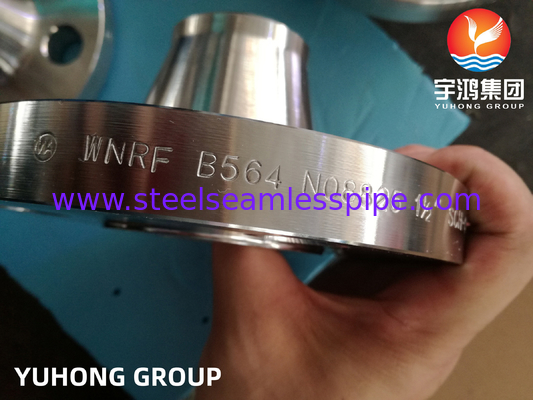

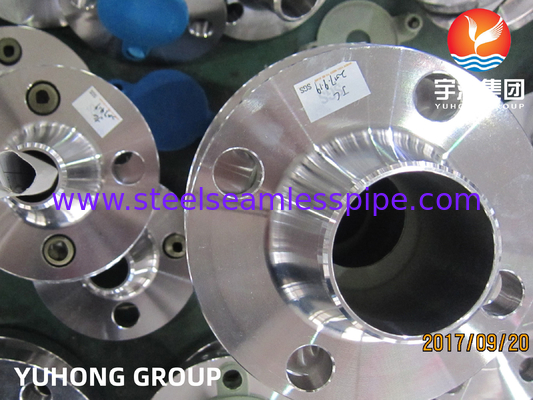

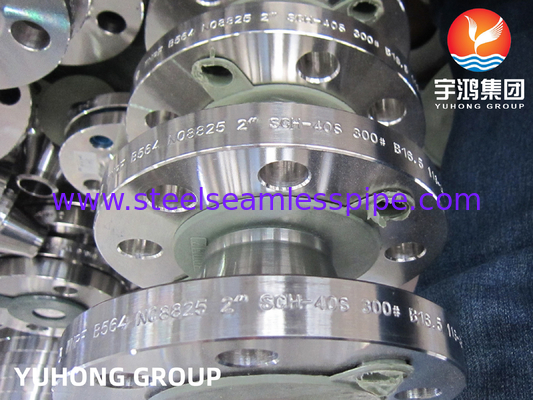

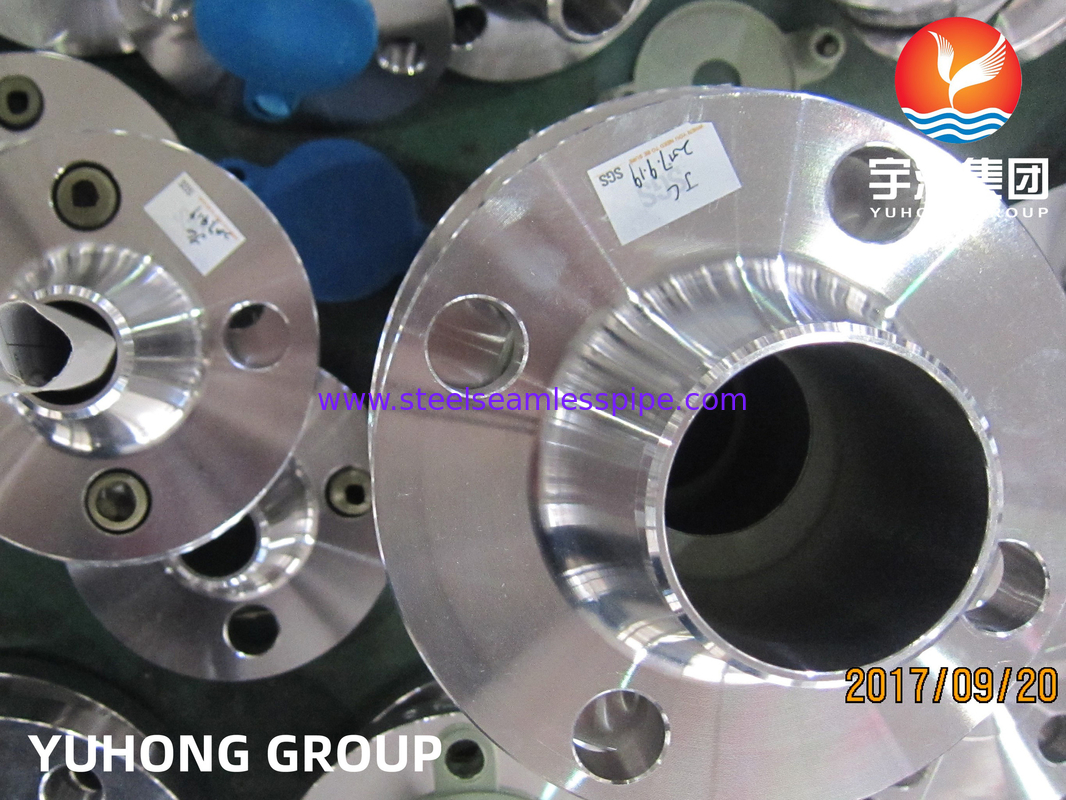

ASTM B564 NO8825 WN RF Ni-Alloy Steel Flanges Bridas
YUHONG supplies ASTM B564 NO8825 Nickel Alloy Steel Flanges in many countries with high quality.
Nickel Alloy NO8825 is a nickel-iron-chromium alloy with additions of molybdenum and copper.B564 NO8825 flange offers excellent performance, durability, and reliability, making it a preferred choice for many industrial applications.
Chemical Composition Of ASTM B564 NO8825
| Ni | Cu | Fe | Mn | C | Si | S | Cr | Al | Ti | Mo |
| 38-46 | 1.5-3 | 22min | 1max | 0.05max | 0.5max | 0.03 | 19.5-23.5 | 0.2max | 0.6-1.2 | 2.5-3.5 |
Mechanical Properties Of ASTM B564 NO8825
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 85,000 MPa – 586 | Psi – 35,000 MPa – 241 | 30% |
Advantages
1. The B564 NO8825 flange is made of a nickel-chromium-molybdenum alloy, which provides excellent resistance to corrosion, even in harsh environments.
2. This flange can withstand high temperatures without losing its structural integrity, making it suitable for applications where high heat is involved.
3.The B564 NO8825 flange has high tensile strength and excellent hardness, making it capable of withstanding high levels of stress and pressure.
4. This flange is suitable for use in various industries, including oil and gas, chemical processing, and power generation, due to its excellent mechanical properties and resistance to corrosion.
5. The B564 NO8825 flange is designed for easy installation and can be securely fastened to pipes or other fittings, ensuring a reliable and leak-free connection.
Applications
Power Generation
Food and Beverage
Chemical Processing
Petrochemical Industry
Desalination Plants
Pharmaceutical and Biotechnology,etc
