| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASME SA213 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | ASTM A213 | Material Grade: | TP310S, TP310H, TP310 |
|---|---|---|---|
| Type: | U Bend , Straight , Coil | Surface: | Mill Finished, Bright Annealed , Polished |
| High Light: | ASME SA213 Seamless U Bend Tube,TP310S Seamless Heat Exchanger Tube,Mill Finished U Bend Tube |
||

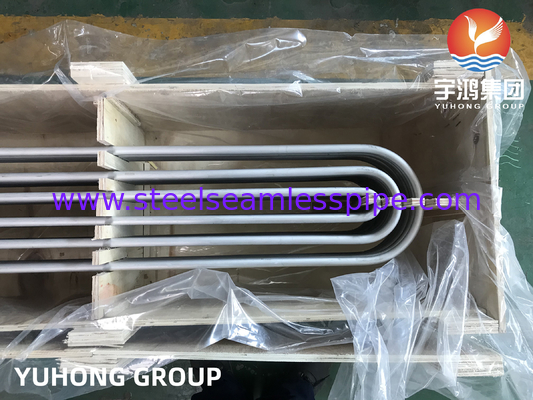

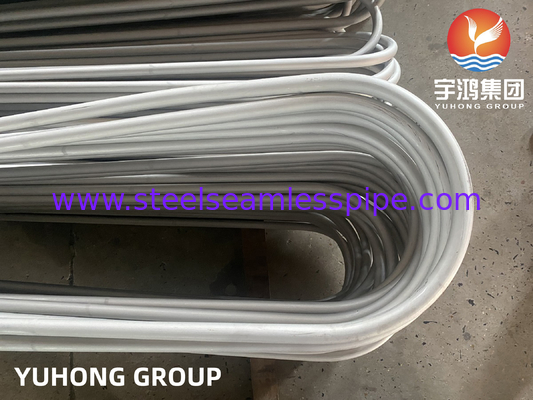

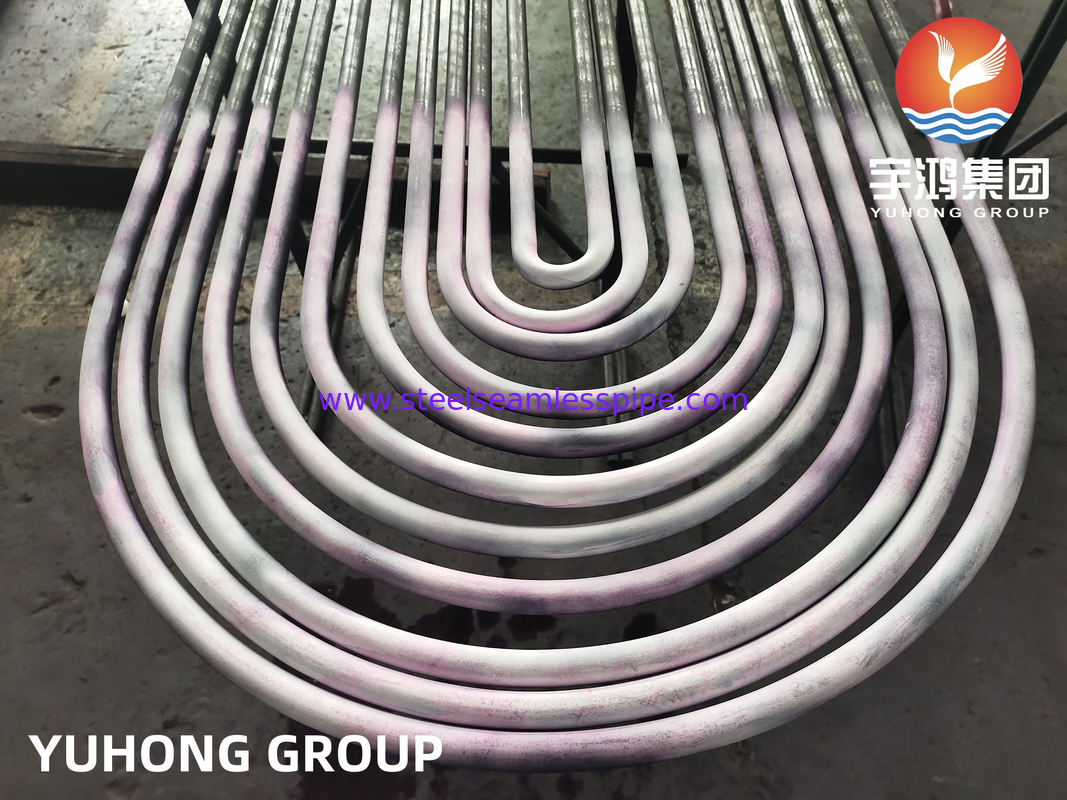

ASME SA213 TP310S Seamless U Bend Tube
ASME SA213 TP310S is a specification for seamless U bend tubes made from stainless steel grade 310S. The U bend tubes are used in various industries such as oil and gas, chemical, petrochemical, and power generation.
The TP310S grade of stainless steel is a high-temperature austenitic steel with excellent corrosion resistance and high strength. It is specifically designed for applications that require elevated temperature resistance.
The seamless U bend tubes are manufactured by cold-drawing a straight length of tube and then bending it into a U shape. The U bend tubes are widely used in heat exchangers, condensers, boilers, and other high-temperature applications.
The ASME SA213 specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes. It specifies the requirements for chemical composition, mechanical properties, and dimensions of the tubes.
The U bend tubes made from ASME SA213 TP310S stainless steel are known for their excellent resistance to oxidation and sulfidation at high temperatures. They are also highly resistant to corrosion in acidic environments.
These tubes are available in various sizes and lengths to suit different application requirements. They can be customized with different bend radii and leg lengths according to the specific needs of the project.
Overall, ASME SA213 TP310S seamless U bend tubes are a reliable choice for high-temperature applications that require excellent corrosion resistance and strength. They are widely used in industries where reliability and performance are critical.
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 - 26.00 | 0.75 max | 19.00 - 21.00 | 53.095 min |
Mechanical Behaviour:
| Element | SS 310 |
| Density | 8 |
| Melting Point | 1400 ℃ |
| Tensile Strength | 515 |
| Yield Strength (0.2%Offset) | 205 Min. |
| Elongation | 40 Min. |
| Hardness (Brinell) | 217 Max. |
