Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI |
| Model Number: | ASTM A815 WP31803-S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case Or Iron Case |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, T/T |
| Standard: | ASTM A815 | Material: | S31803,S32750,duplex Material |
|---|---|---|---|
| Dimension Standard: | B16.9 | Packing: | Plastic Cap, Ply Wooden Case |

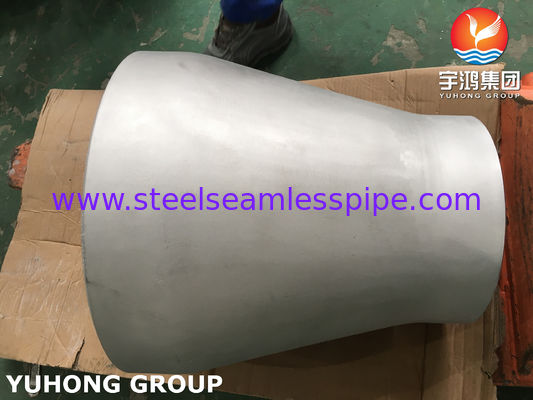

| High Light: | Thick Wall Concentric Reducer,WP S32750-S Eccentric Reducer,Super Duplex Eccentric Reducer |
||
Buttweld Fitting ASTM A815 S32750 Equal Tee Elbow Conc. Reducer B16.9
YUHONG GROUP specializes in the manufacturing of a wide range of Butt Weld Fittings, including various types such as L/R and S/R elbows, tees, concentric and eccentric reducers, reducing elbows and tees, crosses, and caps. These fittings are sourced from reliable vendors and are highly regarded for their exceptional tensile strength, durability, and precise alloy composition. They are extensively used in industries such as oil and gas, automotive, chemical, pharmaceutical, and cement.
ASTM A815 encompasses two main classes, WP and CR, of stainless steel fittings made of wrought ferritic, ferritic/austenitic, and martensitic materials, available in both seamless and welded construction. Class WP fittings are further divided into four subclasses: WP-S, WP-W, WP-WX, and WP-WU. The fittings can be made from forgings, bars, plates, or seamless/welded tubular products.
The steel used for these fittings is melted using electric furnaces, vacuum furnaces, or electric furnaces followed by vacuum or electroslag-consumable remelting. Forging or shaping operations can be carried out through methods such as hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining, or a combination of two or more of these techniques.
S32750 Equivalent Grades
| GRADE | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
S32750 Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
DIMENSIONS OF SUPER DUPLEX 2507 - UNS S32750 - F53 BUTTWELD FITTING
| Nominal PipeSize |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | - | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Applications:
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
6. Gas and Oil
