Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP304 / 1.4301 / UNS S30400 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case / Iron Case / Bundle with Plastic Cap |
| Delivery Time: | 10-90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A213 / ASME SA213 | Material Grade: | TP304 / 1.4301 / UNS S30400 |
|---|---|---|---|
| Finish: | Bright Annealing | Outer Diameter: | 6-630mm |
| Thickness: | 0.4-30mm | Length: | 6m Or As Required. |
| Surface: | Bright,Pickling | Technique: | Cold Rolled Hot Rolled |
| Shape: | Round.square.Rectangle,Roll/Coil | Applications: | Medical,industry,Decoration,Construction,Ornament |
| High Light: | TP304 Seamless Bright Annealed Tube,Stainless Steel Seamless Bright Annealed Tube,Heat Exchanger Tube ASME SA213 |
||

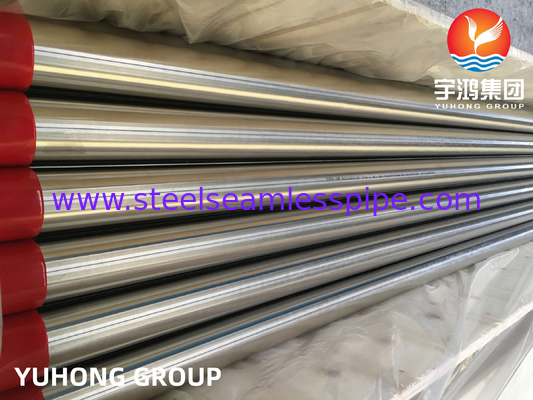

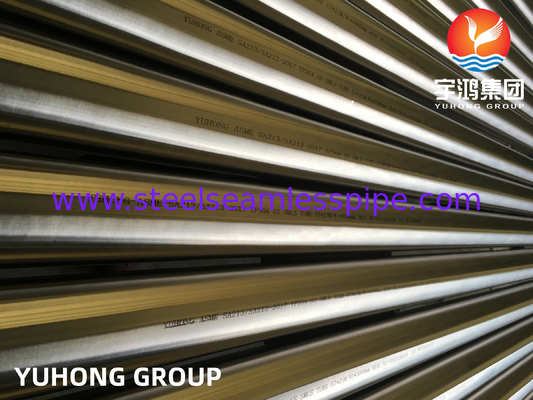

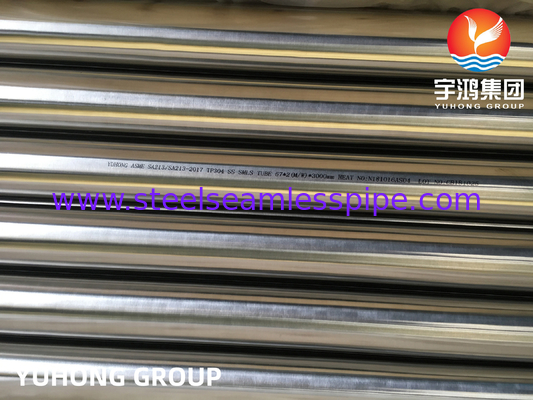

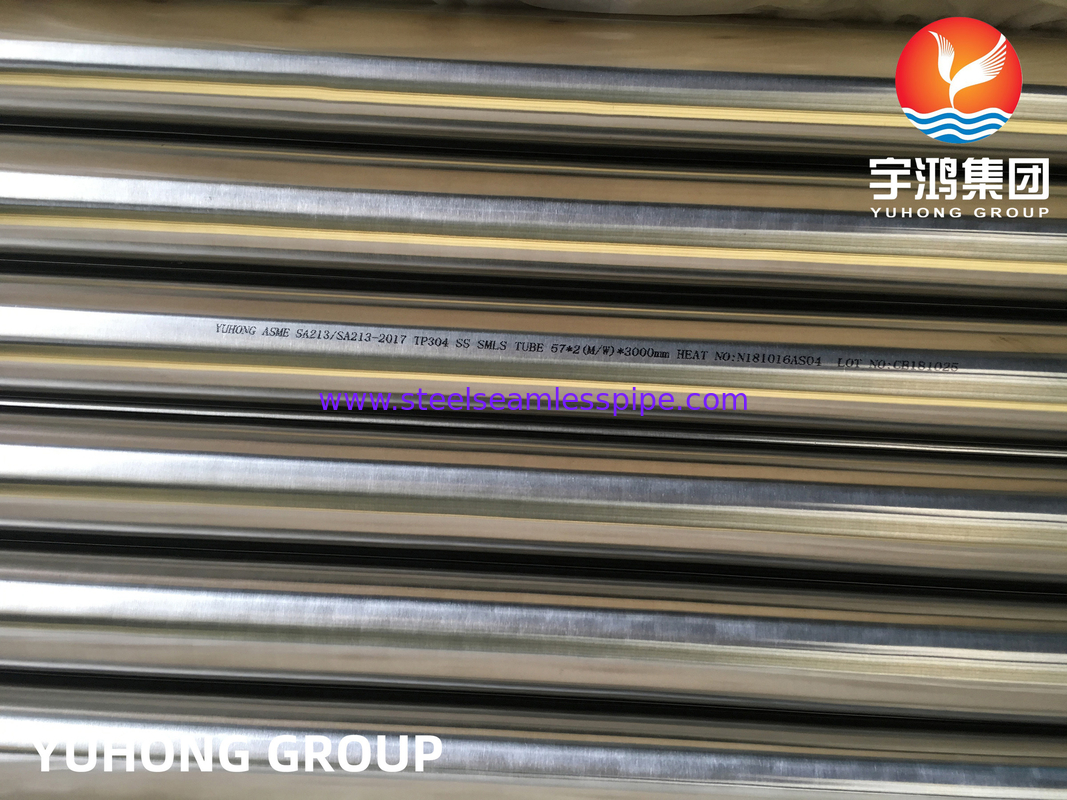

Heat Exchanger Tube ASME SA213 TP304 Stainless Steel Seamless Bright Annealed Tube
ASTM A213 TP304 Stainless Steel Seamless Bright Annealed Tube has the addition of nickel, nitrogen, manganese, which makes the steel have good weldability and formability. The corrosion resistance ability can be improved by augmenting the process. TP304 can be hardened by cold working process, retaining the strength and ductility. Our YUHONG GROUP is professional in manufacturing stainless steel seamless bright annealed tubes with high quality.
Specifications:
| Specification | ASTM A213 / ASME SA213 TP304 |
| Shapes | Round |
| Thickness Range | SCH 10 - SCH XXS |
| Surface Finish | Bright Annealed |
| Manufacturing Type | Seamless / Welded / ERW |
| Standard | GB, JIS, DIN, ASTM, AISI, EN, SUS |
| Technique | Cold rolled, Extrusion, Cold drawn, Hot rolled Tube |
| Delivery Condition | Polished, Annealed and Pickled (AP), MF, Cold Drawn, Bright Annealed (BA) |
| Ends | Plain End, Treaded, Beveled End |
Equivalent Grades:
| Grade | UNS No | Old British | Euronorm | SS | JIS | ||
| BS | En | No | Name | ||||
| SS 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Outside Diameter & Wall Thickness Permissible Variations:
| OD,mm | W.T,mm | |
| ≤25.4 | ±0.10 | +20%, 0%, OD>50,W T>5.6 AVG Wall +/-10% |
| 25.4~38.1 | ±0.15 | |
| 38.1~50.8 | ±0.2 | |
| 50.8~63.5 | ±0.25 | |
| 63.5~76.2 | ±0.3 | |
| 76.2~101.6 | ±0.38 | |
Chemical Compositions:
| C | 0.08 max |
| Mn | 2 max |
| Si | 0.75 max |
| P | 0.045 max |
| S | 0.03 max |
| Cr | 18 – 20 |
| Ni | 8 – 11 |
Mechanical Properties:
| Tensile Stress (MPa) | Yield Stress 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Limit | |
| Rockwell B (HR B) | Brinell (HB) | |||
| 515 min | 205 min | 40 min | 92 max | 201 max |
Applications:
Water Supply Systems
Paper & Pulp Industry
Power Plant
Fabrication Industry
Chemical Industry
Structural Tube
Oil and Gas Tubeline
Nuclear Industry
Petro-Chemical industry
Food and Beverages
Shell and Tube Heat Exchangers
