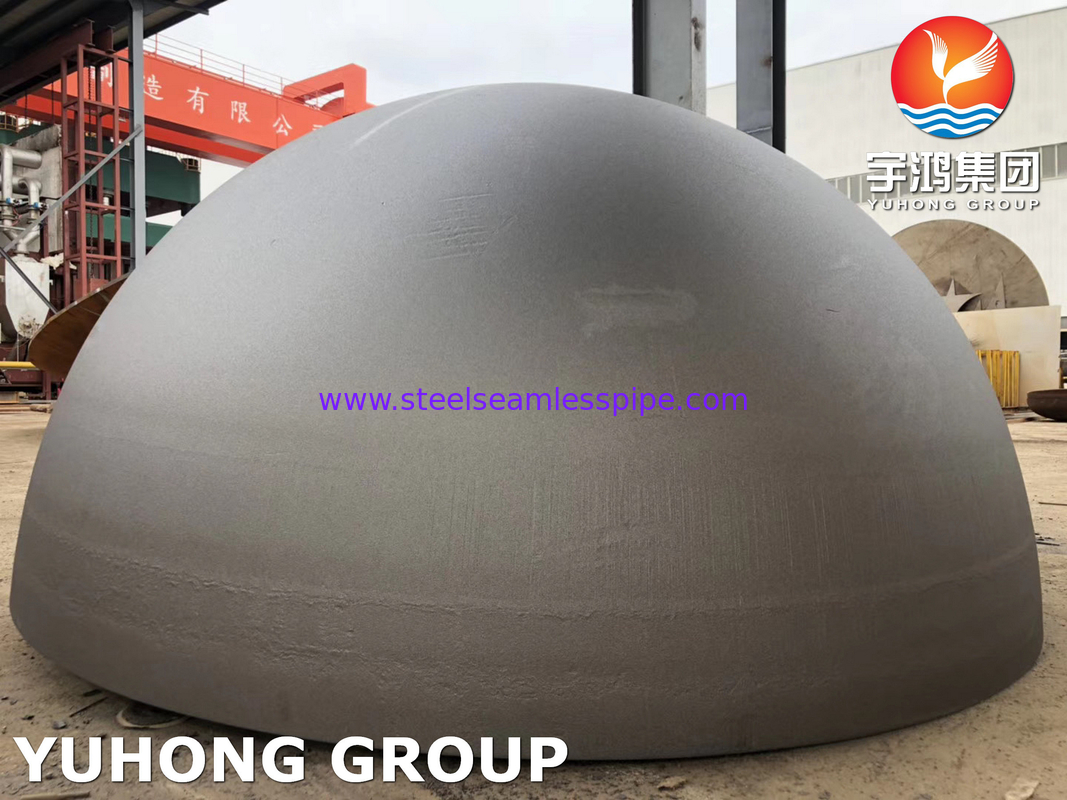

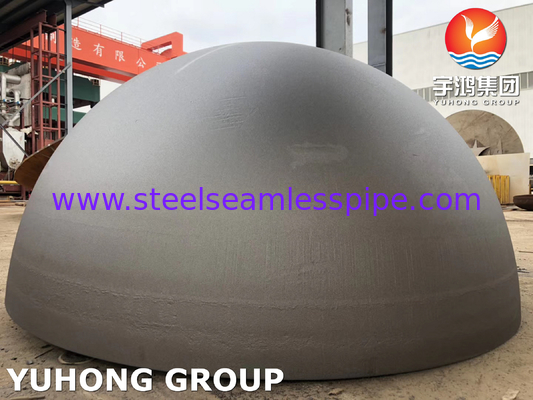

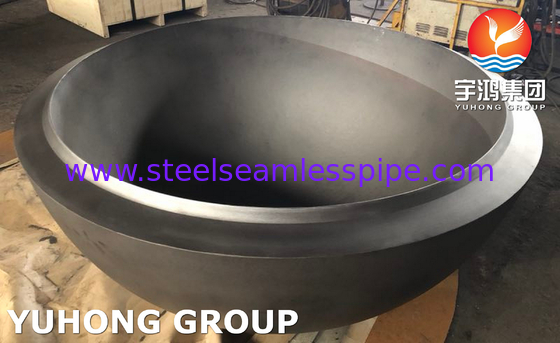

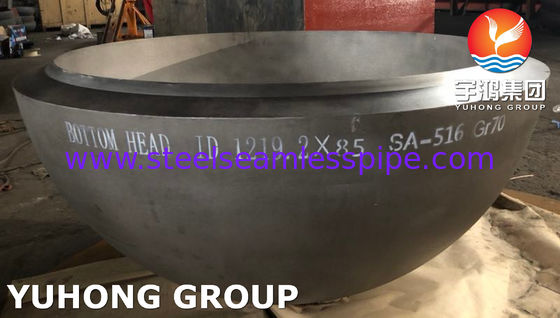

ASTM A516 GR.70 Carbon Steel Bottom Head For Heat Exchanger

ASTM A516 GR.70 Carbon Steel Bottom Head For Heat Exchanger

ASTM A516 GR.70 refers to a specific grade of carbon steel material that is commonly used for pressure vessel applications. It has excellent strength and is considered suitable for a wide range of operating temperatures.

As a bottom head material for pressure vessels, ASTM A516 GR.70 offers several advantages:

High Strength: ASTM A516 GR.70 has excellent tensile strength and yield strength properties, making it suitable for applications where high strength is required. This is advantageous for bottom heads as they need to withstand the internal pressure and various loading conditions.

Good Weldability: ASTM A516 GR.70 is known for its good weldability, allowing for efficient fabrication and easier assembly of pressure vessel components, including bottom heads. This can save time and cost during the manufacturing process.

Excellent Toughness: ASTM A516 GR.70 exhibits good toughness properties, which are essential for the bottom head of a pressure vessel. Toughness helps in withstanding sudden shocks, impacts, and potential brittle fracture, ensuring the structural integrity and safety of the vessel.

Wide Temperature Range: ASTM A516 GR.70 has a high temperature range capability, enabling it to handle a variety of operating temperatures. This is beneficial for bottom heads, which may be subjected to a wide range of temperature conditions.

Differences between ASTM A516 GR.70 and other materials commonly used as bottom head materials for pressure vessels:

ASTM A36: ASTM A516 GR.70 offers higher strength and better toughness properties compared to ASTM A36. A516 GR.70 is specifically designed for pressure vessel applications, while A36 is a more general structural steel.

ASTM A283 GR.C: ASTM A516 GR.70 has higher strength and better toughness than ASTM A283 GR.C. A516 GR.70 is also designed for pressure vessel applications, whereas A283 GR.C is primarily used for general structural purposes.

ASTM A387 GR.11: ASTM A387 GR.11 is a low alloy steel specifically designed for elevated temperature service in pressure vessels. It offers higher temperature resistance compared to ASTM A516 GR.70, making it suitable for applications with more demanding temperature conditions.

Stainless Steel (e.g., 316L, 304): Stainless steel materials offer excellent corrosion resistance and are often used in applications involving corrosive fluids. However, they may have lower strength compared to ASTM A516 GR.70 and may not be as cost-effective for certain applications.
