Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A182 F316L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | 15-35 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Material: | ASTM A182F316L | Product Name: | Tainless Steel Weld Neck Flange |
|---|---|---|---|
| Pressure: | Class 150/300/600/900/1500 | Standard: | B16.5 |
| Type: | Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange | Process: | Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment |
| Surface Treatment: | Heat Treatment,Galvanized,customize | Inspection: | Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection |
| High Light: | ASTM A182 F316L Weld Neck Flange, B16.5 Stainless Steel Weld Neck Flange | ||

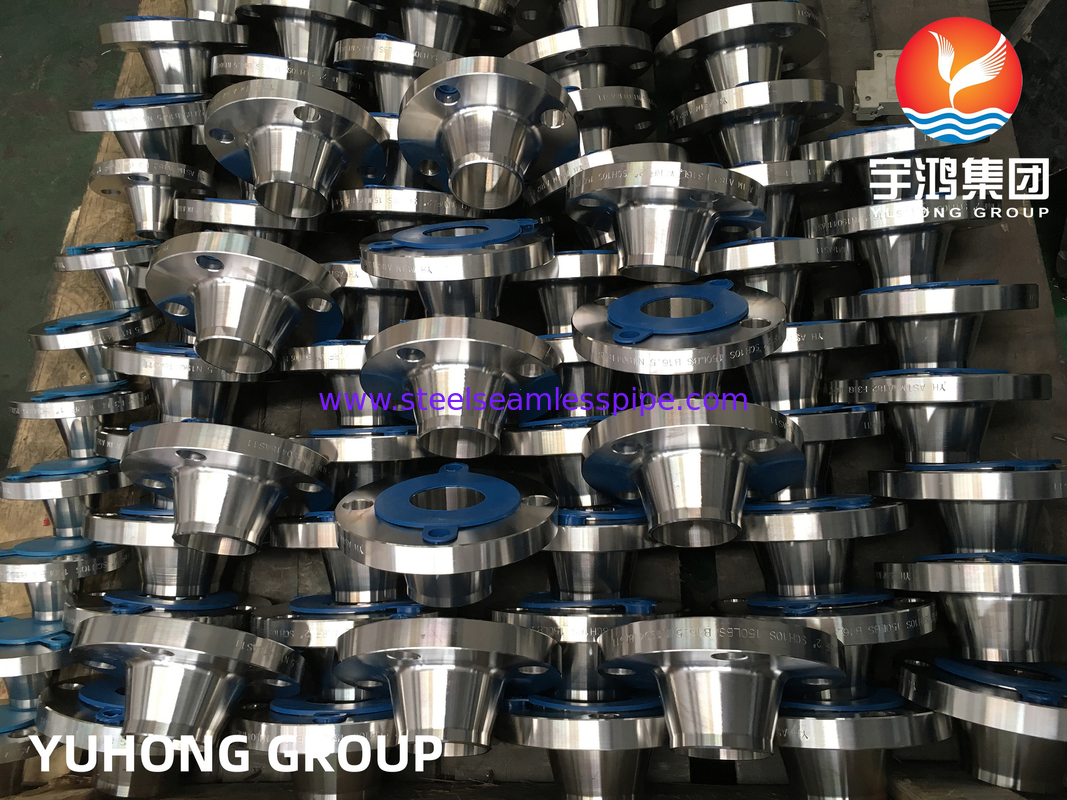

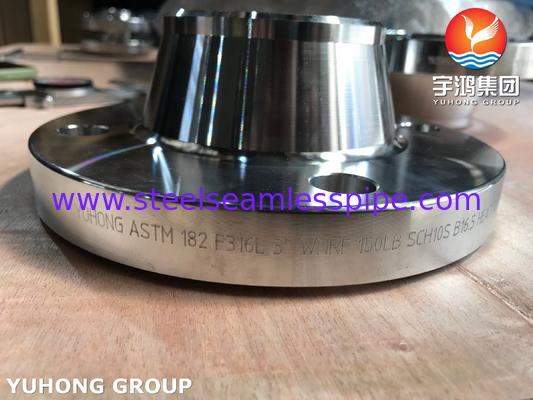

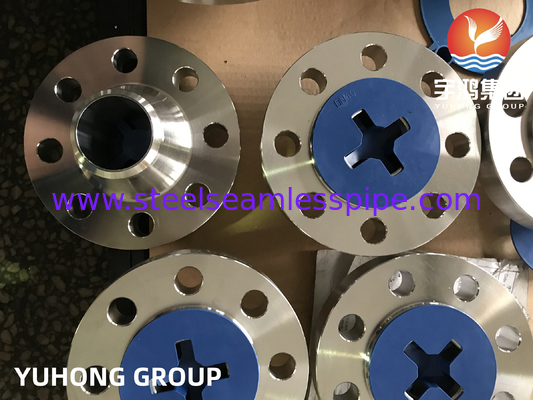

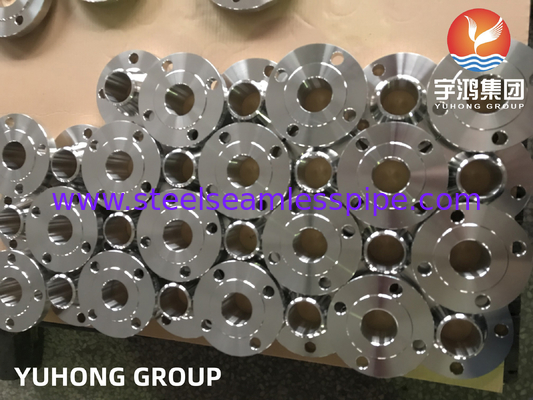

ASTM A182 / ASME SA182 F316L WNRF Flange
Overview
The ASTM A182 F316L WNRF (Weld Neck Raised Face) flange is another type of flange made from stainless steel grade 316L. It is designed to be welded to the end of a pipe or fitting for a strong and leak-proof connection. The "WNRF" designation indicates that the flange has a raised face on the sealing surface and a long tapered neck that provides reinforcement and allows for easy alignment of the bolt holes during installation. The ASTM A182 F316L WNRF flange is commonly used in high-pressure and high-temperature applications where a secure and reliable connection is required. It offers excellent corrosion resistance and mechanical properties, making it suitable for various industries such as oil and gas, chemical, and petrochemical.

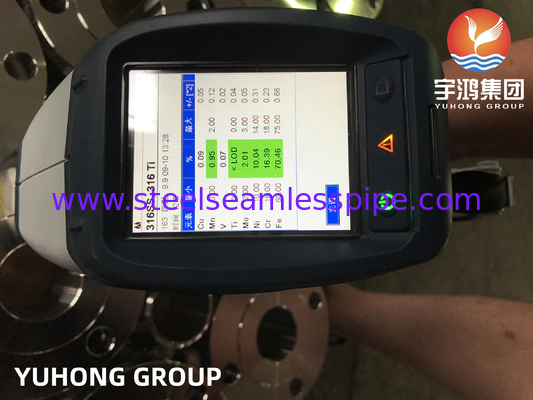

Chemical Composition of ASTM A182 F316L
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | |
| F316L | Min | 10.0 | 16.0 | 2.0 | |||||
| Max | 0.03 | 2.0 | 0.03 | 0.045 | 1.0 | 15.0 | 18.0 | 3.0 |
Mechanical Properies of ASTM A182 F316L
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) | Reduction of Area(%) |
| F316L | ≥95(655) | ≥25(170) | ≥30 | ≥50 |
Equivalent Grades of ASTM A182 F316L
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN |
| SS316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 | 03Ch17N14M3 | X2CrNiMo17-12-2 |
Uses&Application
1>.Oil and Gas Industry: The flange is used in oil refineries, offshore platforms, and pipelines for connecting pipes and equipment. Its corrosion resistance and high-pressure capabilities make it suitable for these demanding environments.
2>.Chemical Industry: The flange is utilized in chemical processing plants for connecting pipes, valves, and pumps. Its resistance to corrosive chemicals and high temperatures is crucial in ensuring safe and reliable operations.
3>.Petrochemical Industry: The flange is employed in petrochemical plants for connecting pipes, reactors, and heat exchangers. Its ability to withstand aggressive substances and extreme conditions is essential for efficient and secure operations.
4>.Pharmaceutical Industry: The flange is used in pharmaceutical manufacturing facilities where cleanliness and hygiene are critical. Its smooth surface and resistance to corrosion make it suitable for applications involving sterile processes.
5>.Food and Beverage Industry: The flange is utilized in food processing plants and breweries for connecting pipes and equipment. Its hygienic properties, including resistance to corrosion and easy cleanability, are essential in maintaining product quality and safety.
6>.Power Generation Industry: The flange is employed in power plants, including nuclear, thermal, and renewable energy facilities. Its ability to withstand high temperatures and pressures is crucial for the safe and efficient operation of power generation equipment.
