Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP-S UNS S32750 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case / Pallet |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | According To Clients' Request |
| Standard: | ASTM A815, ASME SA815 | Material Grade: | WP-S UNS S32750 |
|---|---|---|---|
| Type: | Seamless, Welded | Technics: | Buttweld |
| Size: | Customized Size,1/2''-48''(DN15-DN1200) | Thickness: | SCH10-XXS(2-60mm) |
| Product Type: | End Cap, Elbow, Tee, Reducer, Coupling, Cross, Etc. | Applications: | Construction,Gas And Oil Pipes,Air,Steam,Petroleum Gas Water |
| High Light: | Butt Weld Fittings B16.9,Super Duplex Stainless Steel End Caps,UNS S32750 End Caps |
||

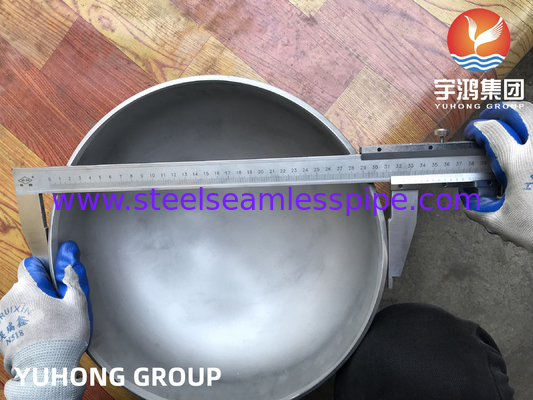

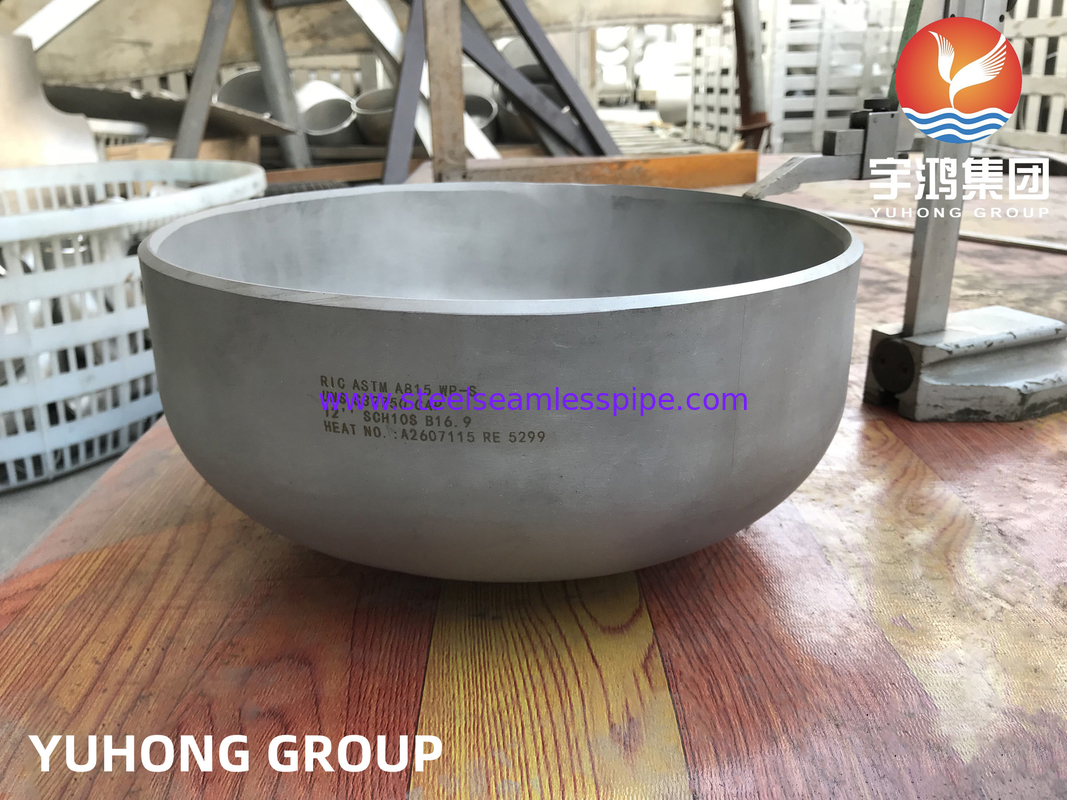

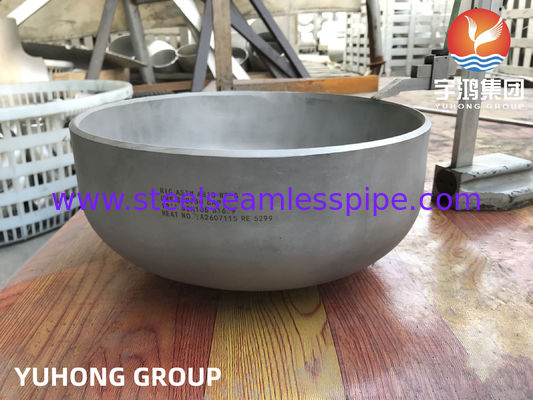

Water Treatment ASTM A815 WP-S S32750 Buttweld Super Duplex Steel Fittings, End Caps
The ASTM A815 UNS S32750 Super Duplex Stainless Steel Buttweld End Caps have more than 24% chromium in the composition along with nickel, molybdenum and other elements. YUHONG GROUP is one of the leading manufacturer and exporter of Super Duplex Steel Pipe Caps with high quality. We offer a variety of Super Duplex End Caps available in a range of specifications and sizes. Super Duplex Stainless Steel End Caps are known for their excellent corrosion resistance, and they're widely used for chemicals, marine, pharmaceuticals, mining, power generation and other applications. Super Duplex Steel is supplied in the hot worked and solution annealed condition. These End Caps possess resistance to corrosion and staining, low maintenance, and exclusive finish making them an ideal material for many applications. These SDSS End Caps which dono't readily corrode, rust or stain with water. The End Caps also provide resistance in high-temperature environments. Super Duplex SS End Caps are generally highly resistant to attack from acids.
Features:
High tensile strength
Rugged construction
Pitting-oxidation resistance
Long lastingness
Perfect dimensional accuracy
Smoothness in finishes
Specifications:
| Specifications | ASTM A815 / ASME SA815 |
| Dimensional specification | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB To 48” NB |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Types | Seamless/Welded / Fabricated |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Outside Finish | As Per Customer Requirements |
| Heat Treatment | Normalized, Normalized & Tempered |
Chemical Composition:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7800 kg/m3 | 1350 °C (2460 °F) | 116000Psi, 800Mpa | 80000Psi, 550MPa | 15 % |
Applications:
Boiler Manufacturing
Desalination Plants
Brewing Tanks
Chemical Sector
Gas & Oil Production
Power Generation
Marine Sector
Power Generation Industries
Sugar Industries
Offshore and Onshore Services
