Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A213/ASME SA213-13a TP316/316L, TP304/304L |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | PALLET,PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| STANDARD: | ASTM A213 , ASME SA213 , EN10215-6 , DIN17456 | MATERIAL: | TP304/304L/304H , TP310S/310H, TP316L/316H/316Ti ,TP317/317L , TP321/321H, TP347/347H 904L , SAF2205, SAF2507, S31803, S32750, S32760 |
|---|---|---|---|
| OD: | 3/4" (19.05), 1"(25.4) , 1-1/4"(31.75), 1-1/2"(38.1), 2" (50.8), 2-1/2"(63.5) , 3" (76.2) | WT: | 0.89,1,1.2,1.5,1.65,2,2.11MM... |
| TYPE: | SEAMLESS,WELDED | STRUCTURAL CROSS: | 1CORE---16 CORES |
| High Light: | Stainless Steel Tube TP304,Single Sheathed Core Seamless Tube,Multicore Stainless Steel Seamless Tube |
||

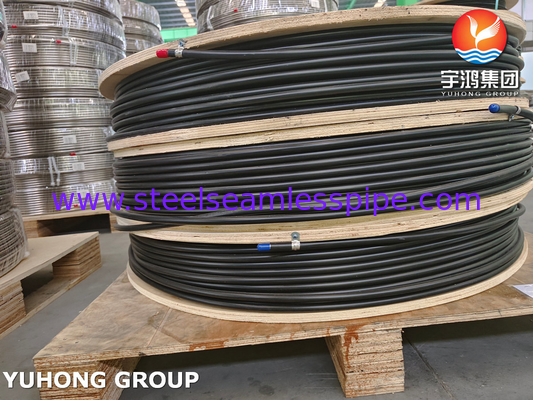

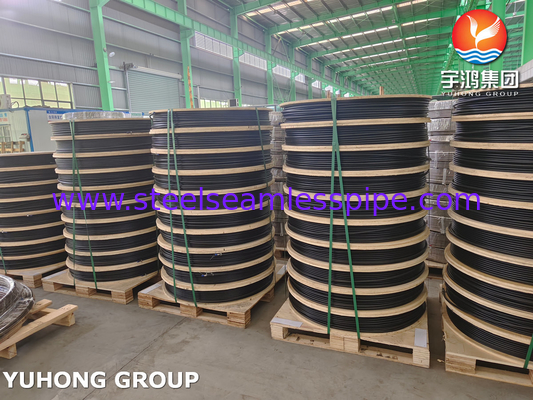

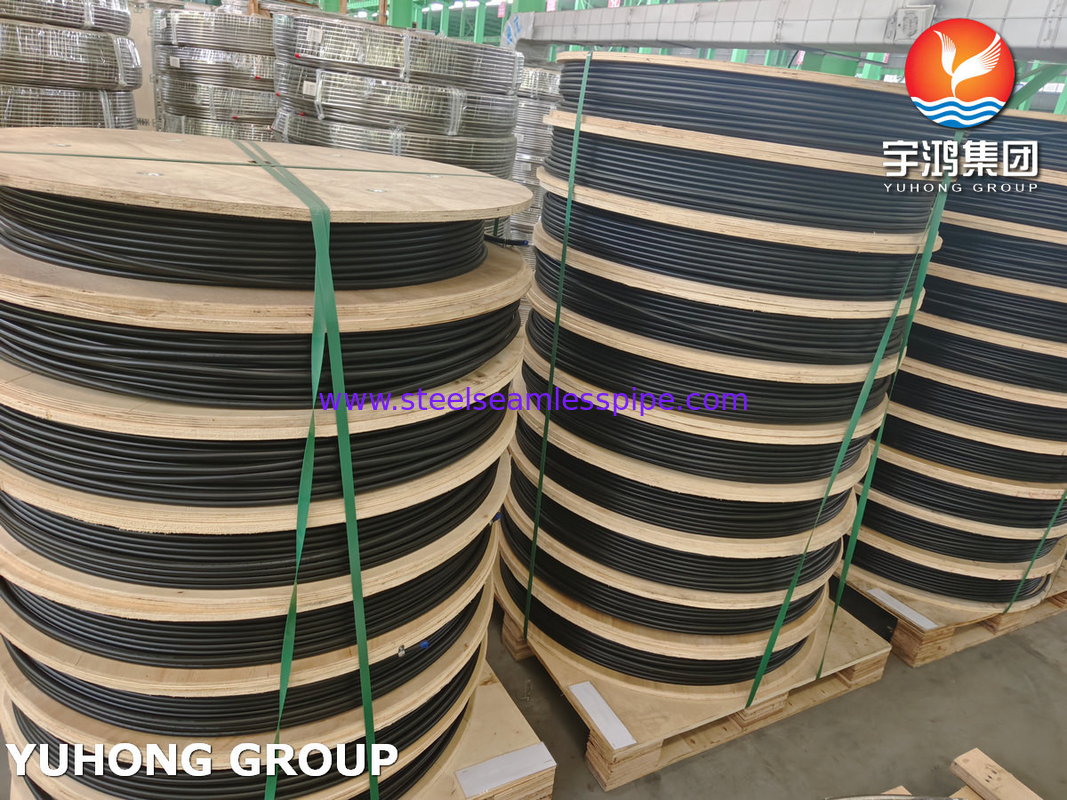

Multicore Tubing Single Sheathed Core Stainless Steel Seamless Tube TP304 PVC
Multicore tubes efficiently connect installation, maintenance and control at the same time. They are made of stainless steel, cunifer or copper.
With a total of 10 tubes in the bundle, and other tube dimensions from 6 to 15 mm or from ¼” to ½” – up to the maximum operating pressure of 440 bar.Multicore tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems.materials are ASTM TP316/ 316L, TP304/304L The multicore tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath.
For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant,weatherproof, flame retardant, corrosion and acid resistant PVC.
They are used mostly in,
| 1.Shipbuilding |
| 2.Offshore plants and for liquid, gas or electricity transport. |
