Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | B363 Ti2 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Design: | Customized | Material: | Titanium Alloy Grade 2 |
|---|---|---|---|
| Size: | Customized | Standard: | ASME |

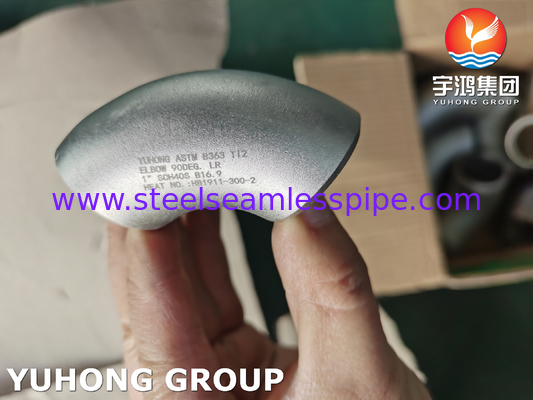

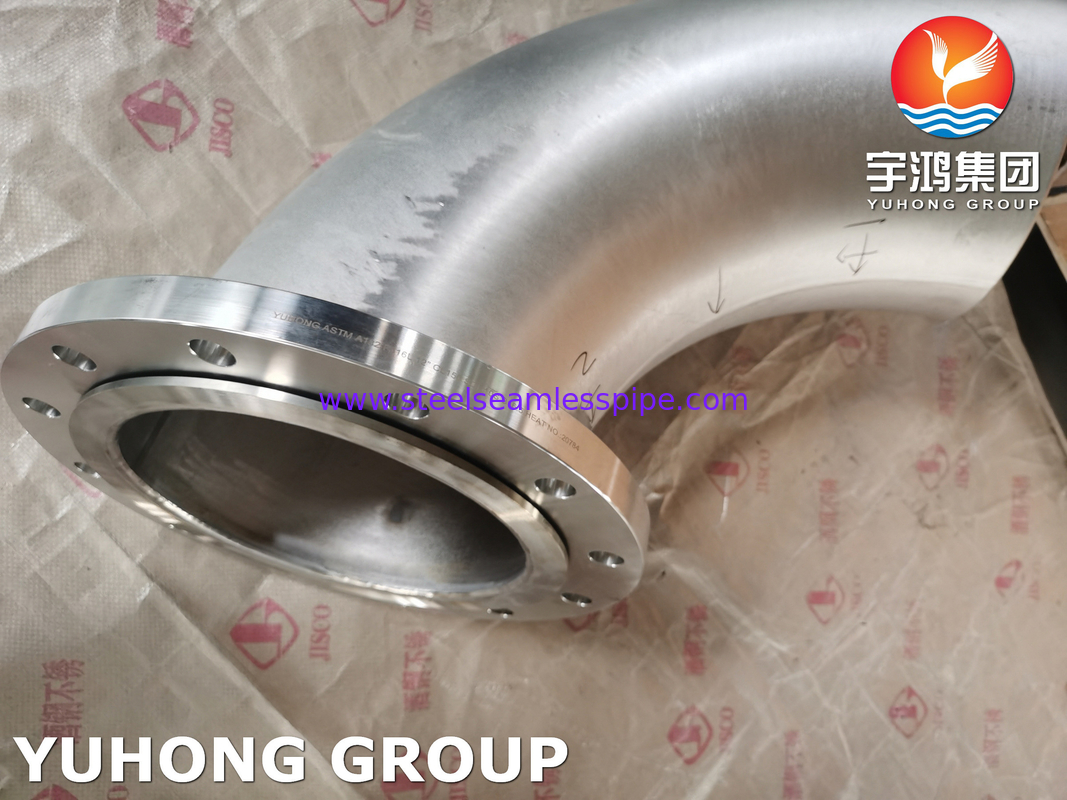

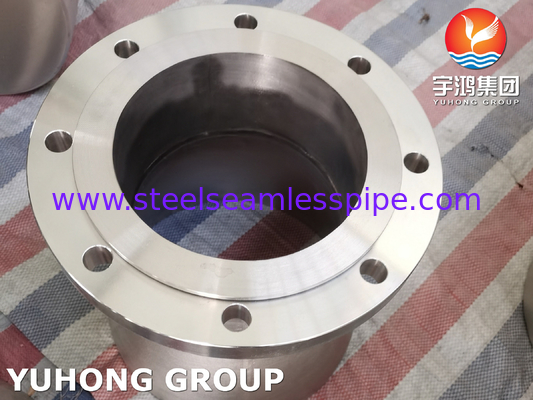

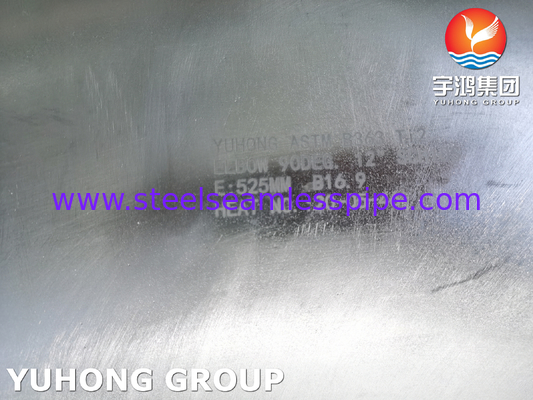

B363 Ti2 Titanium Alloy Grade 2 Butt Weld Fitting
B363 Ti2 Titanium Alloy Grade 2 Butt Weld Fitting refers to a type of fitting made from Grade 2 Titanium Alloy, which is a commercially pure titanium alloy. The fitting is designed to be used in butt welding applications, where two pipes are joined together by welding the ends together. This type of fitting is commonly used in industries such as chemical processing, oil and gas, and aerospace, where corrosion resistance, high strength, and lightweight properties are required. The B363 specification refers to the standard specification for titanium and titanium alloy fittings, which covers various types of fittings including butt weld fittings.
| Steel Grade | Composition % | |||||||
| Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals | Residuals | Titanium | |
| Max | Max | Max | Max | Max | Max Each | Max Total | ||
| Gr.2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.1 | 0.4 | Balance |
| Grade | Tensile Strength, Min | Yield Strength, 0.2% Offset | Elongation in 2 in. or 50mm Min, % | ||||
| Min | Max | ||||||
| Ksi | Mpa | Ksi | Mpa | Ksi | Mpa | ||
| Gr.2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
Standard: ASTM B363 / ASME SB363
Material: GR.1, GR.2, GR.3, GR.5, GR.9, GR.12
Type: Seamless and Welded
1, Elbow 45°, elbow 90°, elbows 180°, short radius(R=1.0) Long radius(R=1.5D)
2, Tee, cross (equal, reduce)
3, Reducing (concentric non-concentric)
4, Weld ring (stub end)
5, Cap
6, Pipe Clamp
Contact Person: Aaron Guo
Tel: 008618658525939
Fax: 0086-574-88017980
