Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2008, API 5L, API 5CT |
| Model Number: | ASTM B514 |
| Minimum Order Quantity: | 100 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case / Bundle With Plastic Cap |
| Delivery Time: | 35-55 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500tons/month |
| Product: | Welded Tubes | Materialrd: | Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B514 | Grade: | UNS NO8810 |
| Length: | Or As Required | Size: | Customized |
| Packing Details: | Ply-wooden Case/ Bundle With Plastic Cap | Application: | Heat Exchanger / Boiler /Condenser Tube |

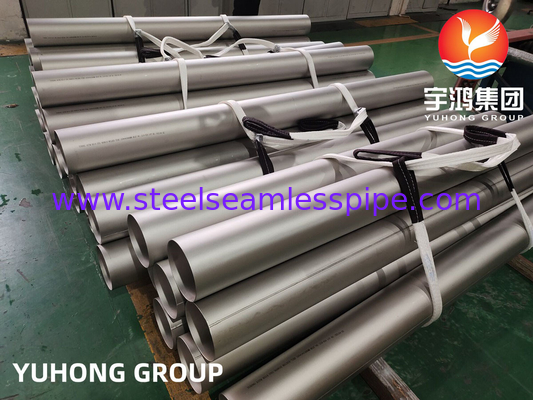

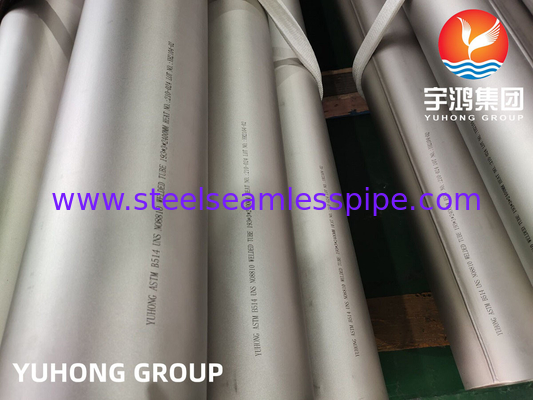

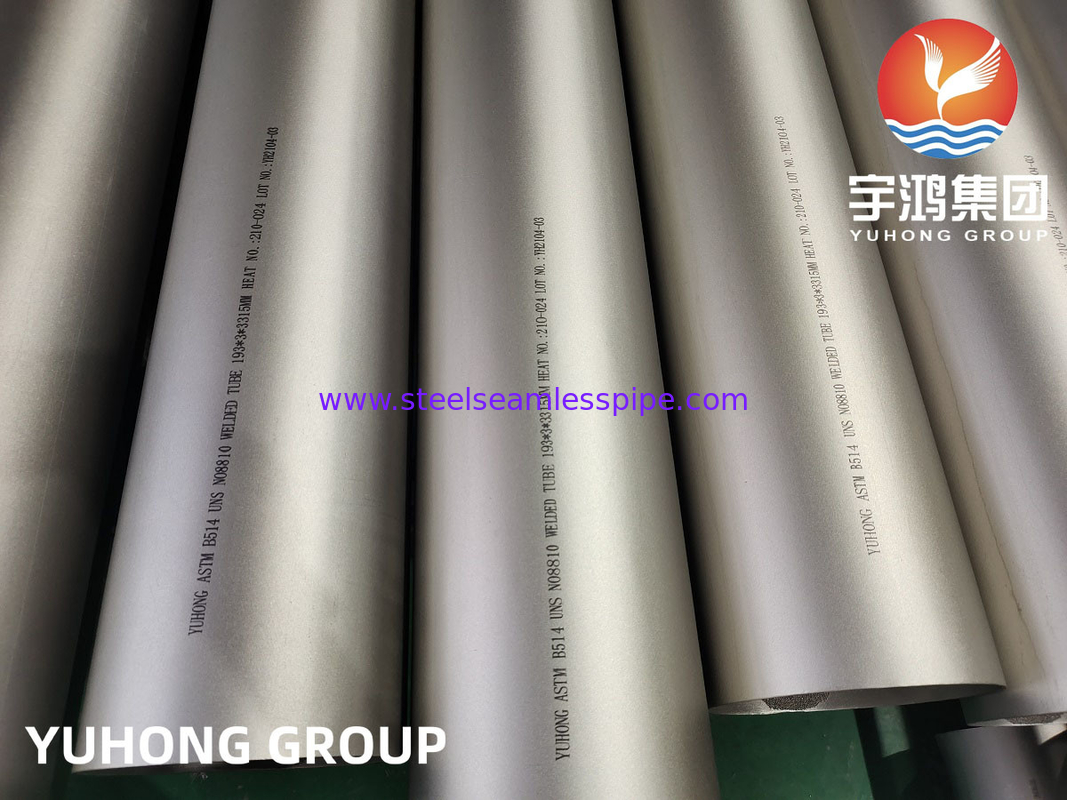

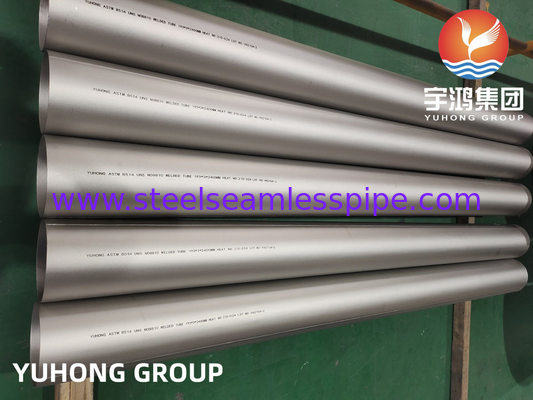

ASTM B514 NO8810 Incoloy 800H Welded Nickel Alloy Boiler Tubes
YUHONG Group offers ASTM B514 UNS NO8810 welded nickel alloy steel tubes.
ASTM B514 This specification covers nickel-iron-chromium alloys in the form of welded, cold-worked, and annealed pipe for general corrosive service and heat-resisting applications. These products are furnished in three alloys: UNS N08120, UNS N08800, and UNS N08810. Alloy UNS N08800 is employed normally in service temperatures up to and including 1100°F (593°C). Alloys UNS N08120 and UNS N08810 are employed normally in service temperatures above 1100°F where resistance to creep and rupture is required, and are annealed to develop controlled grain size for optimum properties in this temperature range.
This page talk about the material Incoloy 800H,Alloy NO8810 offers excellent resistance to oxidation and corrosion, with best joined/welded using products for high temperature situations, resistance to prolonged exposure to elevated temperatures and it has many other characteristics.
Chemical Composition %
| B514 | Ni | Cr | FeA | Mn | C | Cu | Si | S | Al | Ti |
| NO8810 | 30.0-35.0 | 19.0-23.0 | 39.5min | 1.5max | 0.05-0.10 | 0.75max | 1.0 | 0.015 | 0.15-0.60 | 0.15-0.60 |
A Iron shall be determined arithmetically by difference.
Mechanical Property NO8810
| Condition (Temper) | Tensile Strength min | Yield Strength, 0.2% offset min | Elongation |
| annealed | 65000 psi,450 MPa | 25000 psi,170 MPa | 30% |
Heat Treatment --- The final heat treatment of UNS NO8810 --- 2050°F (1121°C) minimum
Applications
Boiler
Heat Exchangers
Power Generation
Chemical Processing
Oil and Gas Industry
Petrochemical Industry
