| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP310-S |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case/ Pallet |
| Delivery Time: | 5 - 60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A403 / ASME SA403 | Material Grade: | WP310S-S / UNS S31008 |
|---|---|---|---|
| Size: | 1/2" - 48" | Schedule: | SCH 5 - SCH XXS |
| Type: | Seamless, Welded | Application: | Chemical,Steel Coiler,Commodity,Food |

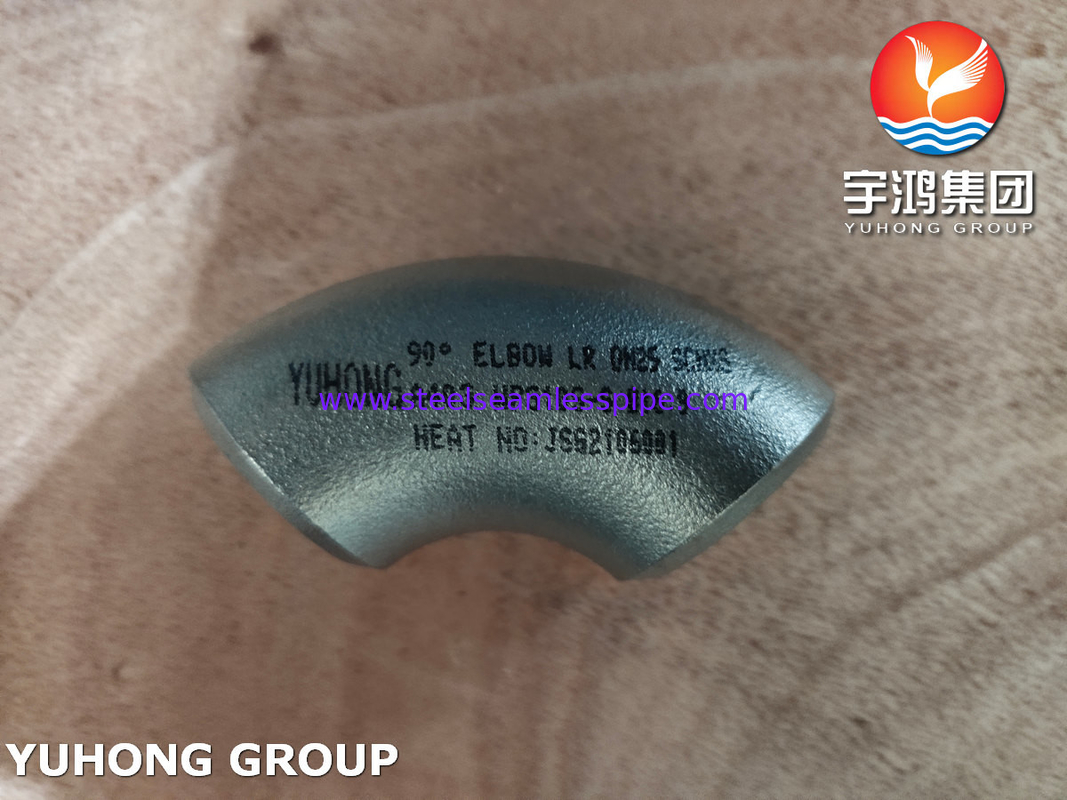

ASTM A403 WP310S-S, UNS S31008 Stainless Steel Buttweld Pipe Fittings 90 Deg Elbow B16.9
ASTM A403 WP310S stainless steel pipe elbow contains material which is the low carbon version of stainless steel 310. SS310S is less prone to sensitization in service and embrittlement. Both Stainless steel 310 and Stainless steel 310s are forged in the temperature range of 975 to 1050 °C. SS310S is used mainly for ease of fabrication and is also corrosion resistant. Stainless steel 310 and stainless steel 310S are identical only the major difference is of carbon content that reduces carbide precipitation and also helps in improving weldability. 310S stainless steel pipe fittings have oxidation resistance up to 2000° F, having moderate strength at higher temperature. It also resists hot corrosion till an extent.
Specifications:
| Specifications | ASME SA403 / ASTM A403 |
| Grade | WP310S |
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Size Range | 1/2” To 48” |
| Manufacturing Type | Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Schedule | SCH5 - SCHXXS |
| End Connection | Butt Weld |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
Equivalent Grades:
| GRADE | WERKSTOFF NR. | UNS | JIS | BS | GOST | EN |
| SS310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | X8CrNi25-21 |
Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | 0.75 max | 19.00 – 21.00 | 53.095 min |
Mechanical Properties:
| Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| 7.9 g/cm3 | 30000Psi (205MPa) | 75000Psi (515MPa) | 1402 °C (2555 °F) | 40% |
Applications:
Pharmaceuticals
Oil and Gas Processing
Seawater Desalination
Condensers
Textile machinery
Oil and gas industry
Pulp and paper industry
Power plants
Energy Industries
Modern Architecture
Water Waste System
Heat Exchanger
Dairy And Food Processing
