Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP304 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | According to Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Standard: | ASTM A403/ASME SA403; EN10253-4 | Material: | WP304,1.4301 |
|---|---|---|---|
| Type: | Stainless Steel Butt Weld | Connection: | Butt Weld |
| Size: | Customized | Thickness: | Customized |
| Packing: | Plywood Case/Pallet | Surface: | Sand Blasting |
| High Light: | Sand Blasting Butt Weld Elbow, Stainless Steel Butt Weld Elbow, WP304 Stainless Steel Elbow | ||
Overview:

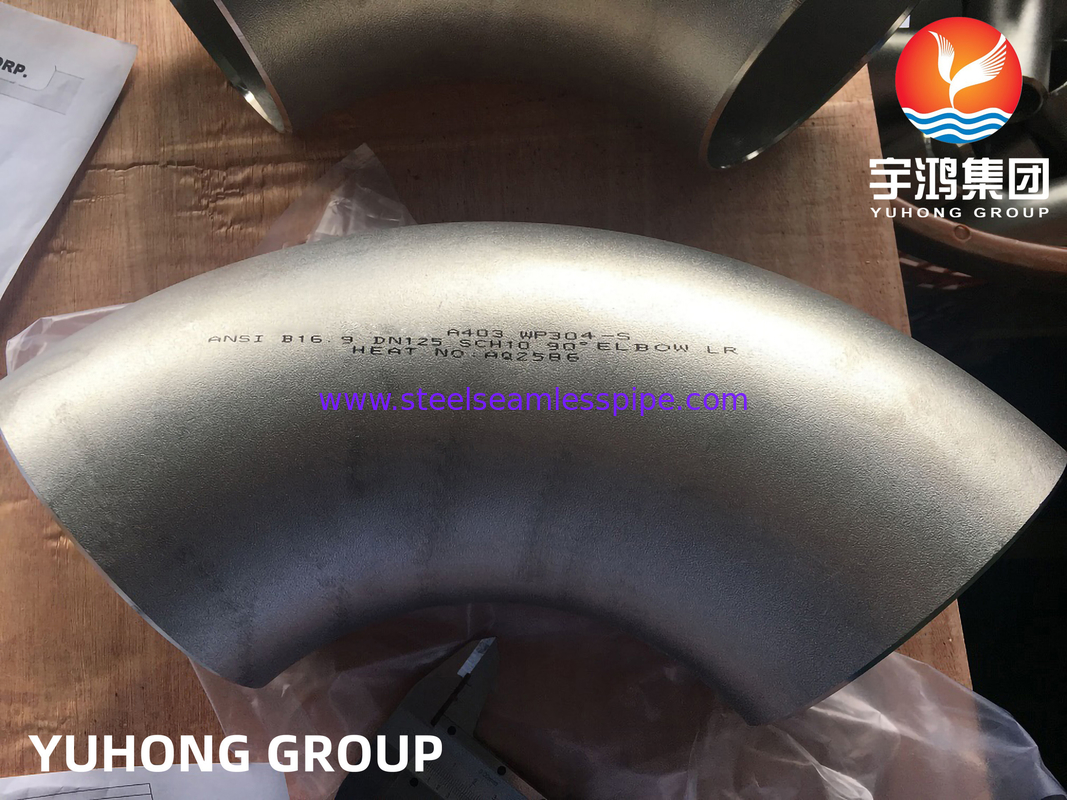

WP304 elbow refers to an elbow fitting made from stainless steel grade 304 (WP304). Stainless steel grade 304 is a commonly used austenitic stainless steel known for its excellent corrosion resistance, durability, and versatility. WP304 elbows are widely used in various industries such as petrochemical, food and beverage, pharmaceutical, and process piping systems.
These elbows are typically manufactured through the butt-welding process, where two pipes are joined together by welding. WP304 elbows are available in different sizes, ranging from small diameters for residential or commercial applications to larger diameters for industrial purposes. They come in various angles such as 45 degrees, 90 degrees, and 180 degrees to facilitate changes in direction for fluid or gas flow within a piping system.
WP304 elbows adhere to specific standards such as ASTM A403 and ASME B16.9, ensuring their dimensional accuracy, material composition, and manufacturing quality. These standards outline the requirements for design, dimensions, materials, markings, and testing procedures to ensure reliable and safe performance of WP304 elbows in various applications.
Specification:
| Standard | ASTM A403/ASME SA403; EN10253-4 |
| Material | WP304L; 1.4301 |
| Type | Buttweld Cap |
| Connection | Welding |
| Size | 1/2"-48"(DN15-DN1200) or custom size |
| Thickness | SCH10S-XXS(2-60mm) |
| Surface | Sand Blasting |
| Packing | Plywood case/Pallet |
Chemical Composition:
| Grade | Ni | Cr | Si | Mn | C | P | S | |
| WP304 | Min | 8.0 | 18.0 | |||||
| Max | 11.0 | 20.0 | 1.0 | 2.0 | 0.08 | 0.045 | 0.03 |
Mechanical Properties:
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| WP304 | ≥30(205) | ≥75(515) | ≥28 |
Applicaiton:
1.Petrochemical industry: WP304 elbows are widely used in petrochemical plants for transporting corrosive fluids and gases. They are suitable for handling various chemicals, acids, and strong alkalis commonly found in petrochemical processes.
2.Food and beverage industry: The sanitary properties of stainless steel make WP304 elbows ideal for food and beverage processing. They are used in piping systems for conveying liquids such as milk, beer, wine, and other beverages, as well as food products.
3.Water treatment plants: WP304 elbows are commonly used in water treatment facilities for handling corrosive and chemically treated water. They are resistant to rust and scale formation, making them suitable for long-term use in these demanding environments.
4.Process piping systems: WP304 elbows find applications in general process piping systems across various industries. They are utilized in power plants, refineries, chemical plants, pulp and paper mills, and other industrial settings for conveying fluids, gases, and slurries.
