Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP304 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle With Plastic Cap |
| Delivery Time: | According to Quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons/month |
| Standard: | ASTM A403/ASME SA403; EN10253-4 | Material: | WP304,1.4301 |
|---|---|---|---|
| Type: | Stainless Steel Butt Weld | Connection: | Butt Weld |
| Size: | Customized | Thickness: | Customized |
| Packing: | Plywood Case/Pallet | Surface: | Sand Blasting |
| High Light: | Sand Blasting Butt Weld Tee, Stainless Steel Butt Weld Tee, WP304 Stainless Steel Tee | ||
Overview:
The ASTM A403 specification covers the standard for wrought austenitic stainless steel pipe fittings, including tees, elbows, reducers, and more. The "WP304" mentioned specifies the grade of stainless steel used for the fittings. In this case, WP304 refers to a non-magnetic, 18-8 austenitic stainless steel containing 18% chromium and 8% nickel.

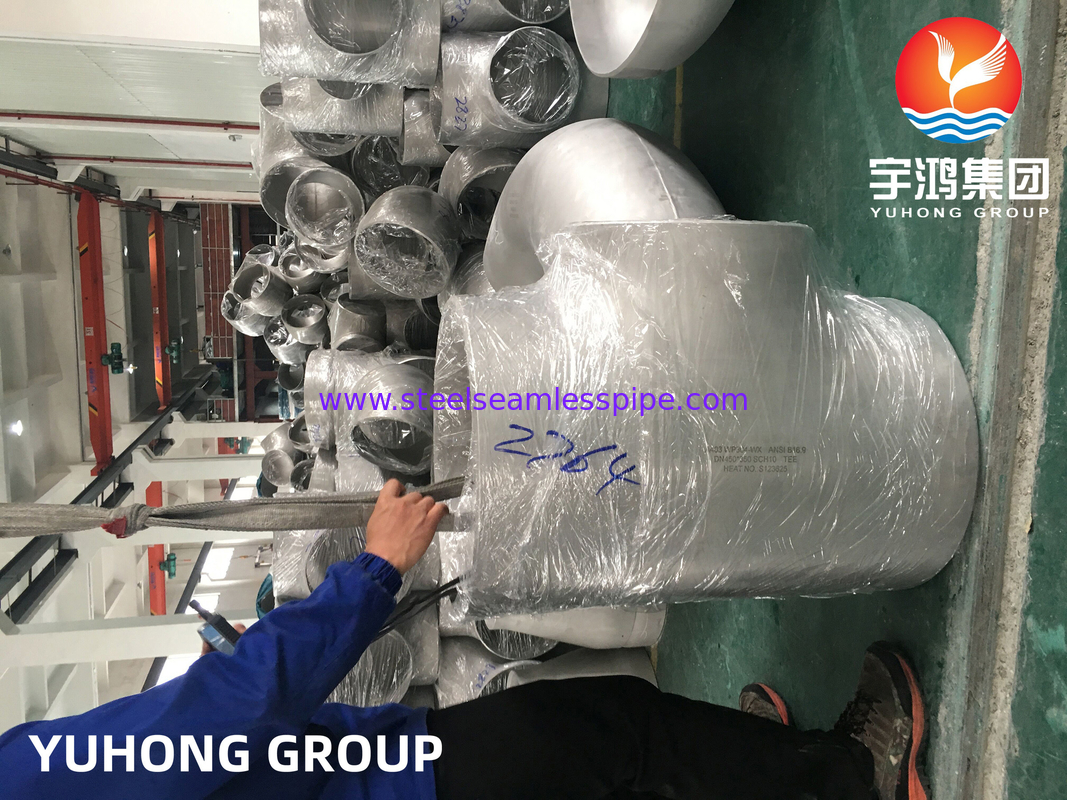

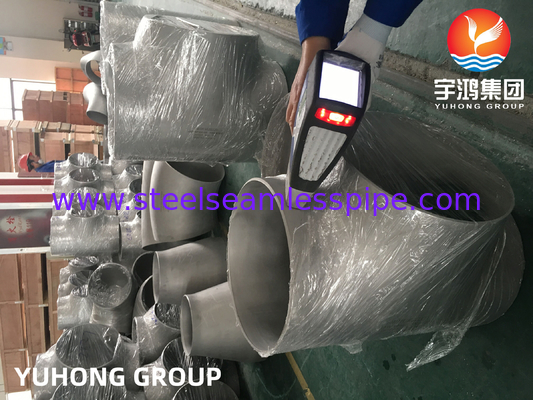

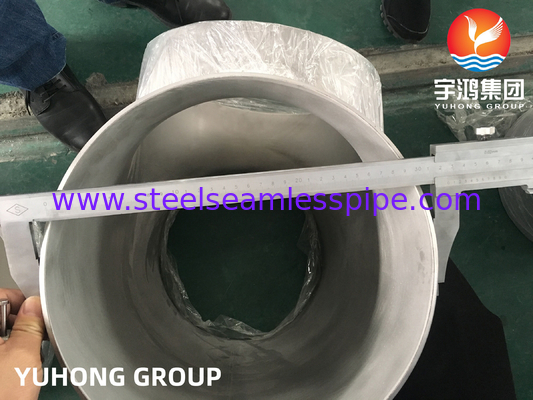

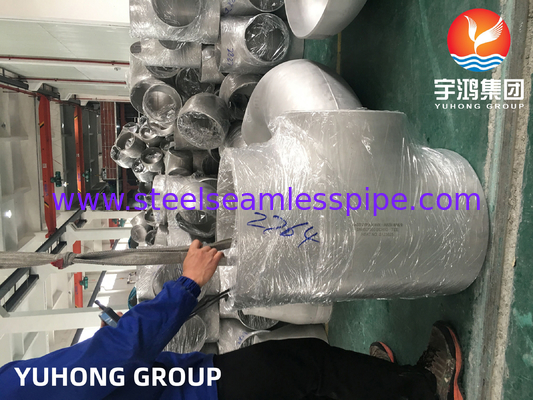

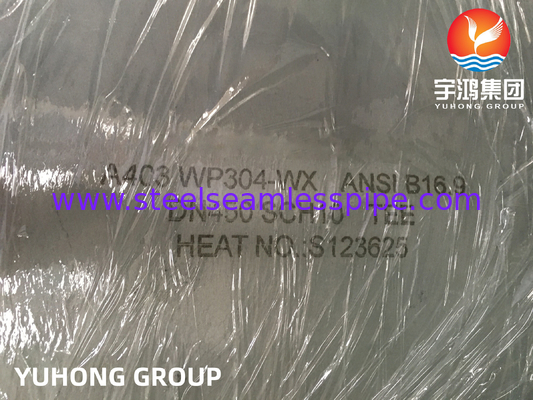

The ASTM A403 WP304 tee is a pipe fitting with a T-shaped intersection, used to connect three pipes together at 90-degree angles. It is made from ASTM A403 WP304 stainless steel, which provides excellent corrosion resistance, durability, and high-temperature strength.
Specification:
| Standard | ASTM A403/ASME SA403; EN10253-4 |
| Material | WP304L; 1.4301 |
| Type | Buttweld Cap |
| Connection | Welding |
| Size | 1/2"-48"(DN15-DN1200) or custom size |
| Thickness | SCH10S-XXS(2-60mm) |
| Surface | Sand Blasting |
| Packing | Plywood case/Pallet |
Chemical Composition:
| Grade | Ni | Cr | Si | Mn | C | P | S | |
| WP304 | Min | 8.0 | 18.0 | |||||
| Max | 11.0 | 20.0 | 1.0 | 2.0 | 0.08 | 0.045 | 0.03 |
Mechanical Properties:
| Grade | Tensile Str Ksi(Mpa) | Yield Str Ksi(Mpa) | Elongation(%) |
| WP304 | ≥30(205) | ≥75(515) | ≥28 |
Applicaiton:
1.Petrochemical and Chemical Industry: ASTM A403 WP304 tees are frequently used in pipelines for the transportation of chemicals, petroleum, and related products. They offer excellent corrosion resistance, making them suitable for harsh chemical environments.
2.Food and Beverage Industry: Because of its sanitary properties and resistance to corrosion, ASTM A403 WP304 tees are widely used in the food and beverage industry. They are commonly employed in processing lines for dairy products, beverages, and food processing.
3.Oil and Gas Industry: ASTM A403 WP304 tees are suitable for oil and gas applications, including refining and extraction processes, onshore and offshore drilling facilities, and distribution pipelines. Their corrosion resistance and strength make them reliable for handling various fluids and gases.
4.Pharmaceutical Industry: The hygienic properties and corrosion resistance of ASTM A403 WP304 tees make them suitable for pharmaceutical manufacturing processes. They are often used in pipelines carrying pharmaceutical ingredients, chemicals, and sterile fluids.
5.Water Treatment and Desalination: ASTM A403 WP304 tees are employed in water treatment plants and desalination facilities. They are resistant to corrosion from saltwater and chemicals commonly found in water treatment processes.
