Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | WP32760-S |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case/ Pallet |
| Delivery Time: | 10-60 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM A815, ASME SA815 | Material Grade: | WP32760-S |
|---|---|---|---|
| Type: | Seamless, Welded | Sizes: | 1/2" - 48" |
| Schedule: | SCH5S - SCHXXS | Applications: | Chemical, Desalination, Water Treatment, Commodity, Food Processing, Etc. |

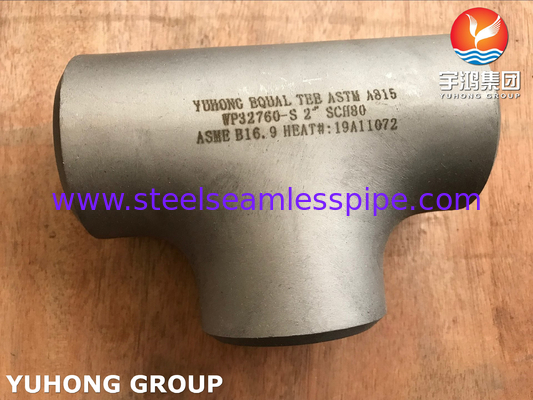

ASTM A815 WP32760-S Super Duplex Steel Equal Tee Butt Weld Fittings For Desalination
ASTM A815 WPS32760 Super Duplex Steel Pipe Fittings have high tensile strength, durability, and excellent corrosion resistive property. ASTM A815 UNS S32760 Super Duplex Pipe Fittings can be used in various industries which operate in extreme environments and temperatures.
ASTM A815 WP-S UNS S32760 Super Duplex Stainless Steel Fittings are used in applications like heat exchangers, pressure vessels, desalination plants, power industry, etc. UNS S32760 Super Duplex Stainless Steel Butt weld Fittings can withstand the uniform corrosion conditions. Due to their good strength, excellent corrosion resistance, and good durability, UNS S32760 Super Duplex Steel Pipe Fittings can be used in various industries, including oil & gas, marine, construction, and aerospace applications.
Specification:
| Specification | ASTM A815 UNS S32760 |
| Type | Butt Weld, Welded, Seamless |
| Thickness | SCH 5S - SCHXXS |
| Dimension | ANSI B16.28, MSS-SP-43 Type A, JIS B2312, ANSI B16.9, MSS-SP-43 Type B, JIS B2313 |
| Fittings Standard | DIN, EN, ISO, JIS, NPT |
| Connection Type | Threaded/ Weld/ Flange/ Clamp End / End Bell |
| ASME B16.9 Type | Elbow, Tee, Reducer, Cap, Stub End, Bend, Adapter, Wye, Cross, |
| Class | Class 150, Class 300, Class 600, Class 1500, Class 2500. |
| Size | 1/2” to 48” |
Chemical Composition:
| C | Mn | P | S | Si | Cr | Ni | Mo | N | W |
| 0.03 max | 1.00 max | 0.03 max | 0.01 max | 1 max | 24-26 | 4.5-6.5 | 3-4 | 0.25 | 0.08-0.20 |
Mechanical Properties:
| Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| 7800 kg/m3 | 80Ksi, 550MPa | 116Ksi, 800MPa | 1350 °C (2460 °F) | 15 % |
Applications:
Sugar Industry
Fertilizers Industry
Oil & Gas Industry
Chemical Industry
Gas Processing Industry
Petrochemical Industry
Power Generation Industry
Food Processing Industry
Offshore Platforms
