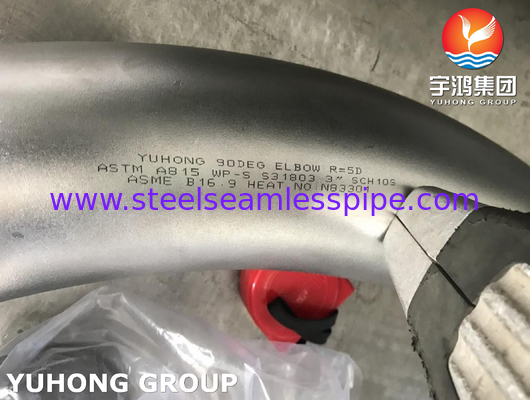

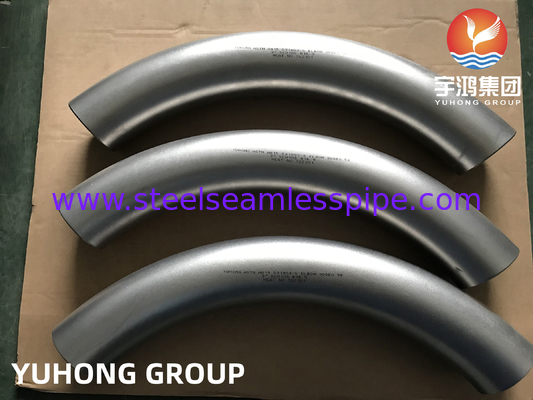

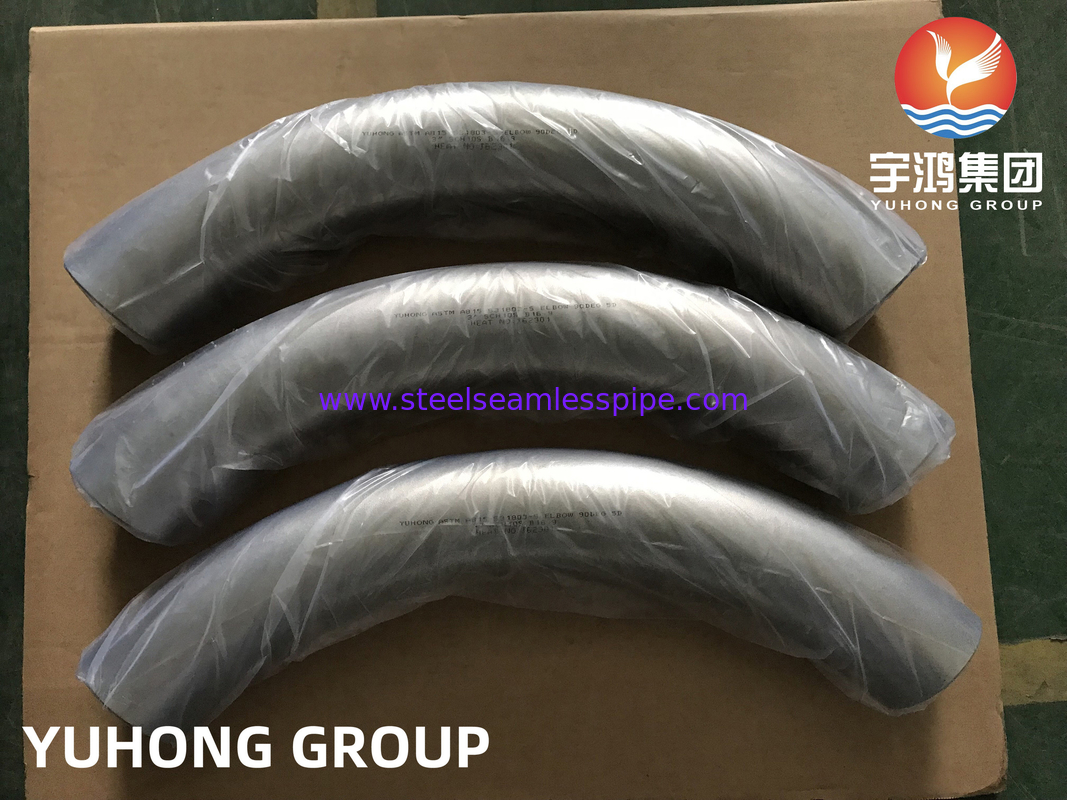

Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9

Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9

  • Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9
  • Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9
  • Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9
  • Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9
Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: ASTM A815 WP-S S31803(2205, 1.4462)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Ply-wooden Case / Pallet
Delivery Time: 5 - 60 Work Days
Payment Terms: T/T, L/C
Supply Ability: According to Clients' Requirement
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM A815, ASME SA815 Material Grade: WPS31803, 2205, 1.4462
Type: Seamless, Welded Sizes: 1/8" - 48"
Schedule: SCH5S - SCHXXS Bending Radius: 1D, 2D, 3D, 5D, 8D, 10D, Custom
Futting Type: Tees, Elbows, Caps, Stub End, Crosses, Bends, Reducers Applications: Decoration,Construction,Boiler,Oil And Gas,Electric,Etc.
Highlight:

Duplex Steel 2205 Butt Weld Elbow

,

ASTM A815 WP-S S31803 Fittings

,

90 Degree 5D Elbow B16.9

Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9



ASTM A815 WPS31803 Duplex Steel Pipe Fittings can be welded or seamless. These duplex steel fittings are made up of a corrosion resistant, strong and high temperature capable duplex steel material. The welded fittings can range from 1/8” to 48” in nominal size and the seamless fittings range from 1/8” to 24”. ASTM A815 WPS31803 Duplex Stainless Steel Buttweld Fittings are the most common form of fittings. ASME A815 WP-S S31803 Duplex Steel Butt Weld Pipe Fittings contain a combination of austenitic and ferrite stainless steel which has excellent corrosion & oxidation resistance, high tensile strength and excellent mechanical properties.



Specifications:

Specifications ASTM A815, ASME SA815
Size Range Welded: 1/8” – 48”
Seamless: 1/8” – 24”
Connection Welding

Radius of Bending

 R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D
Manufacturing Process Forge, Press, Cast, Push etc.
Thickness SCH10 - SCH XXS
Pressure Ratings 2000#, 150#, 6000#, 3000#, 9000#
End Connections: socket weld and Threaded
Type



Tee, Elbows, Pipe Cap, Stub End, Crosses, Pipe Bend, Reducers
Dimensions ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10



Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9 0



Chemical Composition:

C Mn Si P S Cr Mo Ni N Fe
0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min



Mechanical Properties:

Tensile Strength, ksi 90 min
0.2% Yield Strength, ksi 65 min
Elongation, % 25 min
Hardness [HRC] 293 max



Applications:

Food Processing

Pharmaceuticals

Chemical Processing

Piping & Tubing Systems

Oil & Gas Refineries

Petrochemicals

Sugar Mills & Distilleries

Ship Building Systems

Cement Industries

Fertilizers

Automation



Duplex Steel 2205 Fittings, ASTM A815 WP-S S31803 1.4462 Butt Weld 90 Deg 5D Elbow B16.9 1
