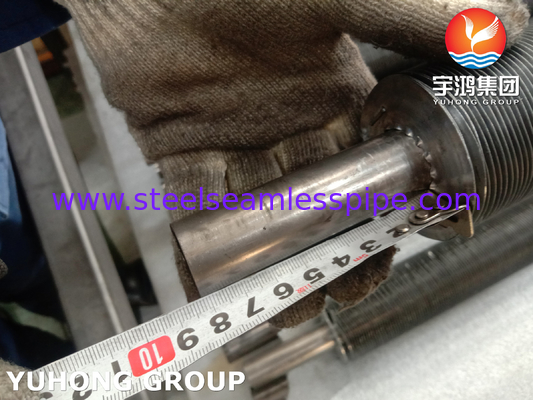

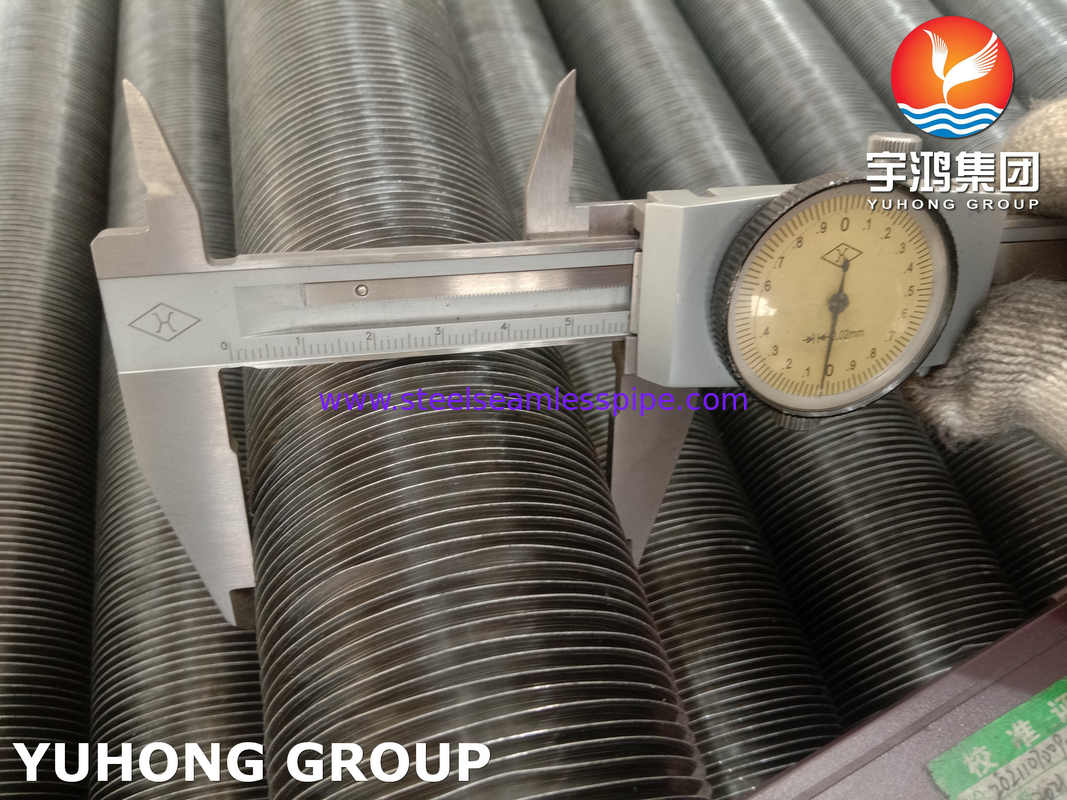

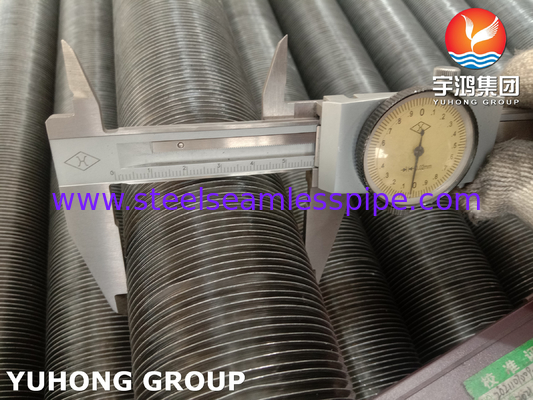

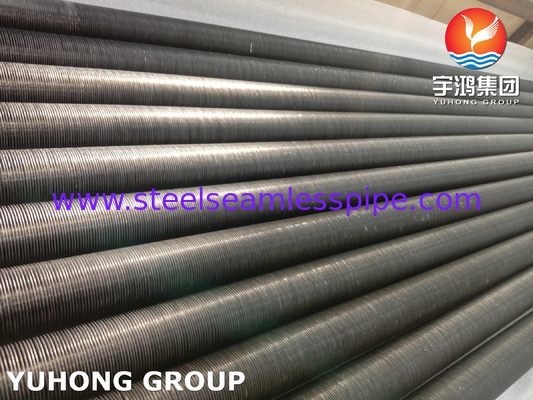

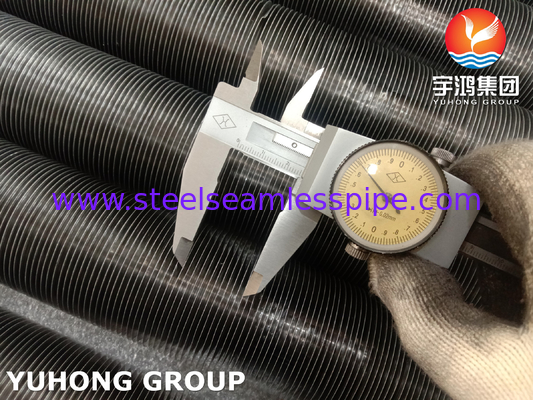

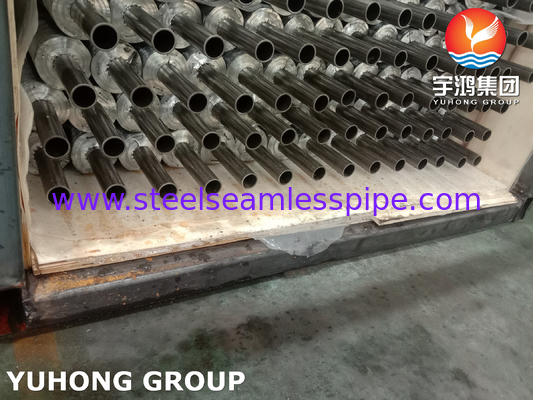

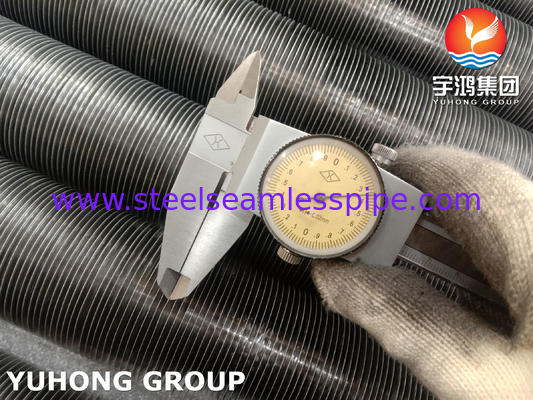

ASME B163 N04400 G Type Fin Tube Monel 400 Tube with Aluminium FIN For Air Conditing
ASME B16.3 N04400 G Type Fin Tube is a type of finned tube made from Monel 400 material with aluminum fins. Monel 400 is a nickel-copper alloy known for its excellent corrosion resistance in various environments, including seawater. The addition of aluminum fins to the tube increases the surface area, allowing for better heat transfer.
This type of finned tube is commonly used in applications where corrosion resistance and heat transfer efficiency are crucial, such as in heat exchangers and condensers. The G type fin design provides enhanced heat transfer performance compared to other fin types.
The ASME B16.3 standard specifies the dimensions, tolerances, and materials for G type fin tubes, ensuring their compatibility and quality. The N04400 designation refers to the specific grade of Monel 400 alloy used in the tube.
ASME B16.3 N04400 G Type Fin Tube with aluminum fins is a reliable and efficient solution for heat transfer applications, particularly in corrosive environments.
The base tube can also be other Nickel Alloy Steel Pipe.
Pure Nickel: Nickel 200 (B366 WPN, UNS N02200), Nickel 201 (B366 WPNL, UNS N02201)
Nickel-copper alloy Alloys Ni-Cu: Monel 400 (B366 WPNC, UNS N04400),...
Nickel-chromium, nickel-chromium-iron, nickel-chromium-molybdenum Alloys Ni-Cr, Ni-Cr-Fe et Ni-Cr-Mo: Alloy20 (B366 WP20Cb, UNS N08020), Alloy 600 (B366 WPNCI, UNS N06600), Alloy 625 (B366 WPNCMC, UNS N06625), C276 (B366 WPHC276, UNS N10276),...
Iron-nickel-chromium Alloys Fe-Ni-Cr: Alloy 800/H/HT (B366 WPNIC, WPNIC10, WPNIC11, UNS N08800, N8810, N8811), Alloy 825 (B366 WPNICMC, UNS N08825),...
Nickel-chromium-alloy Alloys Ni-Cr et Ni-Cr-Co: Alloy 75,...
Chemical Composition
| Element |
Content (%) |
| Nickel, Ni |
Remainder |
| Copper, Cu |
28-34 |
| Iron, Fe |
2.5 max |
| Manganese, Mn |
2 max |
| Silicon, Si |
0.5 max |
| Carbon, C |
0.3 max |
| Sulphur, S |
0.024 |
Physical properties of Monel 400 Alloy
| Properties |
Metric |
Imperial |
| Density |
8.8 gm/cm3 |
0.318 lb/in3 |
ASME B16.3 N04400 G Type Fin Tube is a specific type of fin tube that is used in various industrial applications. This type of fin tube is made from N04400, which is a nickel-copper alloy known for its excellent corrosion resistance and high strength.
Some of the common applications of ASME B16.3 N04400 G Type Fin Tube include:
1. Heat exchangers: ASME B16.3 N04400 G Type Fin Tube is widely used in heat exchangers due to its corrosion resistance properties. It is commonly used in applications where the fluid being heated or cooled is corrosive, such as in chemical processing plants or marine environments.
2. Power generation: ASME B16.3 N04400 G Type Fin Tube is also used in power generation plants, particularly in boilers and condensers. The corrosion resistance of this alloy makes it suitable for use in high-temperature and high-pressure environments.
3. Oil and gas industry: ASME B16.3 N04400 G Type Fin Tube is used in the oil and gas industry for various applications, including heat exchangers, condensers, and piping systems. The corrosion resistance properties of this alloy make it suitable for use in offshore platforms and other harsh environments.
4. Petrochemical industry: ASME B16.3 N04400 G Type Fin Tube is commonly used in the petrochemical industry for applications such as heat exchangers, condensers, and process piping. The high strength and corrosion resistance properties of this alloy make it suitable for handling corrosive chemicals and high-pressure conditions.
5. HVAC systems: ASME B16.3 N04400 G Type Fin Tube is also used in HVAC (heating, ventilation, and air conditioning) systems for heat transfer applications. The finned design of the tube enhances heat transfer efficiency, making it suitable for use in cooling coils and air conditioning units.
ASME B16.3 N04400 G Type Fin Tube is a versatile and reliable choice for various industrial applications where high corrosion resistance and strength are required.
