Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B407 |
| Minimum Order Quantity: | 800 kg |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case / Bundle With Plastic Cap |
| Delivery Time: | 35-70 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Product: | Seamless Tube | Material: | Nickel Alloy Steel |
|---|---|---|---|
| Standard: | ASTM B407 | Grade: | NO8800/800 |
| Type: | Round | Length: | Required By Clients |
| Third Party Inspection: | BV,SGS,ASP | Packing Details: | Ply-wooden Case / Bundle With Plastic Cap |
| High Light: | Nickel Alloy Round Tube,UNS NO8800 Seamless Steel Tubes,ASTM B407 Nickel Alloy Tube |
||

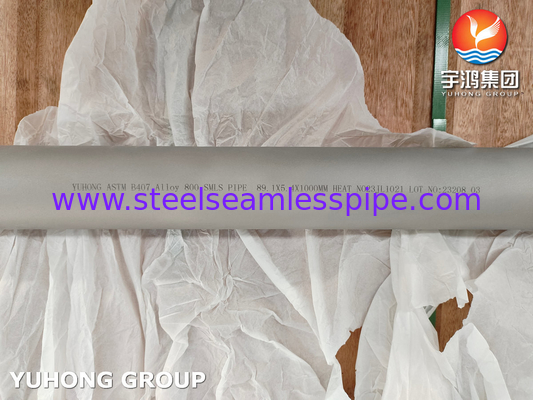

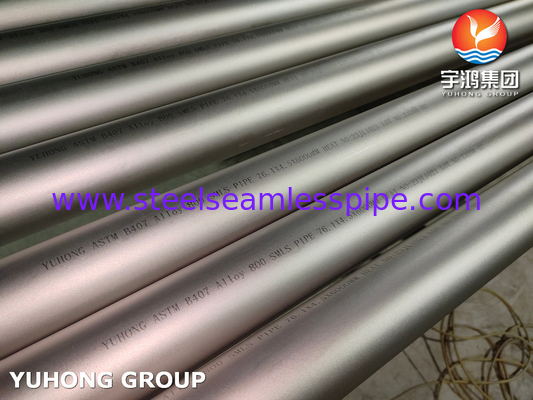

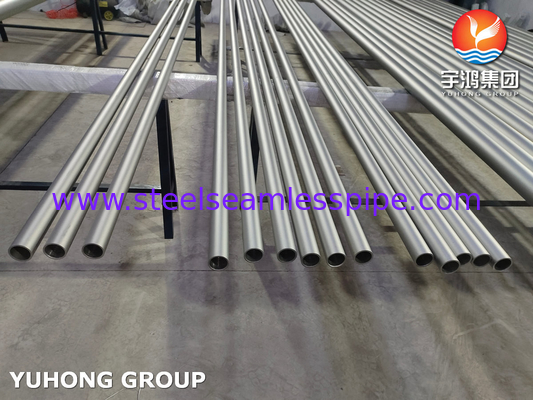

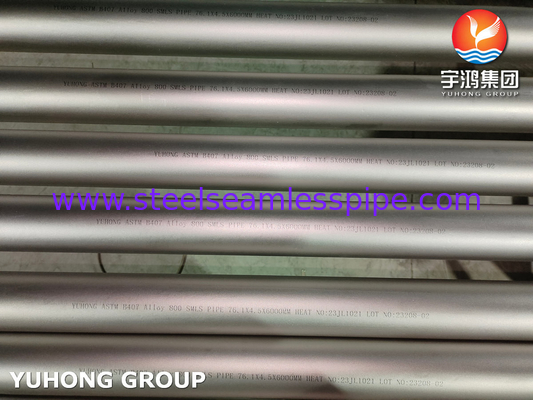

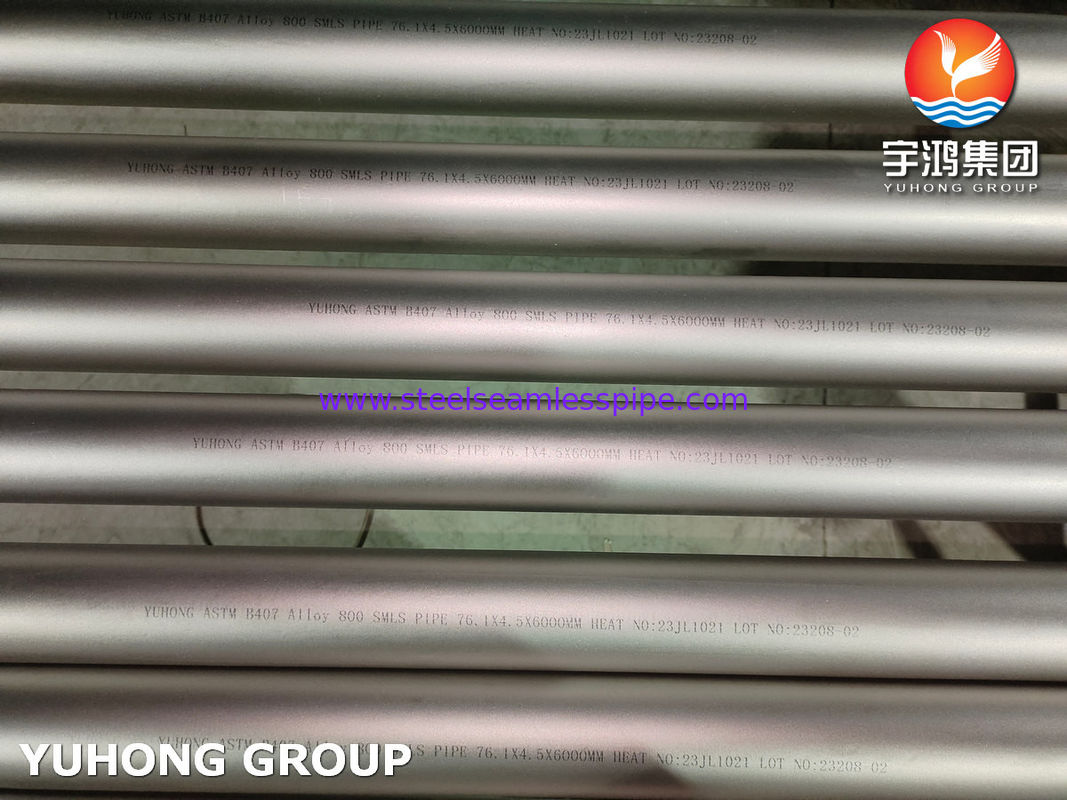

ASTM B407 Nickel Alloy UNS NO8800 Seamless Steel Tubes
ASTM B407 This specification covers UNS N08120, UNS N08800, UNS N08801, UNS N08810, UNS N08811, UNS N08890, and UNS N06811 in the form of cold-worked and hot-finished annealed seamless pipe and tube.
Alloys UNS N08800 and UNS N06811 are normally employed in service temperatures up to and including 1100°F (593°C). Alloys UNS N08120, UNS N08810, UNS N08811, and UNS N08890 are normally employed in service temperatures above 1100°F (593°C) where resistance to creep and rupture is required, and they are annealed to develop controlled grain size for optimum properties in this temperature range.
YuHong Group supplies ASTM B407 800 Nickel Alloy SMLS Tube in many years.
The Alloy 800 has good strength retention under exposure to extremely corrosive and high temperature environments along with having good creep and rupture strength.
They are widely used in chemical plants, refineries and power generation facilities, also are used in process piping, heat exchanger and furnace manufacture.
Chemical Composition
| Ni | Cr | Fe | Mn | C | Cu | Si | S | Al | Ti |
| 30-35 | 19-23 | 39.5min | 1.5 | 0.1 | 0.75 | 1.0 | 0.015 | 0.15-0.6 | 0.15-0.6 |
Mechanical Property
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 800/800H/800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 MPa – 520 | Psi – 30,000 MPa – 205 | 0.3 |
Applications Industry
Marine exhaust systems
Power station ash hoppers
Industrial furnaces
Heat-treating equipment,pressure vessels
Chemical and petrochemical processing
Heat exchanger,super-heater and re-heaters in power plants
