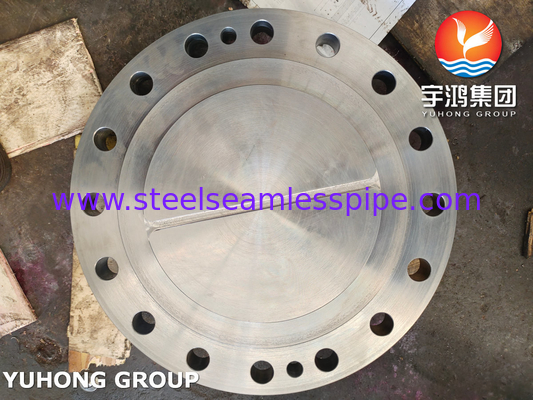

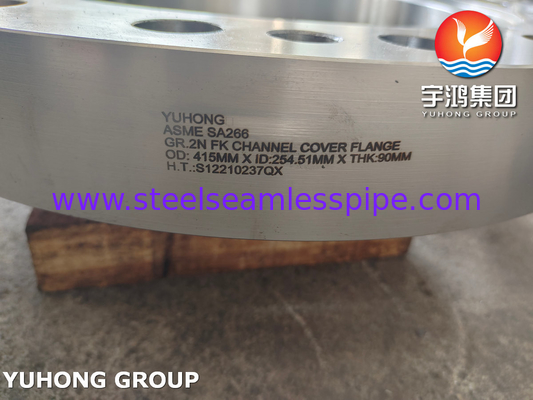

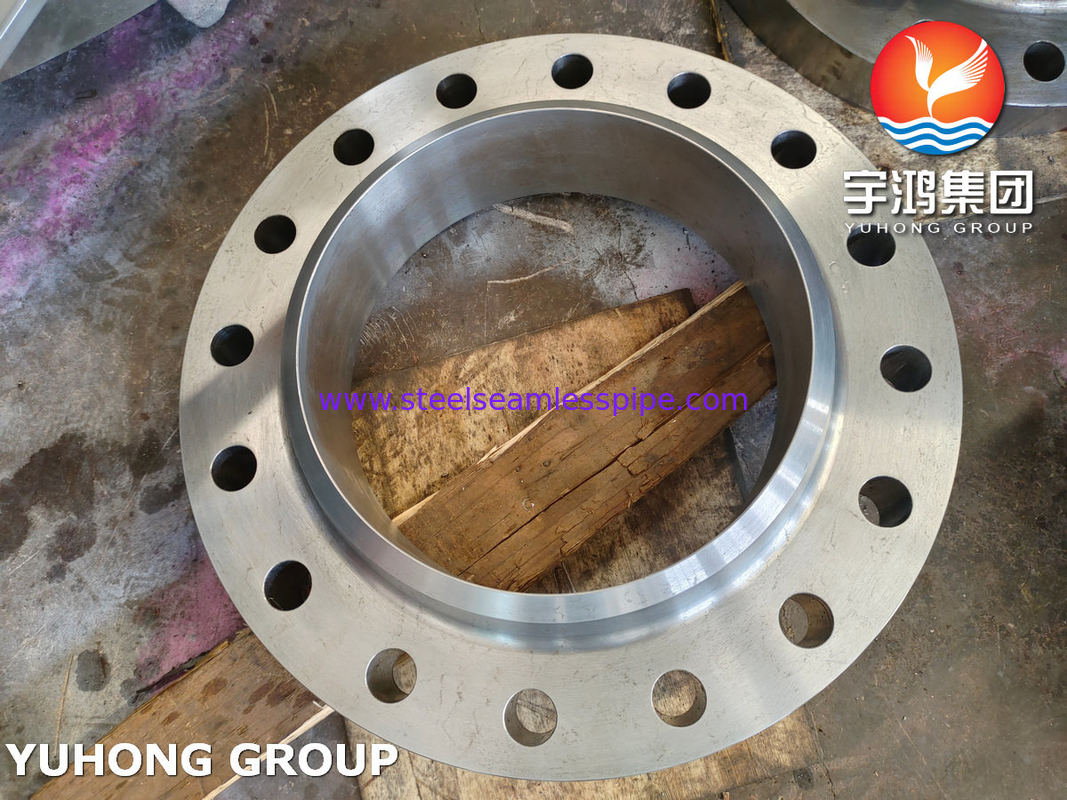

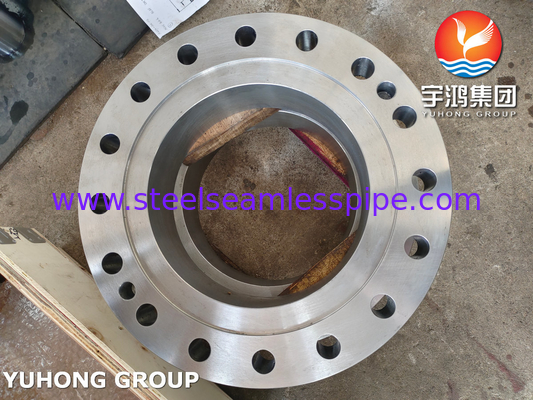

ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet

ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet

  • ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet
  • ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet
  • ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet
  • ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet
ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SA266 GR.2N
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 1-100000 USD
Packaging Details: Ply-wooden Case
Delivery Time: 15-55 days
Payment Terms: T/T, L/C
Supply Ability: 2000pcs/month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASME SA266 Material: Carbon Steel
Grade: Gr. 2N Product: Channel Cover / Shell Side Flange
Size: As Per Client's Drawing Use: Heat Exchanger, Boiler, Pressure Vessel, Chemical Reactor, Power Plant, Energy , Petrochemical
Key Words: Ppressure Vessel Services Package: Ply-wooden Case
Highlight:

Channel Cover Shell Side Flange Tubesheet

,

Side Flange Tubesheet

,

ASME SA266 Flange Tube Sheet



ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet





YUHONG supplies ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet and we sell these products with high quality in many years.



ASME SA266 This specification covers four grades of carbon steel forgings for boilers, pressure vessels, and associated equipment.



Chemical Composition



Grade C Mn P S Si
Cr. 2N 0.30 0.40-1.05 0.025 0.025 0.15-0.35







Mechanical Properties



Tensile Strength Yield Strength (0.2%Offset) Elongation
ksi : 75-95 , MPa : 485-655 ksi : 36 , MPa : 250 33 %







ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet 0



Brinell Hardness Limits



137 to 197



Application



Chemical processing

Maritime applications

Oil and gas industries

​Pharmaceutical

Dairy industries

Heat exchanger,etc



ASME SA266 Gr. 2N Channel Cover Shell Side Flange Tubesheet 1
