B564 N04400 Weld Neck Raised Face Nickel Copper Alloy Flange for Mining Industry

Product Details:

Place of Origin:	China
Brand Name:	Yuhong
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	C276, MONEL 400, INCONEL 600, INCONEL 625, INCOLOY 800, INCOLOY 825,

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	PLY-WOODEN CASE,PALLET
Delivery Time:	7DAYS
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	800 Tons/ month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Material:	Nickel Alloy	Type:	Weld Neck Raised Face
Flanges Size:	1/8" NB TO 48" NB	Class:	#150, #300, #400, #600, #900, #1500, #2500
Test:	Ultrasonic Tests, Liquid Penetrant Inspection
Highlight:	Mining Industry Ring Face Flange , Weld Neck Ring Face Flange , ASTM B564 Weld Neck Flange

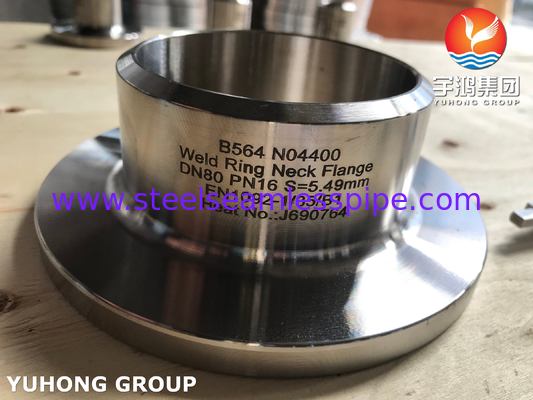

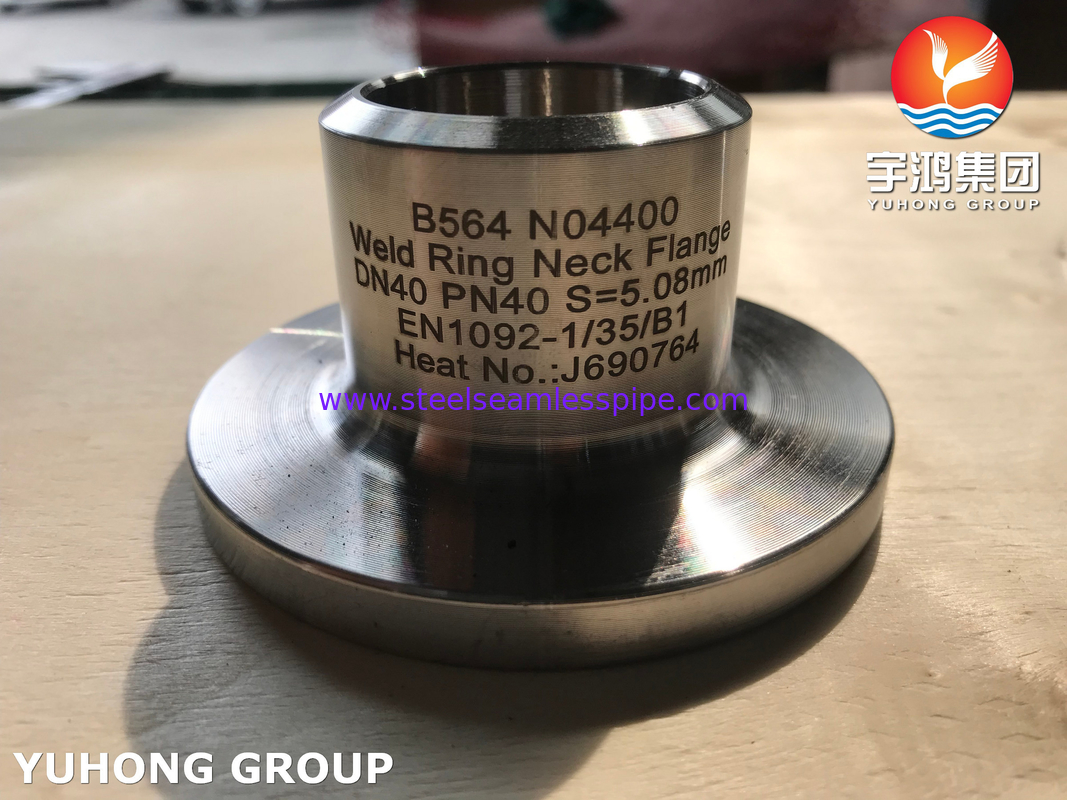

B564 N04400 Weld Neck Raised Face Nickel Copper Alloy Flange for Mining Industry

Monel 400 weld-neck flanges are a nickel-copper alloy (approx. 67% nickel - 23% copper) that is resistant to high-temperature seawater and steam, as well as salt and corrosive solutions. Alloy 400 is a solid solution alloy that can only be hardened by cold working. This nickel alloy has good corrosion resistance, weldability and high strength. It has a low corrosion rate in fast-flowing brackish or seawater, excellent resistance to stress corrosion cracking in most freshwaters, and is also resistant to a wide range of corrosive conditions, making it widely used in marine and other non-oxidizing chloride solutions. This nickel alloy is particularly resistant to hydrochloric and hydrofluoric acids after degassing. Due to the high copper content, Alloy 400 is quickly attacked by nitric acid and ammonia systems.

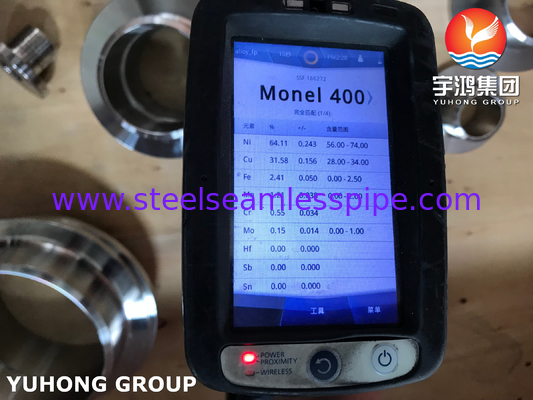

Chemical Composition

Element	Content (%)
Nickel, Ni	Remainder
Copper, Cu	28-34
Iron, Fe	2.5 max
Manganese, Mn	2 max
Silicon, Si	0.5 max
Carbon, C	0.3 max
Sulphur, S	0.024

Weld Neck Flanges
Weld Neck Flanges are a very common type of pipe flanges used in various industrial applications. They have a long tapered hub and are often used for high pressure applications.

We are a fast growing organization, engaged in manufacturing, supply and export of welding neck flanges, industrial weld neck flanges and forged flanges. Our weld neck flanges are drilled with the wall thickness of flange having the same dimensions of pipe. Flanges for heavier pipes have smaller bore, while flanges of lighter pipes have larger bore. These weld neck flanges, industrial weld neck flanges, forged flanges are normally used for high-pressure, cold or hot temperature.

B564 N04400 Weld Neck Raised Face Nickel Copper Alloy Flange for Mining Industry 0

Stainless Steel WNRF Flanges: A182, GR F304, F309S, F316, F321, F347, F347H

Carbon Steel WNRF Flanges: A105

Alloy Steel WNRF Flanges : A182, GR F1, F11, F22, F5, F9, F91

Nickel Alloy WNRF Flanges : B564, GR N02200, N06022, N04400, N06625, N08811, N06600

Copper Alloy WNRF Flanges: SB151, GR C70600, C71500, C71520

WNRF Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10

Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B

Applications

Marine installations, pumps, valves and piping systems for seawater applications
Chemical plant equipment
Aerospace applications
Musical instruments
Heat exchangers
High Pressure Applications
Offshore Applications
Onshore applications
Welded pressure vessels for storage of cryogenic substances
