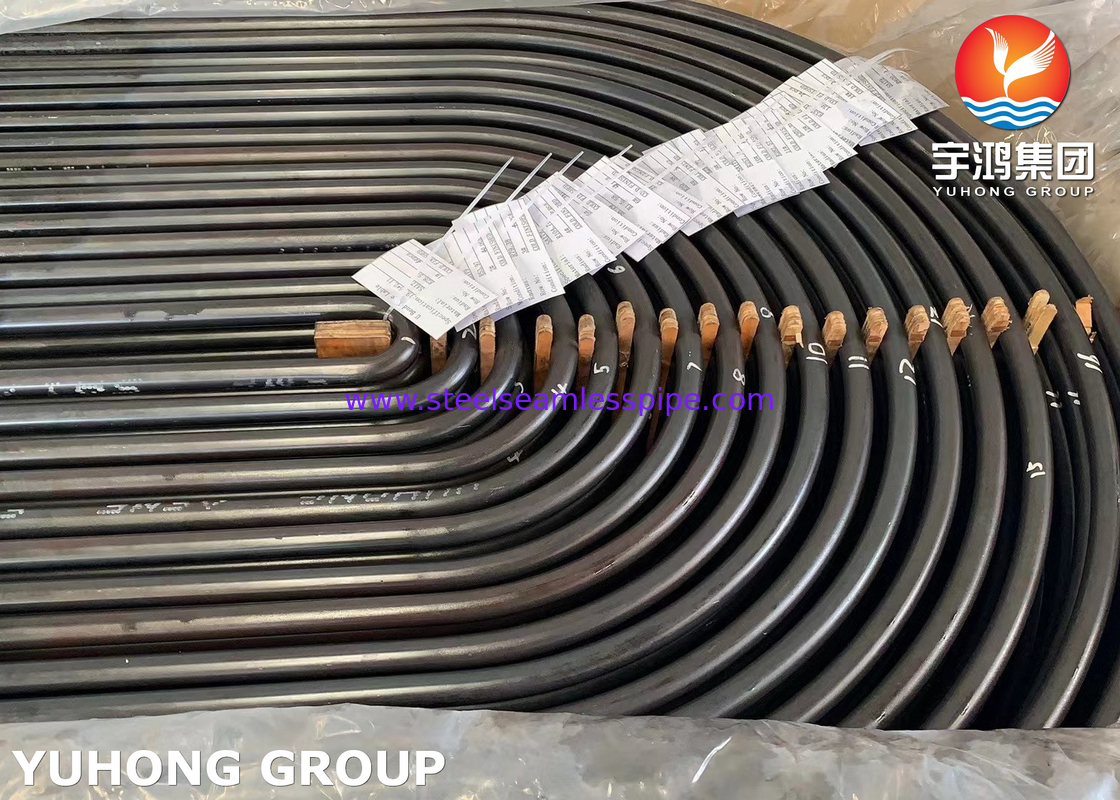

ASTM A179, ASME SA179 Carbon Steel Seamless U Bend Tube For Shell And Tube Heat Exchanger
ASTM A179 Low Carbon Steel Seamless U Bend Tubes are usually used in heat exchangers and boilers. They are made from seamless, cold-drawn low-carbon steel tubes. These Carbon Steel U Bend Tubes are usually used in oil and gas plants, chemical plants, petrochemical plants, refineries, power plants, renewable energy plants and so on. ASTM A179 U Tubes are usually delivered with surface coatings like black, oiled, phosphate and bright polishing. ASTM A179 Carbon Steel U Bend Tubes have a wall thickness range of 1.65-2.77mm. The bending radius is from 1-1/2 times the outside diameter to 1250mm.
Chemical Composition:
| C | Mn | P | S | Si |
| 0.06-0.18 | 0.27-0.63 | 0.035 min. | 0.035 min. | 0.25 min. |
Mechanical Properties:
| Steel Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
| ASTM A179 | ≥180 | ≥325 | ≥35 |
Applications:
Pharmaceutical Industry
Chemical Industry
Sea Water Desalination
Heat Exchangers
Condensers
Pulp and Paper Plant
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals Industry
Gas Processing Plant
Fertilizer Plants
