| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM B111, ASME SB111 | Material Grade: | UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn, 2.0872 |
|---|---|---|---|
| Outside Diameter: | 2mm~914mm, Or As Customized | Wall Thickness: | 0.7-10mm, Or As Customized |
| Length: | 6M, Or As Required | Shape: | Round |
| Applications: | Air Condition Or Refrigerator | Ends: | Bevled End, Plain End, Thread End |
| High Light: | SB111 Copper Nickel Alloy Seamless Tube,CuNi10Fe1Mn Copper Nickel Alloy Seamless Tube,c70600 Copper Nickel Alloy Seamless Tube |
||

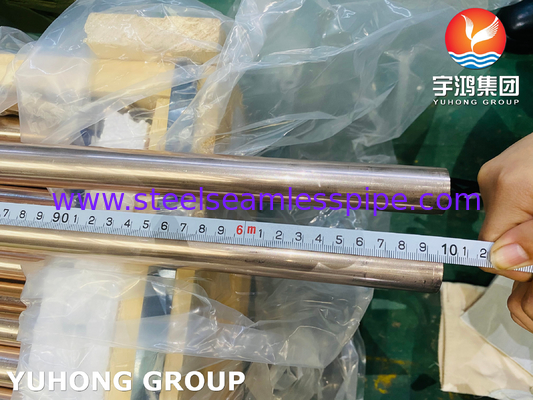

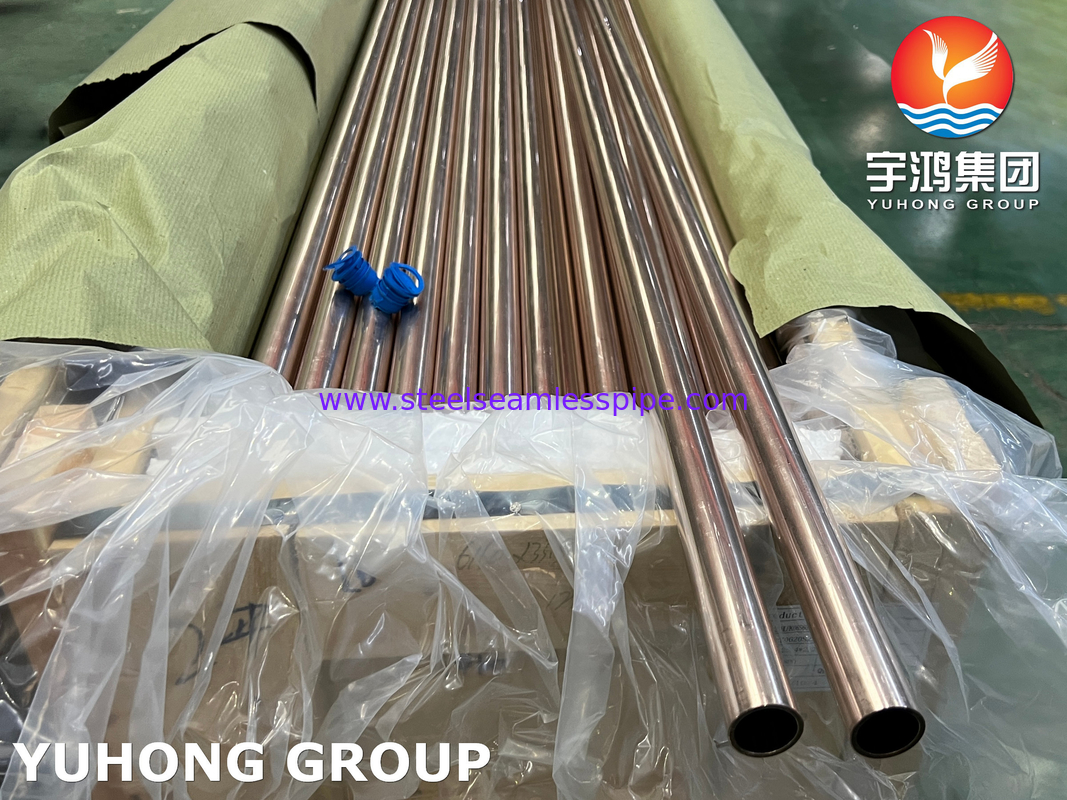

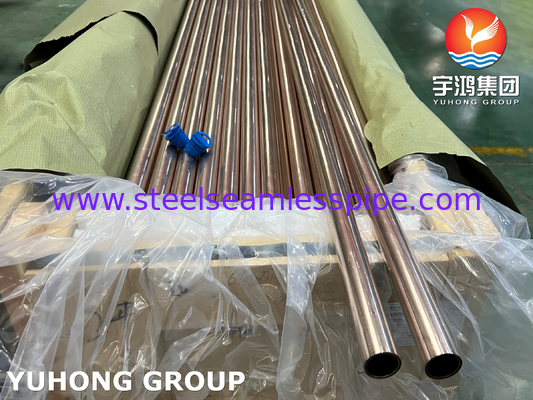

ASME SB111 UNS C70600, Cu-Ni 90/10, CuNi10Fe1Mn Copper Nickel Alloy Seamless Tube
ASTM B111 UNS C70600, also known as Cu-Ni 90/10, is a copper-nickel alloy with a composition of 90% copper and 10% nickel. UNS C70600 Copper Nickel Alloy Seamless Tube is usually used in a variety of applications, including marine system, chemical industry, heat exchangers, coolers, food processing equipments, construction and so on. Copper Nickel 90/10 alloy tubes are well-known for their excellent corrosion resistance, high strength and low magnetic permeability. These copper nickel alloy seamless tubes are also easy to fabricate and have excellent formability.
Characteristics:
Thermal Conductivity
Good Conductivity
Good Wear Resistance
Excellent Plasticity
Good Cold Bending Property
Easy To Welding and Machining
Strong Seawafer Corrosion Resistance
Chemical Composition (%):
| Cu | Pb | Mn | Fe | Zn | Ni |
| 88.6 min | 0.05 max | 1.0 max | 1.8 max | 1 max | 9-11 max |
Mechanical Properties:
| Properties | Metric | Imperial |
| Tensile Strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | |
Thermal Properties:
| Treatment | Minimum | Maximum |
| Annealing | 1100°F | 1500°F |
| Hot Working Temperature | 1550°F | 1750°F |
Applications:
Chillers
Condensers
Heat Exchangers
Power Plants
Refineries
Desalination Plants
Ship Building Equipments
Defence
Evaporators
Chemical Industry
Petrochemical Industry
High Temperature Application
