Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A516 GR.70 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Specification: | ASME SA516 | Mateiral: | Gr. 70N |
|---|---|---|---|
| Sizes: | 1/2''-48'' | Schedule: | SCH 5S - SCH XXS |
| Length: | Customizable | ||
| High Light: | ASME SA516 Elliptical Head End Caps,customizable Dished Elliptical Head End Caps |
||

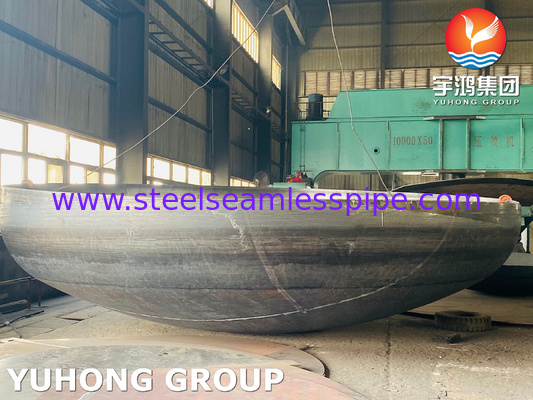

The elliptical head ( or named ellipsoidal head ) which is a head consisting of two parts: a rotating ellipsoidal sphere and a cylindrical straight section. Elliptical tank head is fabricated to have a certain shape instead of a particular dish radius or knuckle radius. The dish radius is approximately 90% of the diameter and the knuckle radius is approximately 17% of the diameter. 2:1 elliptical flanged and dished heads are ASME compliant.
A516 Gr70 not only has very high strength, but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processing and cold forming properties.
Oval heads (also called elliptical heads or elliptical heads) are typically made from carbon steel, stainless steel, austenitic and cold-worked metals. This oval head shape is more economical because the height of the head is only a fraction of the diameter.
Mechanical Properties of ASTM A516 Grade 70
| DESCRIPTION | GRADE 70 |
|---|---|
| Tensile strength (ksi) | 70-90 |
| Tensile strength (MPa) | 485-620 |
| Yield strength (ksi) | 38 |
| Yield strength (MPa) | 260 |
| Elongation in 200mm (min)(%) | 17 |
| Elongation in 50mm (min) (%) | 21 |
| Thickness (max)(mm) | 205 |
Chemical Composition of ASTM A516 Grade 70
| Carbon (C) | % |
| 12.5mm or less 12.5 - 50mm 50 - 100mm 100 - 200mm > 200mm |
0.27 0.28 0.30 0.31 0.31 |
Manganese (Mn) |
% |
| 12.5mm or less • Heat Analysis : • Product Analysis : Over 12.5mm • Heat Analysis : • Product Analysis : |
0.85-1.20 0.79-1.30 0.85-1.20 0.79-1.30 |
Phosphorus (P) |
% |
| (max) | 0.035 |
Sulphur (S) |
% |
| (max) | 0.035 |
Silicon (Si) |
% |
| • Heat Analysis : • Product Analysis : |
0.15-0.40 0.13-0.45 |
Application
