Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP316L-S |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case ,Pallet |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | Concentric Reducer | Standard: | ASTM A403/ASME SA403 |
|---|---|---|---|
| Material: | WP316L | Type: | Seamless/Welded |
| Size: | 1/2" To 48" | WT: | Sch10s To XXS |
| High Light: | ANSI B16.9 Butt Weld Reducer, ASTM A403 Butt Weld Reducer, ASME SA403 Stainless Steel Concentric Reducer | ||
| High Light: | BW Stainless Steel Concentric Reducer,Stainless Steel welded Concentric Reducer |
||

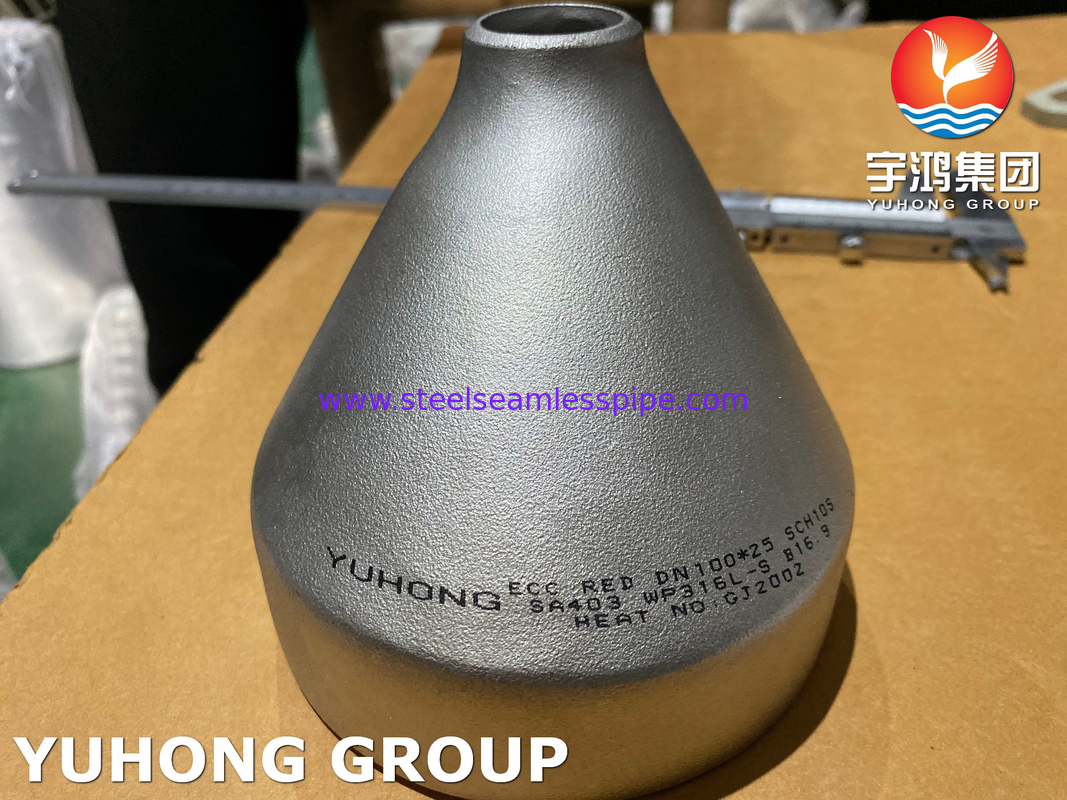

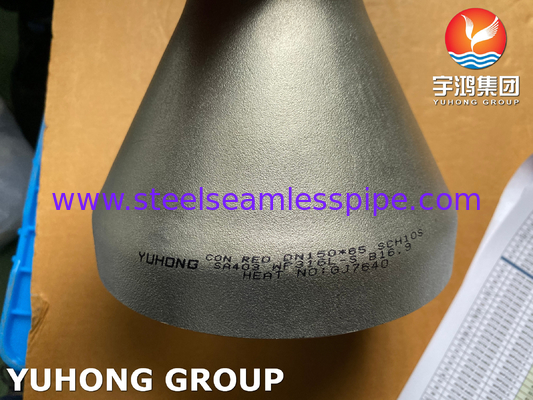

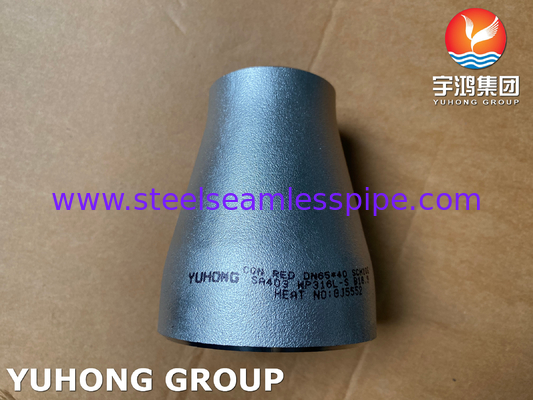

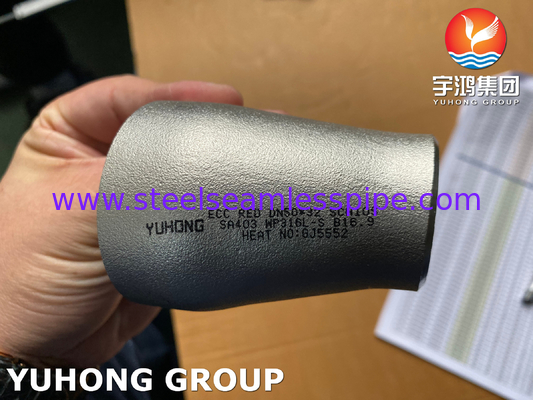

A403 / SA403 WP316L-S CONCENTRIC REDUCER SS BW FITTNG ANSI B16.9
What is a stainless steel reducer?
A stainless steel reducer is a fitting used in piping systems to connect pipes of different sizes. It is designed to reduce the size of the pipe bore, allowing for the smooth flow of liquids or gases through the system. Stainless steel reducers are popular due to their durability, corrosion resistance, and suitability for various applications, especially in industries where hygiene and cleanliness are crucial, such as food processing, pharmaceuticals, and chemical processing.
What is grade SS316L/UNS S31603?
Grade SS316L/UNS S31603 is a type of stainless steel that is known for its excellent corrosion resistance, especially in harsh environments. It is a low carbon version of SS316, which means it has better corrosion resistance than SS316 in welded structures due to its reduced carbon content.
This grade is often used in various industries such as chemical processing, food processing, pharmaceuticals, and marine applications due to its superior corrosion resistance properties. It also offers good strength and weldability.
SS316L Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
| 8.0 g/cm3 | 1040 °C (1900 °F) | ksi – 75, MPa – 515 | ksi – 30 , MPa – 205 | 35 % |
SS316L Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS 316L | 0.030 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.00 - 18.00 max | 2.00 – 3.00 max | 10.00 – 14.00 max |
SS316L Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS316L | 1.4404 | S31603 | SUS 316L | 03Ch17N14M3 | X2CRNIMO17-12-2 |
WP316L Fittings Application:
Chemical Processing
Food and Beverage
Pharmaceuticals
Petrochemical
Water Treatment
Marine Applications
