Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP316L-S |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case ,Pallet |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | Reducing Tee | Standard: | ASTM A403/ASME SA403 |
|---|---|---|---|
| Material: | WP316L | Type: | Seamless/Welded |
| Size: | 1/2" To 48" | WT: | Sch10s To XXS |
| High Light: | ANSI B16.9 Reducing Tee, ASTM A403 Butt Weld Tee, ASME SA403 Stainless Steel Tee | ||
| High Light: | WP316L-S Stainless Steel Reducing Tee,ASTM A403 Stainless Steel Reducing Tee,BW Fitting ANSI B16.9 |
||

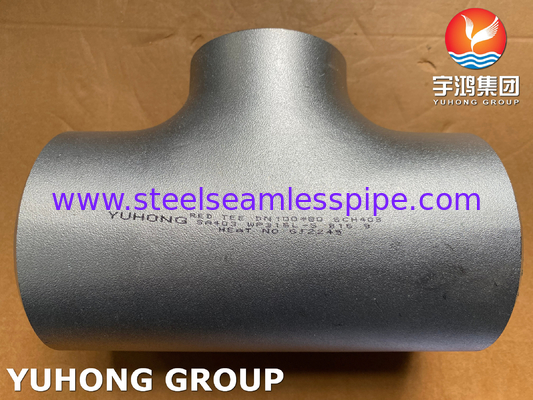

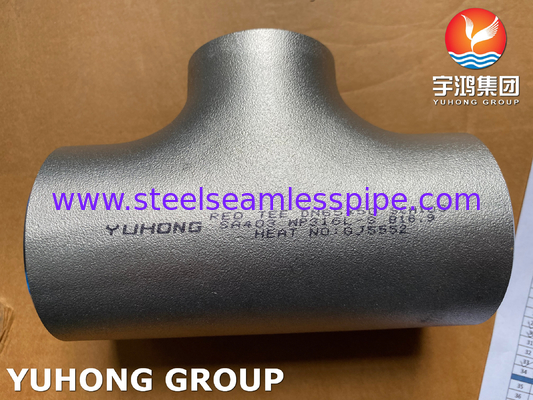

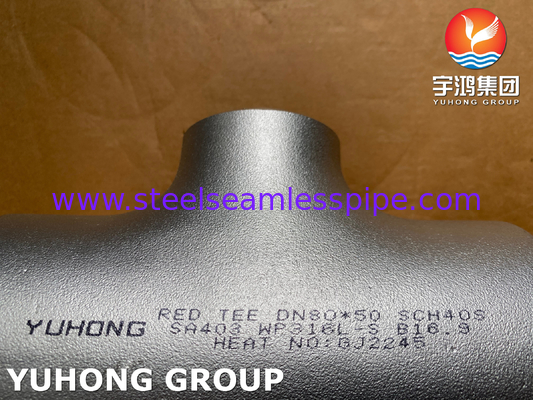

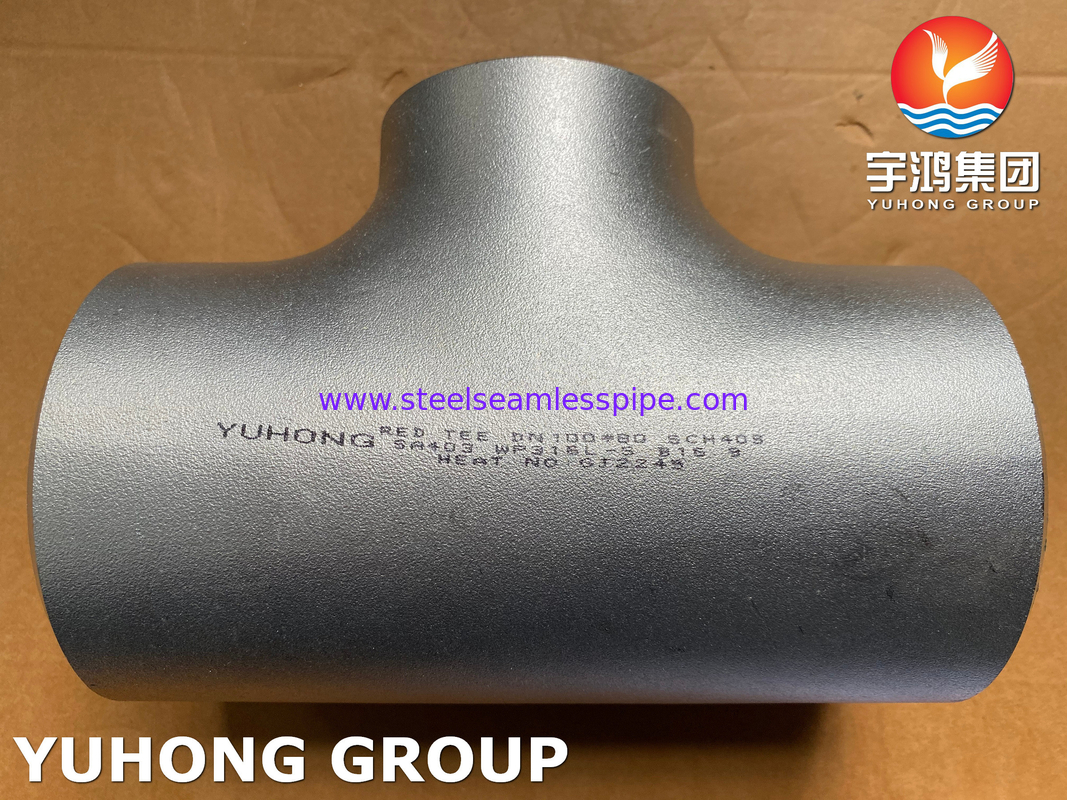

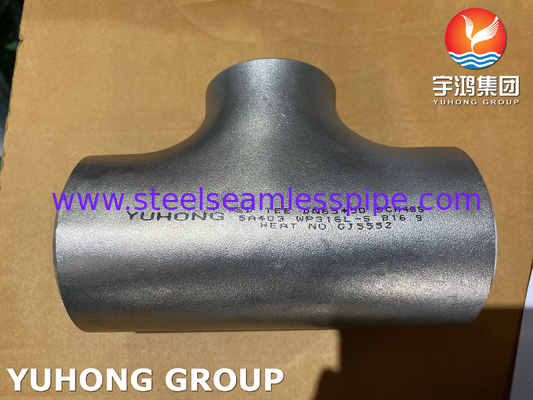

A403 / SA403 WP316L-S Reducing Tee SS BW FITTNG ANSI B16.9
What is a stainless steel tee?
A stainless steel tee is a type of pipe fitting that has a T-shaped design, resembling the letter "T". It is used to divide or combine the flow of fluids in a piping system. The main characteristic of a stainless steel tee is that it has three openings, two on the main pipe run and one perpendicular to the main pipe.Stainless steel tees are commonly used in industries where corrosion resistance, durability, and hygiene are crucial, such as in the food and beverage industry, chemical processing, pharmaceuticals, and oil and gas industry.
What is grade SS316L/UNS S31603?
Grade SS316L/UNS S31603 is a type of stainless steel that is known for its excellent corrosion resistance, especially in harsh environments. It is a low carbon version of SS316, which means it has better corrosion resistance than SS316 in welded structures due to its reduced carbon content.
This grade is often used in various industries such as chemical processing, food processing, pharmaceuticals, and marine applications due to its superior corrosion resistance properties. It also offers good strength and weldability.
SS316L Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
| 8.0 g/cm3 | 1040 °C (1900 °F) | ksi – 75, MPa – 515 | ksi – 30 , MPa – 205 | 35 % |
SS316L Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS 316L | 0.030 max | 2.00 max | 1.00 max | 0.045 max | 0.030 max | 16.00 - 18.00 max | 2.00 – 3.00 max | 10.00 – 14.00 max |
SS316L Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS316L | 1.4404 | S31603 | SUS 316L | 03Ch17N14M3 | X2CRNIMO17-12-2 |
WP316L Fittings Application:
Chemical Processing
Food and Beverage
Pharmaceuticals
Petrochemical
Water Treatment
Marine Applications
