ASME SA213 Grade T22 Alloy Steel Seamless Tube Boiler Tube Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA213 T22 Alloy Steel Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	3000KGS
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7days
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Standard:	ASTM A213, ASME SA213	Material:	T5, T9, T11, T12, T22, T23, T91
OD:	1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.	WT:	BWG10,12,14,16,18,20,22,25, Or Custom
Length:	Single Random, Double Random & Cut Length	End:	Plain End, Beveled End
Type:	Seamless	NDT:	Eddy Current Test, Hydrostatic Test , Ultrasonic Test
Form:	Straight, U Bend Tube
Highlight:	Boiler Alloy Steel Seamless Tube , a213 Alloy Steel Seamless Tube , Heat Exchanger Alloy Steel Seamless Tube

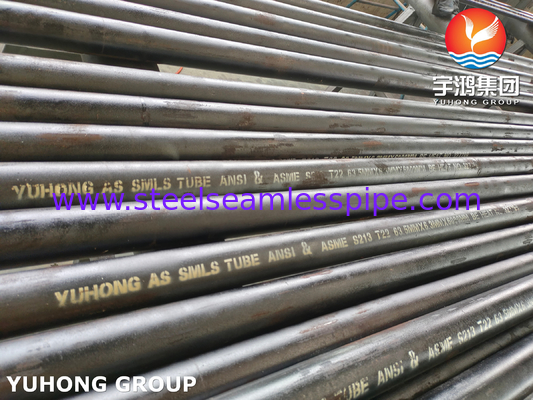

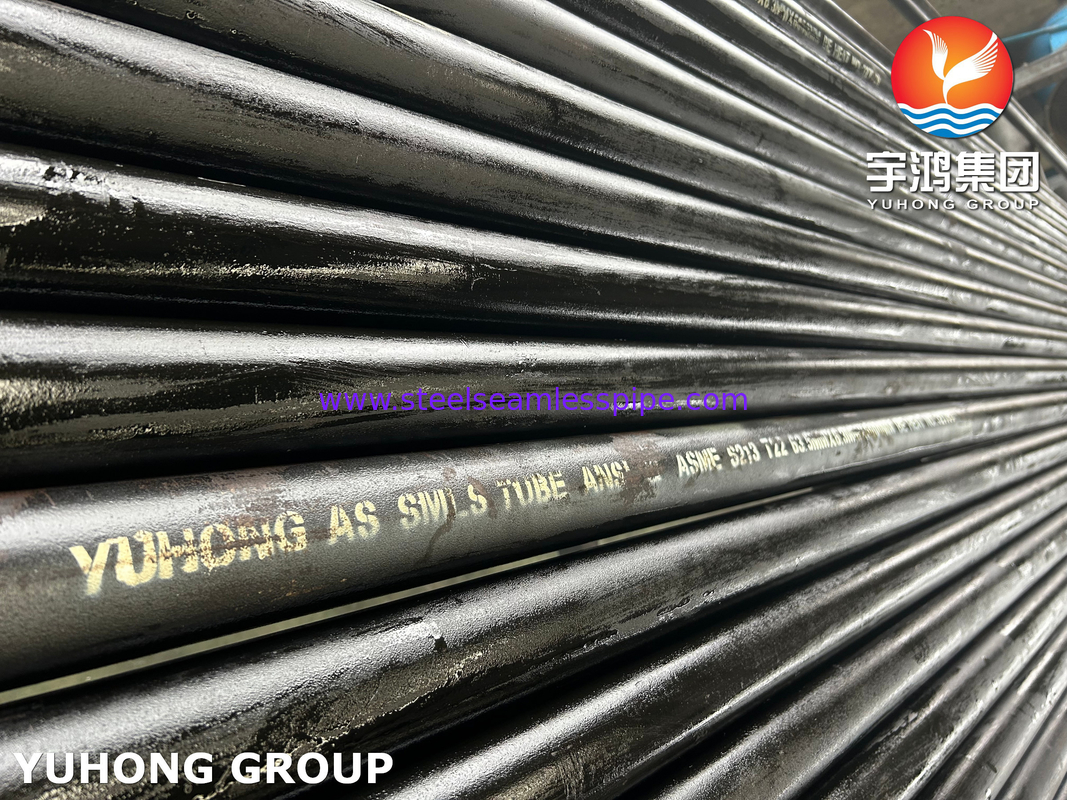

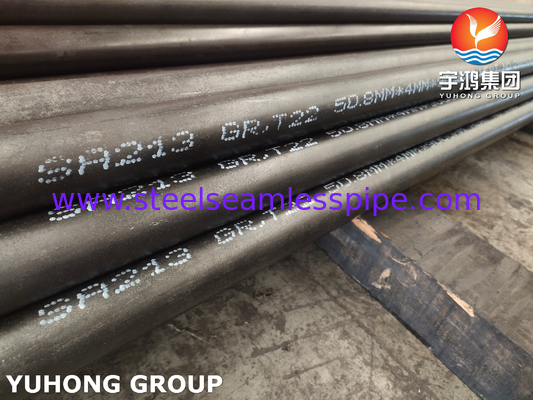

ASTM A213 / ASME SA213 T22 Alloy Steel Seamless tube for Boiler and Heat exchanger

The T22 alloy typically contains about 2.25% chromium and 1.0% molybdenum, along with small amounts of carbon, silicon, and manganese. This composition enhances its strength and resistance to heat. Grade T22 alloy steel has good properties: 1. high-Temperature Strength: can withstand temperatures up to 600°C (1112°F) without losing structural integrity. 2. creep Resistance: Excellent resistance to creep (deformation under constant load over time) at elevated temperatures. 3. weldability: Good weldability, allowing for various fabrication techniques. 4. ductility: Maintains ductility and toughness, making it less prone to brittleness even at high temperatures.

Carbon	Chromiun	Low Temperature	Stainless Steel		Duplex	Copper& Bronze	Titanium	Ni-Alloy
SA178-A	SA213-T1	SA333-Gr.1	SA213	TP316L	A789-S31803	SB111-C70600	SB338-GR.1	SB163	NO2200
SA178-C	SA213-T11	SA333-Gr.3	SA249	TP316H	A789-S32205	SB111-C71500	SB338-GR.2	SB167	NO2201
SA179	SA213-T12	SA333-Gr.6	SA268	TP316Ti	A789-S32750	SB111-C71640	SB338-GR.5	SB444	NO8020
SA192	SA213-T22	SA333-Gr.7	SA269	TP316LN	A789-S32760	SB111-C68700	SB338-GR.7	SB514	NO6022
SA209-T1	SA213-T5	SA333-Gr.8	SA376	TP321	A789-S32707	SB111-C44300	SB338-GR.9	SB619	N10276
SA209-T1a	SA213-T9	SA334-Gr.1	TP304	TP321H	A789-S32304		SB338-GR.12	SB622	NO4400
SA209-T1b	SA213-T91	SA334-Gr.3	TP304L	TP347	A789-S31500			SB626	NO6600
SA210-A1		SA334-Gr.6	TP304H	TP347H	S31254			SB674	NO6601
SA210-C		SA334-Gr.7	TP304N	TP405	254MA			SB677	NO6625
SA214		SA334-Gr.8	TP310H	TP409	17-4PH			SB704	NO690
SA513 MT 1010			TP310S	TP410	17-7PH			SB705	NO8800
SA513 MT 1015			TP309S	TP430	15-7PH			N1001	NO8810
SA513 MT 1020			TP317	TP439				N10665	NO8811
			TP317L	TP444				N10675	NO8825
			TP348	TP446				TP904L
			TP347HFG

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Chemical Composition and Mechanical Properties

Grade	Chemical Composition%
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	–	–	–
T11	0.05~0.15	0.50~1.00	0.30~0.60	0.025	1.00~1.50	0.44~0.65	–	–	–
T12	0.05~0.15	Max 0.5	0.30~0.61	0.025	0.80~1.25	0.44~0.65	–	–	–
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	–	–	–
T91	0.07~0.14	0.20~0.50	0.30~0.60	0.02	8.0~9.5	0.85~1.05	0.4	0.18~0.25	0.015
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.4	0.15~0.25	0.015
Grade	Chemical Composition%				Mechanical Properties
Grade	W	B	Nb	N	T. S	Y. P	Elongation	Hardness
T2	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T11	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T12	–	–	–	–	≥ 415MPa	≥ 220MPa	≥ 30%	163HBW(85HRB)
T22	–	–	–	–	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T91	–	–	0.06~0.10	0.03~0.07	≥ 585MPa	≥ 415MPa	≥ 20%	250HBW(25HRB)
T92	1.50~2.00	0.001~0.006	0.04~0.09	0.03~0.07	≥ 620MPa	≥ 440MPa	≥ 20%	250HBW(25HRB)

ASTM A213/ASME SA213 T2, T11, T12, T22, T91, T92 Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm

Advantages of Alloy Steel T22

High-Temperature Strength
- T22 can withstand higher temperatures than standard carbon steels, making it ideal for power generation and other high-heat applications.
Enhanced Durability
- It offers better resistance to thermal fatigue and creep, which is critical in environments that experience rapid temperature changes.
Seamless Construction
- Being a seamless tube means fewer weak points compared to welded options, leading to improved integrity and reliability under pressure.
Good Weldability
- T22 can be welded with compatible welding techniques, allowing for versatile fabrication options in different engineering projects.
Cost-Effectiveness
- While it may have a higher initial cost than carbon steel, its longevity and performance can result in lower overall lifecycle costs.
Resistance to Oxidation
- It has better oxidation resistance than some lower-grade steels, making it suitable for high-temperature, corrosive environments.
Versatility
- T22 is used in various industries, including power generation, oil and gas, making it a multifaceted material suitable for diverse applications.
