Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | ASTM B167 |
| Certification: | ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS |
| Model Number: | UNS N06600 |
| Minimum Order Quantity: | 1TON |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply Wooden Case |
| Delivery Time: | 45-70 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | SMLS Tube | Standard: | ASTM B167 |
|---|---|---|---|
| Grade: | UNS N06600 | Material: | Nickel Chromium Iron Alloy Steel |
| Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Package: | Ply-wooden Case |
| High Light: | ASTM B167 Nickel Alloy Seamless Tube,UNS N06600 Nickel Alloy Seamless Tube,Condensador Nickel Alloy Seamless Tube |
||

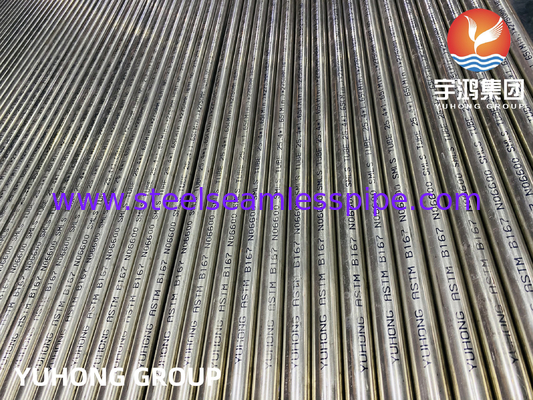

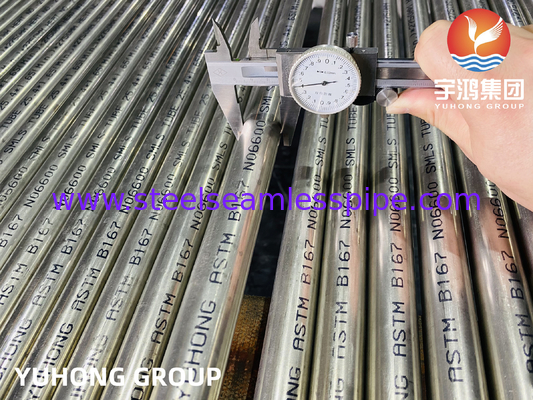

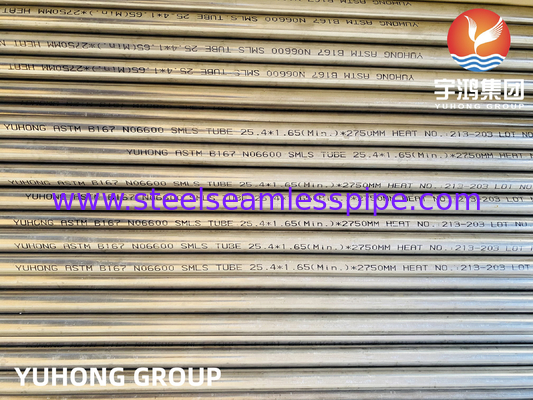

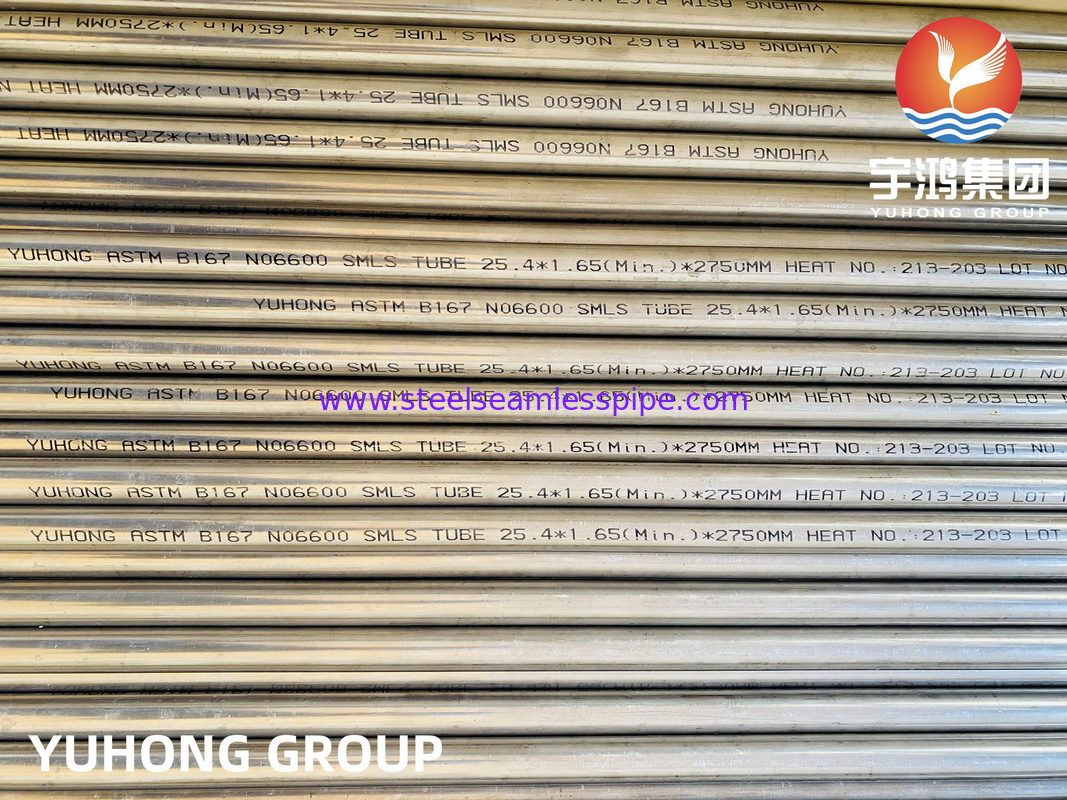

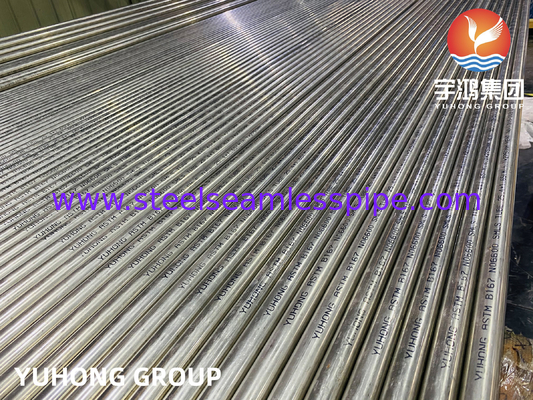

ASTM B167 UNS N06600 Nickel Alloy Seamless Tube for Condensador
YuHong Group, one of the leading suppliers in China,we supply nickel alloy seamless pipes and tubes with high quality to our customers and we have many experiences in exporting.This page talked about alloy 600, it is commonly referred to by the tradename Inconel 600 and the universal designation UNS N06600 and it offers good corrosion resistance in many media with superior oxidation resistance at elevated temperatures.
ASTM B167 This specification covers nickel-chromium-iron alloys (UNS N06600, N06601, N06603, N06690, N06693, N06025, and N06045) and nickel-chromium-cobaltmolybdenum alloy (UNS N06617) in cold-worked annealed, hot-worked annealed, and hot-finished seamless pipe and tube intended for general corrosion resistant and heat resistant applications.
Distinctive Characteristic
Workablity
Alloy 600 has good hot and cold workability in the annealed condition.
Hot-working should be done above 1600°F (871°C) to ensure adequate ductility, while cold work should be performed below 1200°F (649°C).
Corrosion Resistance
Alloy 600 has outstanding corrosion resistance imparted by the dual corrosion fighting power of chromium and nickel. Additionally, alloy 600 has good corrosion resistance in reducing acids, mildly oxidizing acids, high purity water, and other media. It is essentially immune to chloride stress corrosion cracking.
Elevated Temperature Resistance
Alloy 600 provides excellent oxidation resistance at temperatures up to 2150°F (1177°C).
Chemical Composition %
(A) Element shall be determined arithmetically by difference
| Ni | Cu | Fe | Mn | C | Si | S | Cr |
| 72min (A) | 0.5max | 6-10 | 1max | 0.15max | 0.5 | 0.015max | 14-17 |
Mechanical Property
| Condition | Size | Tensile Strength min | Yield Strength min | Elongation min |
| Hot-worked / hot-worked annealed | ≤5" | 80 ksi (550 MPa) | 30 ksi (205 MPa) | 35% |
| ＞5" | 75 ksi (515 MPa) | 25 ksi (170 MPa) | 35% | |
| Cold-worked annealed | ≤5" | 80 ksi (550 MPa) | 35 ksi (240 MPa) | 30% |
| ＞5" | 80 ksi (550 MPa) | 30 ksi (205 MPa) | 35% |
Applications
Oil & Gas
Furnaces
Electronics
Incinerators
Food Processing
Heat-treating Fixtures
Chemical Processing
Sea Project
Nuclear Power Generation
Welcome your inquiry of nickel alloy tubes to YUHONG Group!
