Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | ASME SB111 |
| Certification: | ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS |
| Model Number: | C70600 |
| Minimum Order Quantity: | 1TON |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply Wooden Case |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Product: | Seamless Tube | Standard: | ASME SB111 |
|---|---|---|---|
| Grade: | C70600 | Material: | Copper Alloy |
| Size: | Requested By Client | Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. |
| Application: | Oil And Gas Industries ;Shipbuilding And Repair;Sea Water Condenser Systems;etc. | Package: | Ply-wooden Case |
| High Light: | SB111 Seamless Tubes,C70600 Seamless Tubes,Power Industries Seamless Tubes |
||

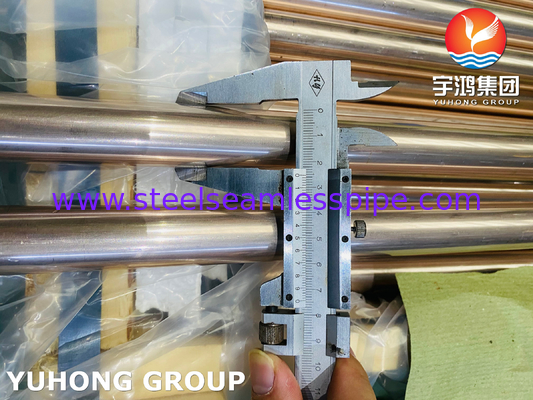

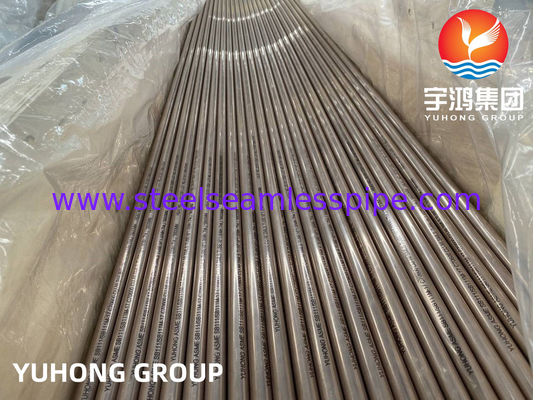

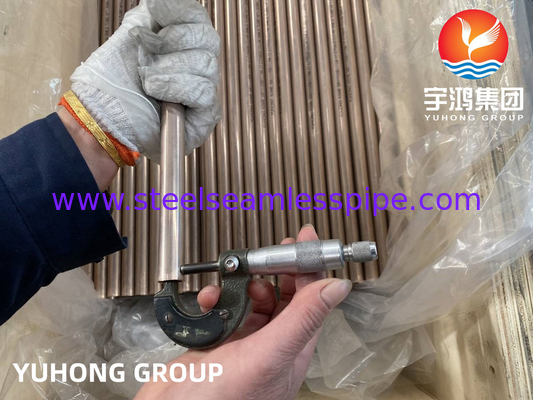

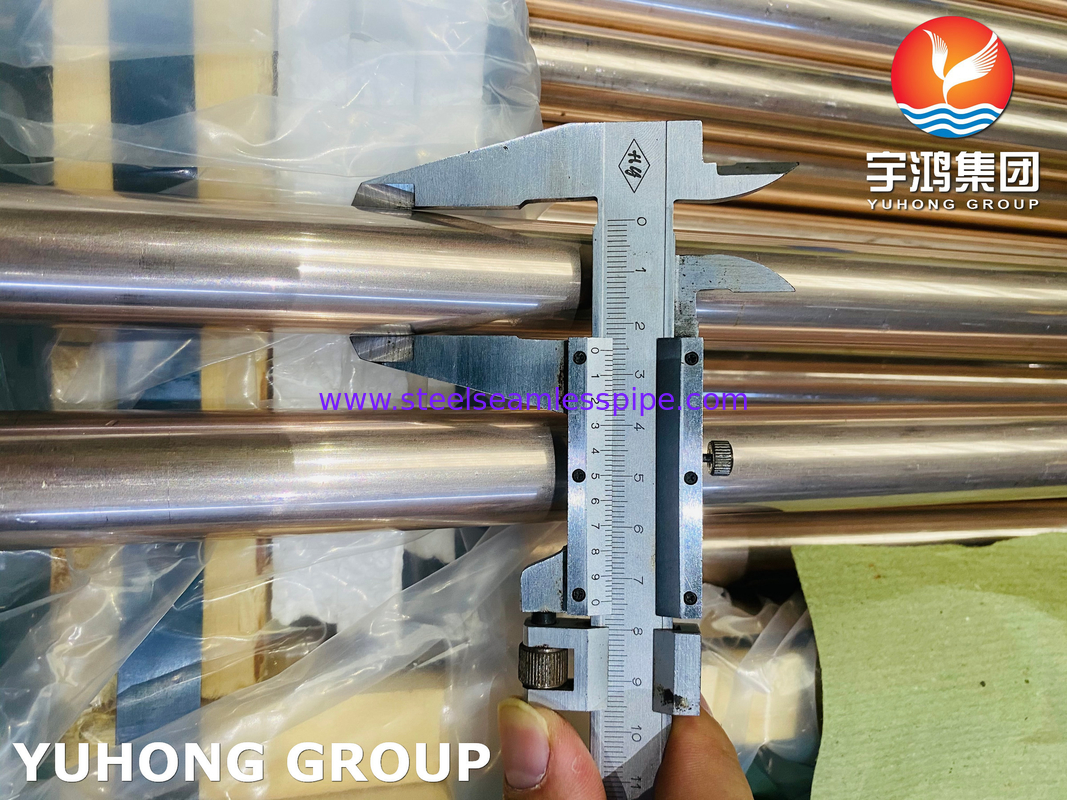

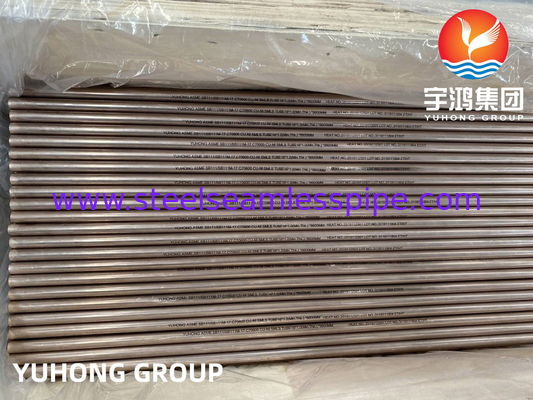

ASME SB111 C70600 Copper Alloy Seamless Tubes for Power Industries
YuHong Group, one of the leading suppliers in China,we supply copper alloy seamless pipes and tubes with high quality to our customers and we have many experiences in exporting.UNS C70600 tube possesses some good mechanical properties, which includes good resistance to stress corrosion cracking.Besides, it has good corrosion resistance, especially in sea water.
ASTM B111 / ASME SB111 This specification establishes requirements for seamless tube and ferrule stock of copper and various copper alloys up to 3 1/8 in. (80 mm), inclusive, in diameter, for use in surface condensers, evaporators, and heat exchangers.
Chemical Composition %
| Copper, incl silver | Nickel, incl Cobalt | Lead, max | Iron | Zinc,max | Manganese,max |
| remainder | 9.0 - 11.0 | 0.05 | 1.0 - 1.8 | 1.0 | 1.0 |
Mechanical Property
| UNS No. | Temper Designation | Density | Tensile Strength min | Yield Strength min | Expansion of Tube O.D. | |
| Standard | Former | |||||
| C70600 | H55 | Light-drawn | 0.323lb/in3 8.94g/m³ | 40 ksi / 275 MPa | 30 ksi / 205 MPa | 20% |
| O61 | Annealed | 40 ksi / 275 MPa | 15 ksi / 105 MPa | 30% | ||
| Tensile Strength At 0.5% extension under load. | ||||||
| Expansion of tube outside diameter, in percent of original outside diameter | ||||||
Thermal Properties
|
Specific heat capacity |
0.38 J/g.°C |
|
Thermal conductivity |
40 W/mK @ 20 °C ; 278 BTU.in/hr.ft2.°F @ 68 °F |
|
Hot working temperature |
760 - 816°C (1550 -1750°F) |
|
Annealing temperature |
593 - 816°C (1100 - 1500°F) |
Applications
Oil & Gas
Furnaces
Electronics
Incinerators
Power Industries
Food Processing
Chemical Processing
Heat-treating Fixtures
Shipbuilding and Repair
Nuclear Power Generation
Sea Water Condenser System
