ASTM B564 N06625 (2.4856) Nickel Alloy Blind And Weld Neck Flange

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ISO, PED
Model Number:	ASTM B564 N06625

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	PLY-WOODEN CASE
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	100 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Specification:	ASTM B564/ASME SB564	Grade:	N06625
Type:	Weld Neck, Blind	WNRF Flanges Class:	150#, 300#, ,600#,900#, 1500# & 2500 #
WNRF Flanges Size:	1/8" NB TO 48"NB	Material:	Stainless Steel,Carbon Steel,Alloy Steel,Nickel Alloys,Copper Alloys
Highlight:	Weld Neck Nickel Alloy Flange , B564 Nickel Alloy Flange , N06625 Nickel Alloy Flange

ASTM B564 N06625 Inconel 625 Nickel Alloy Blind And Weld Neck Flange

ASME SB564 UNS N06625, also recognized as Inconel 625, is a high-strength, corrosion-resistant nickel-based superalloy commonly used in aerospace, marine, and chemical sectors due to its ability to perform under extreme conditions.

Alloy 625 has enhanced corrosion protection due to its Chromium, Molybdenum, and Columbium content. It has excellent seawater corrosion performance. Chemical processing equipment relies on the corrosion performance over a wide range of environments. Applications requiring strength and oxidation resistance at temperatures up to 1 800 degrees. In aerospace applications include components of jet engine exhaust and thrust reversers.

N06625 Chemical Composition

Grade		C	Mn	Si	Fe	S	Cr2	Al-Ti	Ni
625	min.	–	–	–	–	–	20.0	–	58.0
625	max.	0.10	0.50	0.50	5.0	0.015	23.0	0.40	–

Corrosion Resistance of Nickel Alloy 625 Blind Flanges

Alloy		Quiet			Flowing, 2 ft/sec
	Weight Loss, g	Range of Pit Depth, mils		Weight Loss, g	Range of Pit Depth, mils
		Panel	Crevice Area		Panel	Crevice Area
625	Nil	Nil	Nil	0.25	Nil	Nil

Inconel 625 Flange Physical Properties

Density		Melting Range		Specific Heat	Permeability at 200 Oersted	Curie Temperature
lb/cu in	gram/cc	°F	°C	Btu/lb°F (J/kg°C) 70°F(21°C)	15.9 kA/m	°F	°C
0.305	8.44	2350-2460	1290-1350	0.098(410)	1.0006	<-320	-196

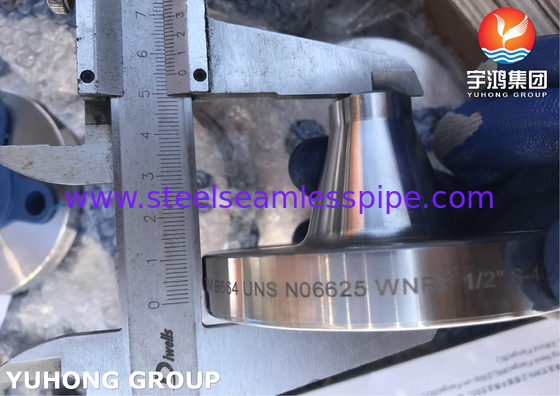

ASTM B564 N06625 (2.4856) Nickel Alloy Blind And Weld Neck Flange 0

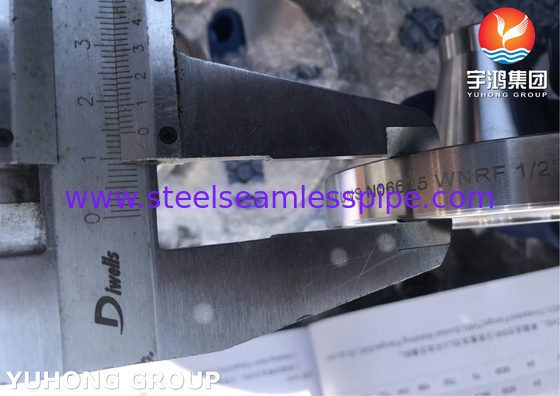

ASTM B564 N06625 (2.4856) Nickel Alloy Blind And Weld Neck Flange 1

ASTM B564 UNS N06625 Flanges Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
625	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5	–	–
