Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | AS4087 F316L |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Specification: | AS4087 | Material: | Stainless Steel |
|---|---|---|---|
| Grade: | F316L | Class: | 150#--15000# |
| Size: | 1/2 Inch - 24 Inch | Face Type: | F.F. & R.F. & R.T. |
| High Light: | Chemical Processing Industries AS4087 F316L Flange,PN35 AS4087 F316L Flange,PN16 AS4087 F316L Flange |
||

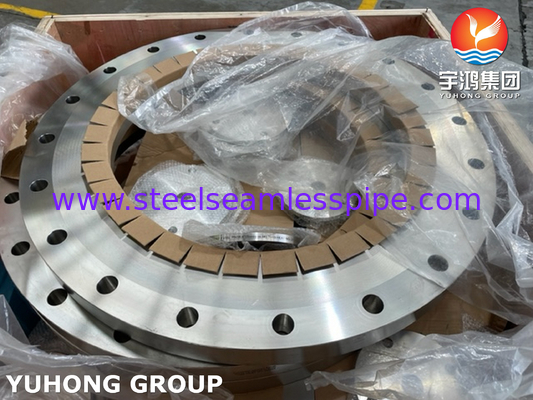

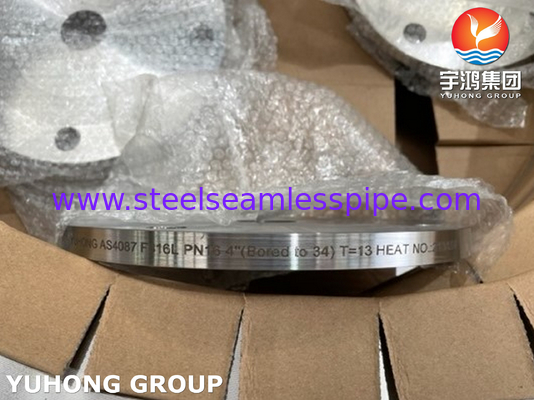

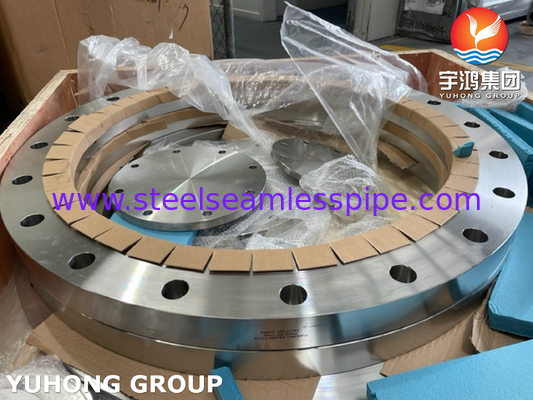

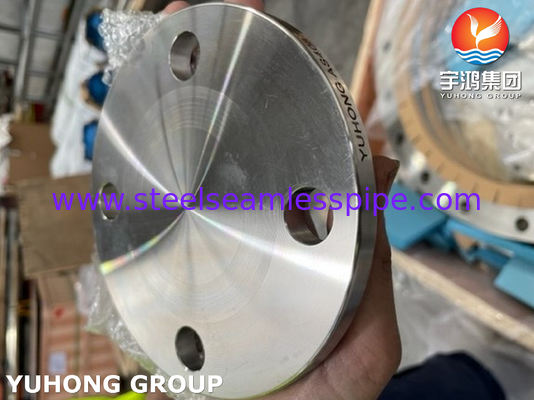

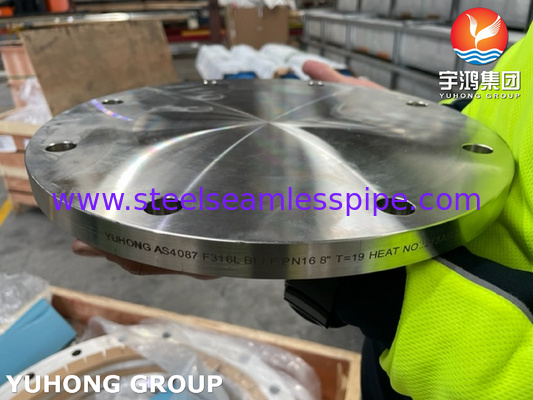

AS4087 F316L Flange
AS4087 is a standard for flanges in Australia, with F316L referring to a specific grade of stainless steel. Therefore, an AS4087 F316L flange would be a flange that conforms to the AS4087 standard and is made of stainless steel grade 316L. This type of flange is commonly used in industries where corrosion resistance and high temperature capabilities are required, such as in chemical processing, food processing, and oil and gas industries.
| SS | Mn | C | Si | P | S | Cr | Mo | Ni | N |
| A182 F316 | 2 max | 0.08 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| A182 F316L | 2 max | 0.035 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| SS | Density | Melting Range | MPa-Psi Tensile Strength | MPa-Psi Yield Strength (0.2%Offset) | % Elongation |
| F316/ SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| F316L/ SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications of AS4087 F316L flanges include
1. Chemical processing
2. Petrochemical industry
3. Water and wastewater treatment
4. Food and beverage industry
5. Pharmaceutical industry
