Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A234 WPB |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case / Pallet |
| Delivery Time: | 5 - 45 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A234, ASME SA234 | Material Grade: | WPB |
|---|---|---|---|
| Type: | Seamless, Welded | Sizes: | 1/8" - 48" |
| Wall Thickness: | SCH 5S - SCH XXS | Color: | Customized |
| Radius: | Long Radius, Short Radius | Degree: | 45Deg, 90Deg, 180Deg |
| Technics: | Butt Weld | Applications: | Chemical,Food Processing,Oil And Gas, Petrochemical,Etc. |
| High Light: | Heater Carbon Steel Buttweld Elbows,A234 Carbon Steel Buttweld Elbows,B16.9 Carbon Steel Buttweld Elbows |
||

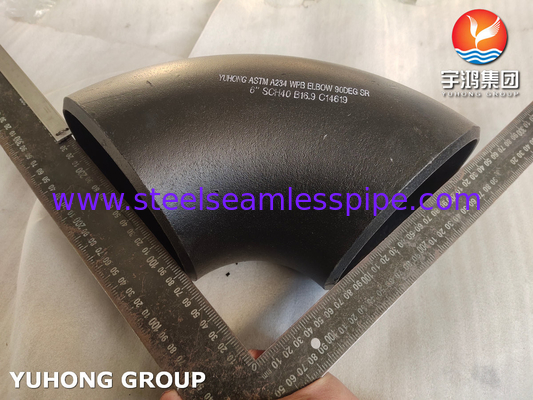

ASTM A234 WPB 90Deg, 180Deg Short Radius Carbon Steel Buttweld Elbows For Heater, B16.9
ASTM A234 WPB is a standard specification for buttweld carbon steel fittings, including elbows, tees, reducers, end caps, and other fittings used in piping systems. Carbon steel elbows are used to change the direction of piping systems, typically at a 180 degree, 90degree or 45degree angle. They are commonly used in various industries such as oil and gas, petrochemical, power generation, and water treatment plants.

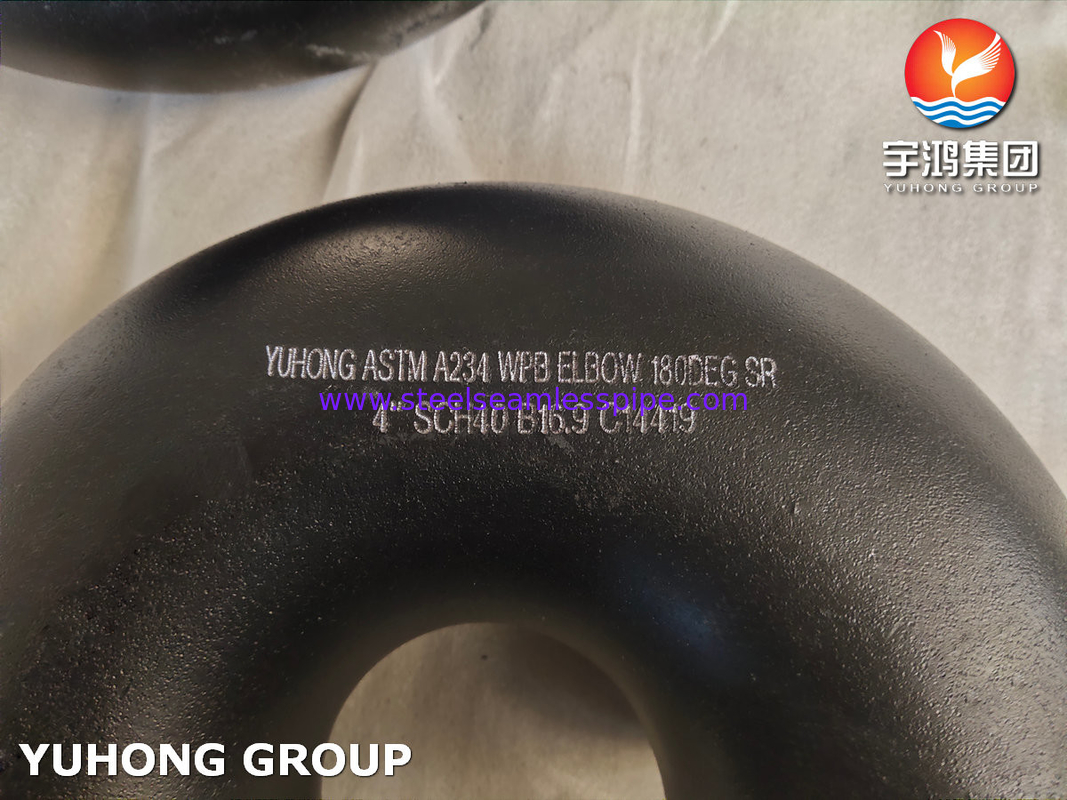

ASTM A234 WPB carbon steel elbows are manufactured in accordance with the ASTM A234 standard and are available in various sizes and dimensions to suit different piping requirements. These carbon steel elbows are designed to withstand high temperatures and pressures, making them suitable for a wide range of applications. ASTM A234 WPB buttweld carbon steel elbows are a reliable and durable choice for piping systems that require high strength and corrosion resistance. ASTM A234 WPB Carbon Steel 180 Degree Elbow is a type of pipe fitting that is used to change the direction of flow in a piping system by 180 degrees. The 180 degree carbon steel elbow is widely used in industries such as oil and gas, petrochemical, power generation, and chemical processing. It is designed to withstand high pressure and temperature conditions, making it suitable for a wide range of applications.
Chemical Composition:
| C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Vb |
| 0.3 | 0.29 – 1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
Mechanical Properties:
| Element | ASTM A234 WPB |
| Tensile Strength, min, ksi[MPa] | 60-85 |
| (0.2% offset or 0.5% extension-under-load) | [415-585] |
| Yield Strength, min, ksi[MPa] | 32 Ksi, 240Mpa |
Elbows Material Grades:
|
Nickel Alloy |
ASTM B366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904, Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020 |
|
Carbob Steel |
ASTM A234 WPB |
|
Low Alloy Steel |
ASTM A234 WP91, WP11, WP22, WP9, |
|
Low Temp Carbon steel |
ASTM A420 WPL3-WPL 6 |
|
Duplex and Super Duplex Steel |
ASTM A815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550 |
|
Stainless Steel |
ASTM A403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti, ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H |
|
High Strength Ferritic Steel |
ASTM A860 WPHY 42, WPHY 46, WPHY 52, WPHY 60, WPHY 65, WPHY 70 |
|
Titanium |
ASTM B337 Grade 1, Grade 2, Grade 11, Grade 12 |
|
Cu-Ni Alloy |
ASTM B466 UNS C70600 Cu/Ni 90/10 |
Applications:
1. Oil and gas industry: ASTM A234 WPB carbon steel fittings are commonly used in the oil and gas industry for pipeline construction, as they provide a strong and durable connection between pipes.
2. Power generation: These fittings are also used in power generation plants for connecting piping systems that transport steam, water, or other fluids.
3. Chemical processing: ASTM A234 WPB carbon steel fittings are suitable for use in chemical processing plants where corrosive chemicals are being transported, as they provide excellent resistance to corrosion.
4. Construction: These fittings are used in construction projects for connecting pipes in plumbing and HVAC systems, as well as for structural applications.
5. Shipbuilding: ASTM A234 WPB carbon steel fittings are used in shipbuilding for connecting pipes and piping systems in marine vessels.
6. Water treatment: These fittings are also used in water treatment plants for connecting pipes that transport potable water or wastewater.
7. Pharmaceutical industry: ASTM A234 WPB carbon steel fittings are used in the pharmaceutical industry for connecting pipes that transport chemicals and other materials used in the production of pharmaceutical products.
8. Food and beverage industry: These fittings are also used in the food and beverage industry for connecting pipes that transport food products and beverages.
