Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A234 WPB |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case ,Pallet |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | Equal Tee | Standard: | ASTM A234/ASME SA234 |
|---|---|---|---|
| Material: | WPB | Type: | Seamless/Welded |
| Size: | 1/2" To 48" | WT: | Sch10s To XXS |
| High Light: | Butt Weld Fitting Equal Tee,B16.9 Equal Tee,Carbon Steel Equal Tee |
||

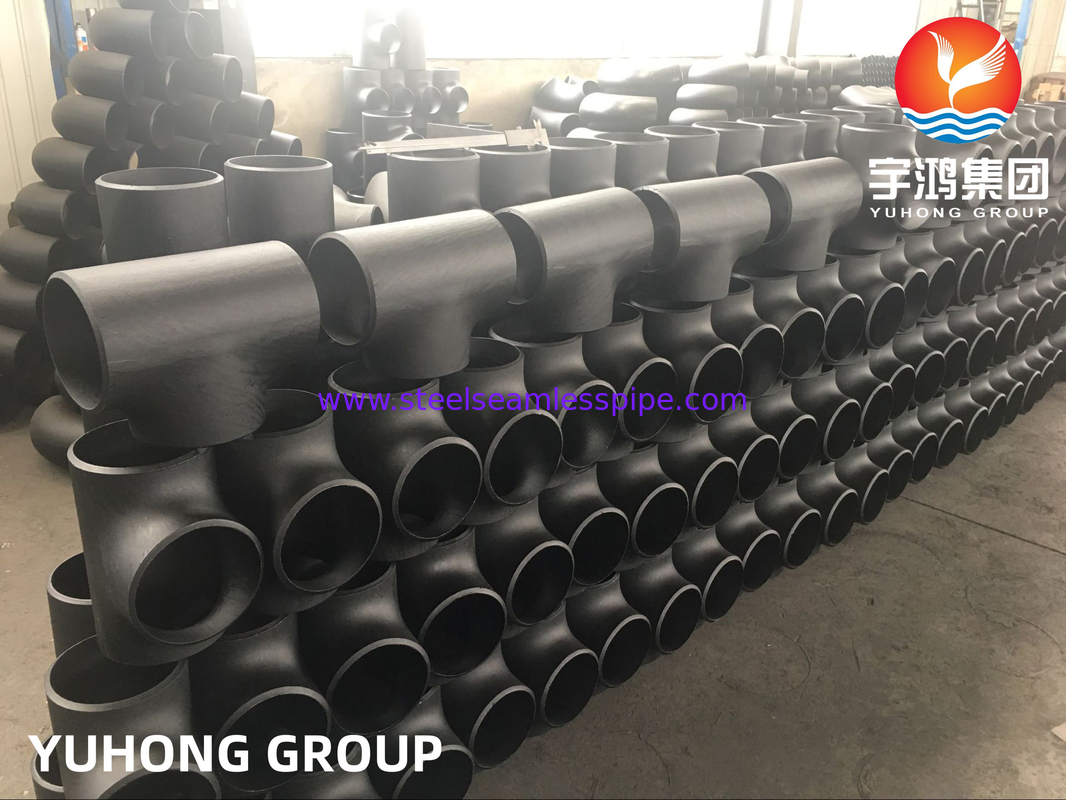

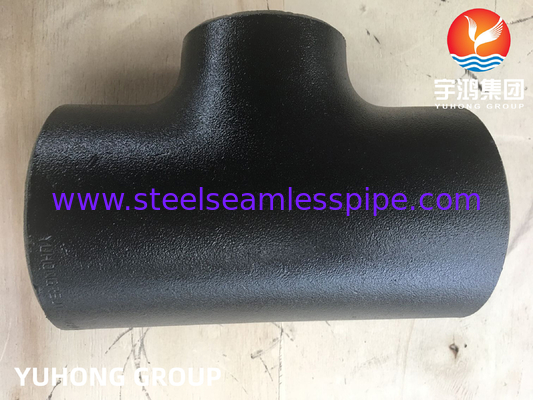

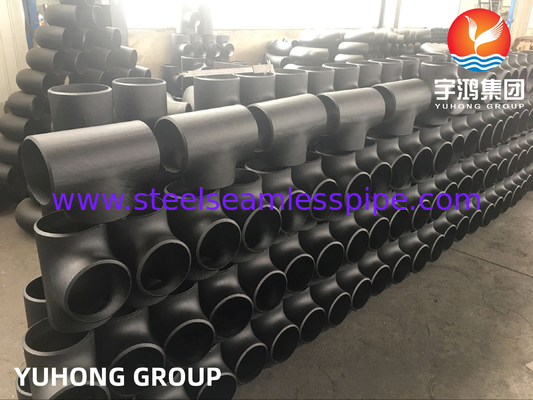

A234 / SA234 WPB-S EQUAL TEE CS BW FITTNG ANSI B16.9
What is a carbon steel tee?
A carbon steel tee is a type of pipe fitting used to connect pipes of different diameters or to change the direction of a pipeline by creating a 90-degree branch. It is called a tee because of its T-shaped appearance, with one inlet and two outlets.Carbon steel tees are commonly used in piping systems for industries like oil and gas, petrochemical, water treatment plants, and more. They are preferred for their strength, durability, and resistance to corrosion.
What is grade WPB?
Grade WPB refers to the specific grade of carbon steel material used in pipe fittings. In the context of carbon steel pipe fittings, WPB stands for "W" for weldable, "P" for pressure, and "B" for black.WPB grade carbon steel fittings are produced in accordance with the ASTM A234 standard, which covers wrought carbon steel and alloy steel fittings of seamless and welded construction. These fittings are commonly used in high-pressure piping systems in various industries.
WPB Mechanical Properties
| Element | Content, % |
| ASTM A234 WPB | |
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | 0.29-1.06 |
| Phosphorus [P] | ≤0.050 |
| Sulfur [S] | ≤0.058 |
| Silicon [Si] | ≥0.10 |
| Chromium [Cr] | ≤0.40 |
| Molybdenum [Mo] | ≤0.15 |
| Nickel [Ni] | ≤0.40 |
| Copper [Cu] | ≤0.40 |
| Vanadium [V] | ≤0.08 |
WPB Chemical Composition
|
ASTM A234 Grades |
Tensile Strength, min. | Yield Strength, min. | Elongation %, min | ||
| ksi | ksi | MPa | Longitudinal | Transverse | |
| WPB | 60 | 35 | 240 | 22 | 14 |
WPB Fittings Application:
Piping Systems: WPB fittings are used in the construction of piping systems for industries such as oil and gas, petrochemical, chemical, power generation, and water treatment plants.
Oil and Gas Industry: WPB fittings are commonly used in pipelines for the transportation of oil, natural gas, and petrochemical products.
Chemical Processing Plants: WPB fittings are used in various chemical processing applications where corrosion resistance and strength are essential.
Power Plants: WPB fittings are employed in power generation facilities for steam, water, and other fluid systems.
Water Treatment: WPB fittings are utilized in water treatment plants for handling water and other liquids.
HVAC Systems: WPB fittings can be found in heating, ventilation, and air conditioning systems for commercial and residential buildings.
Fire Protection Systems: WPB fittings are used in fire protection systems to ensure reliable and durable connections.
