Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2015, API 5L, API 5CT |
| Model Number: | ASME SA192 |
| Minimum Order Quantity: | 1TON |
|---|---|
| Price: | 1-130000 USD |
| Packaging Details: | Ply-wooden case |
| Delivery Time: | 45 - 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000tons/month |
| Material: | Carbon Steel | Product: | Seamless U Tube |
|---|---|---|---|
| Standard: | ASME SA192 | Material Grade: | SA192 |
| Packing Details: | Ply-wooden Case | Use: | Heat Exchanger / Boiler / Furnase, Etc |
| High Light: | ASME SA192 U Bend Heat Exchanger,Furnace Tubes Bend Heat Exchanger,Carbon Steel Bend Heat Exchanger |
||

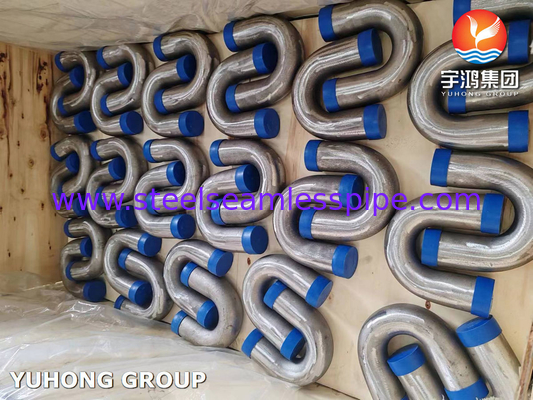

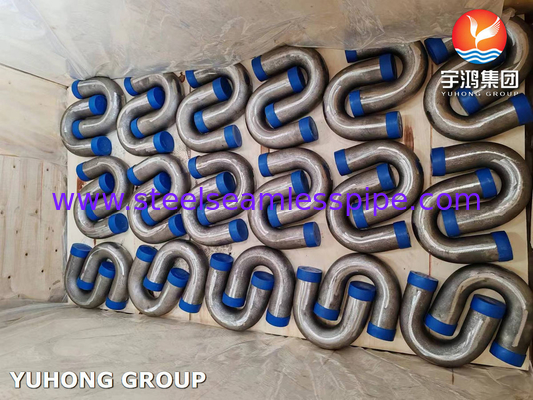

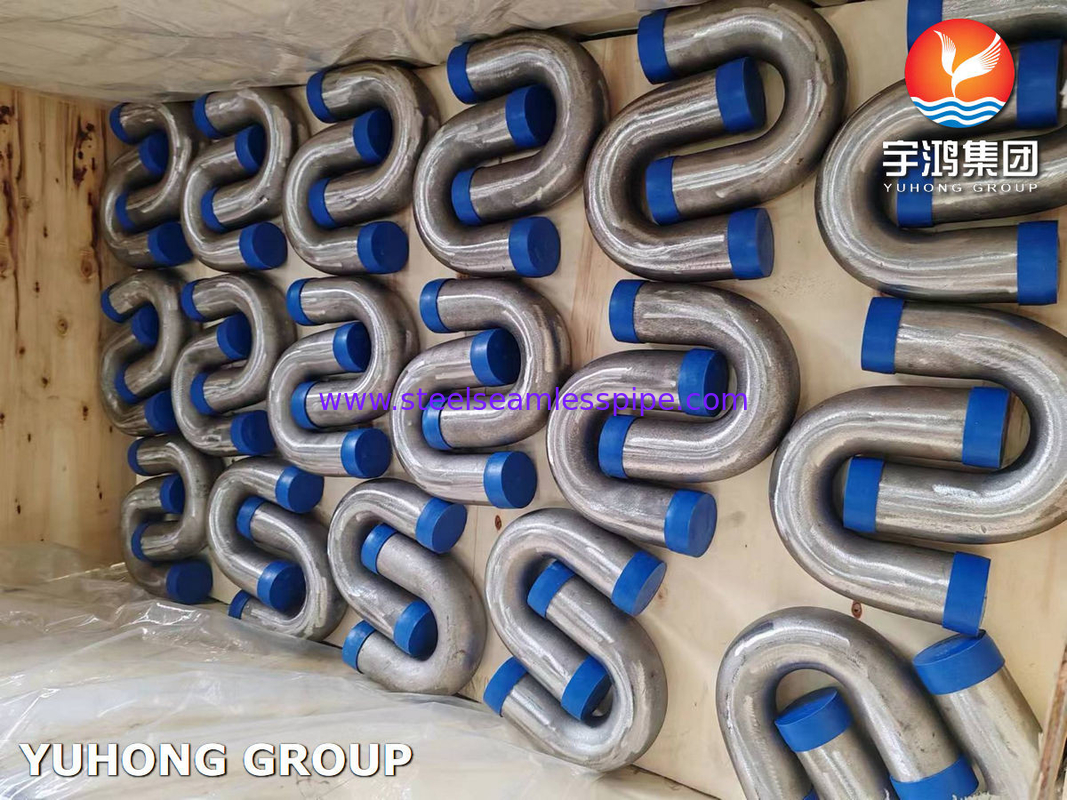

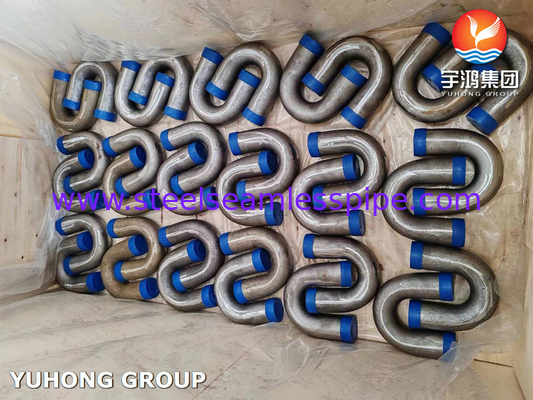

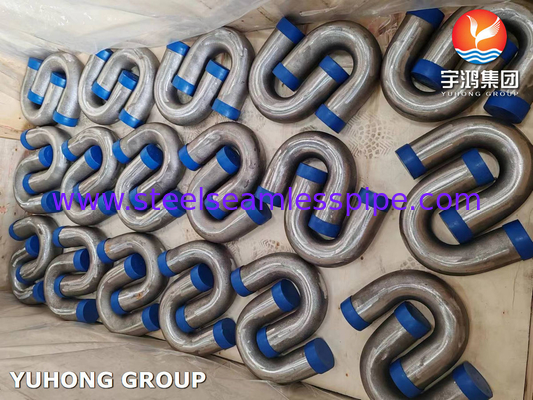

ASME SA192 Carbon Steel Seamless U Bend Heat Exchanger , Furnace Tubes
YuHong Group as one of the leading suppliers in China to supply U bend tubes and has many experiences in exporting to 35 countries.
Each U bend tube of our range is rigorously quality checked by our team of professionals on every produce of production to provide customers with defect-free quality products.
These U-shaped bends can be custom designed in various diameters according to customer requirements and drawings.
ASME SA192 / SA192M This specification covers minimum-wall thickness, seamless carbon steel boiler and superheater tubes for highpressure service.
ASTM A192 seamless carbon steel boiler tube has the ability to withstand high pressure along with having some resistance to corrosion as well as some level of hardness and toughness properties. In addition to this the A192 Boiler Tube has good tensile strength properties as well, thereby making them more popular in several industries.
Applications
Heavy Industries
Petrochemicals Industries
Nuclear Power Generation
Oil & Gas Industries
Furnaces Projects
Heat Exchangers/Boilers/Condensers,etc
Equivalent Material:
| Standard | ASTM A192 / ASME SA192 | ||||
| Equivalents | EN 10216-2 | DIN 17175 | BS3059 Part II | NF A 49-213 | NBR 5594 |
| Materials | A192 / SA192 | ||||
Chemical Composition % Max
| Gr. | Carbon | Manganese | Phosphorus | Sulfur | Silicon,Min |
| A192 / SA192 | 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Mechanical Property
| Gr. | Elongation (%) | Tensile Strength min | Yield Strength min |
| A192 / SA192 | 35 MIN | 325MPa | 180MPa |
Tests
Corrosion Test
Chemical Analysis
Destructive / Mechanical Testing:Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection, etc
We are glad to supply your needs whatever the sizes, shapes, dimensions you want for heat exchanger tubes.
Welcome to your inquiry to YUHONG Group!
