Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM F304 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | According to Client Requirements |
| Standrad: | ASTM A182 | Grade: | F304 |
|---|---|---|---|
| Size: | 1/8"NB TO 48"NB IN | Thickness: | STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm) |
| Class: | Class 3000,Class 6000,Class 9000 | Material: | Stainless Steel |
| High Light: | Hex Head Bushing,A182 F304 Hex Head Bushing,Threaded Hex Head Bushing |
||
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

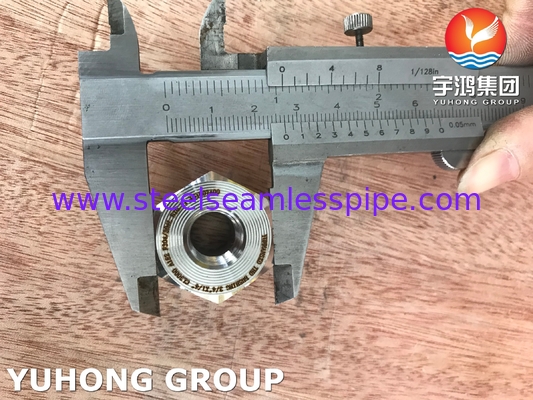

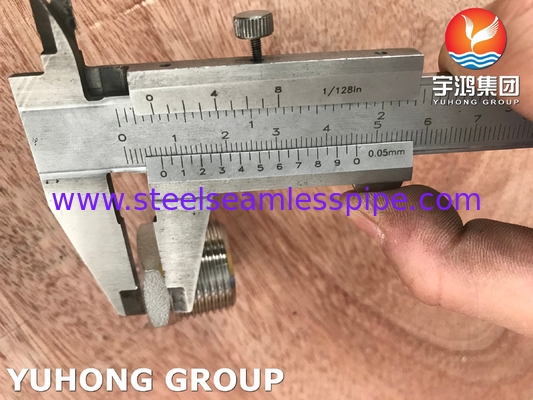

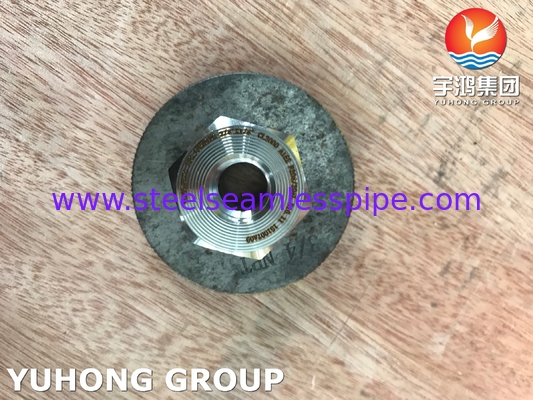

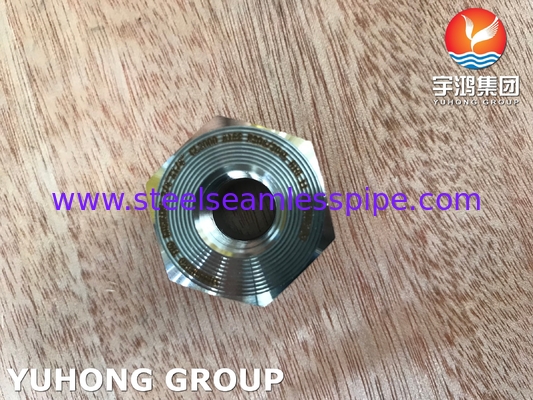

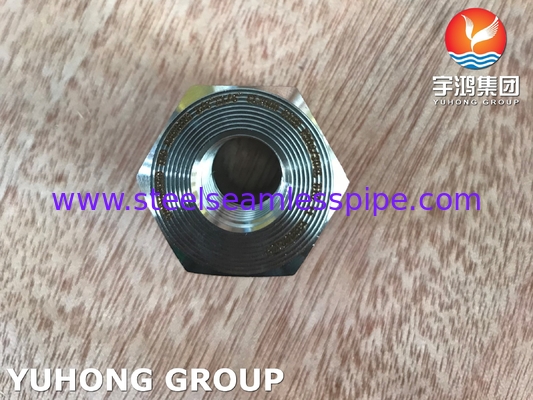

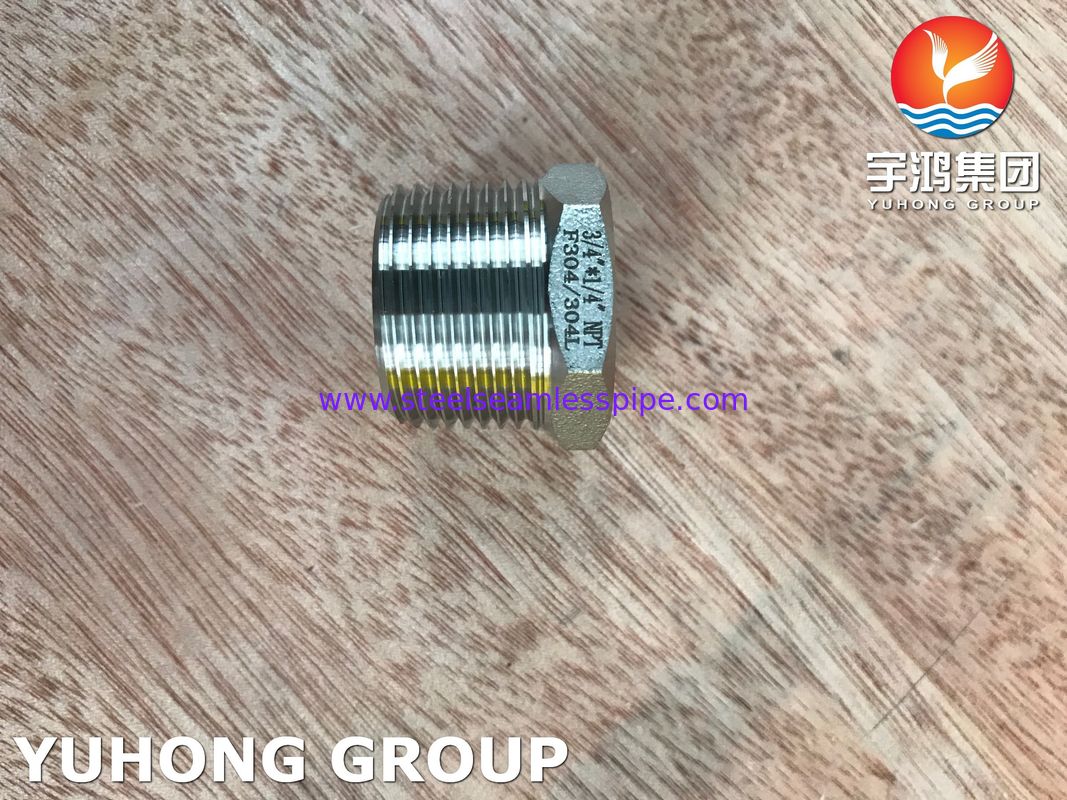

ASTM A182 F304 Threaded Hex Head Bushing
ASTM A182 F304 Threaded Hex Head Bushing is a type of fitting that is used to connect two threaded pipes of different sizes. This bushing is made from ASTM A182 grade F304 stainless steel, which is a high-quality material known for its corrosion resistance and durability.
The hex head design of this bushing allows for easy installation and removal using a wrench or other tools. It is suitable for use in various applications, including industrial, chemical, and petrochemical industries.
Overall, ASTM A182 F304 Threaded Hex Head Bushing is a reliable and durable fitting that provides a secure connection between two threaded pipes. It is designed to withstand high pressure and temperature conditions, making it ideal for use in demanding environments.
Stainless Steel Threaded Hex Head Bushing : ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel Threaded Hex Head Bushing : ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Alloy Steel Threaded Hex Head Bushing : ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Duplex Steel Threaded Hex Head Bushing : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205
Super Duplex Threaded Hex Head Bushing : ASTM/ASME A182 / SA182, A790 / SA790 UNS No S32750, S32950
Nickel Alloy Threaded Hex Head Bushing : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30).
Low Temperature Carbon Steel Threaded Hex Head Bushing : ASTM/ASME A420 SA/420 WPL3, WPL6
| Grade | Mn | Si | Cr | N | P | C | S | Ni | Ti |
| SS 304 | 2.0 max | 1.0 max | 17.00 – 19.00 | 0.10 max | 0.045 max | 0.08 max | 0.030 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| SS 304L | 2.0 max | 1.0 max | 17.00 – 19.00 | 0.10 max | 0.045 max | 0.04 – 0.10 | 0.030 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
Grades |
Tensile Strength |
Yield Strength (0.2%Offset) | Melting Point | Density |
Elongation |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 35 % |
| SS 304H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 1400 °C (2550 °F) | 8.0 g/cm3 | 40 % |
Application
