Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B366 Alloy 600 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | According to Client Requirements |
| Specifications: | ASME SB366 | Material Grade: | Alloy 600 |
|---|---|---|---|
| Size: | 1/8"NB TO 48"NB IN | Schedule: | SCH 10S - SCH XXS |
| Technical: | Butt Weld | Packaging: | PLY-WOODEN CASE OR PALLET |
| High Light: | B16.9 Fittings CON Reducer,Inconel 600 Fittings CON Reducer,Fittings CON Reducer |
||

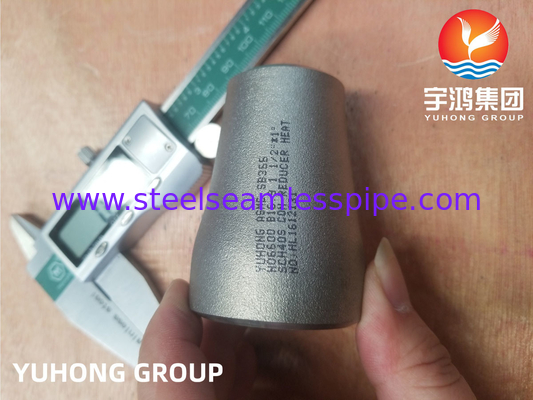

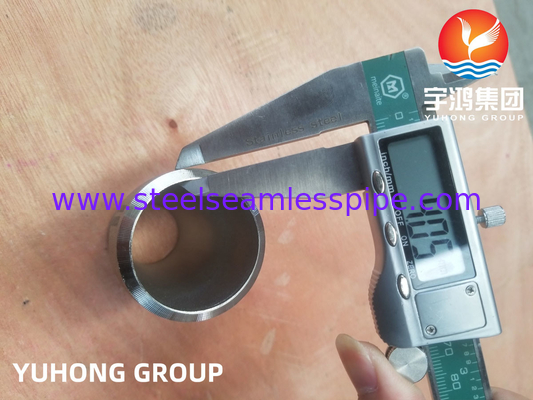

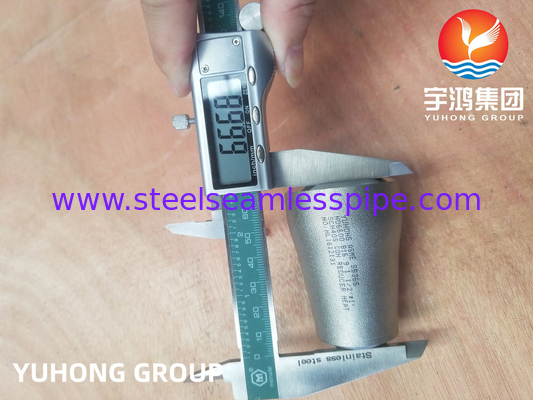

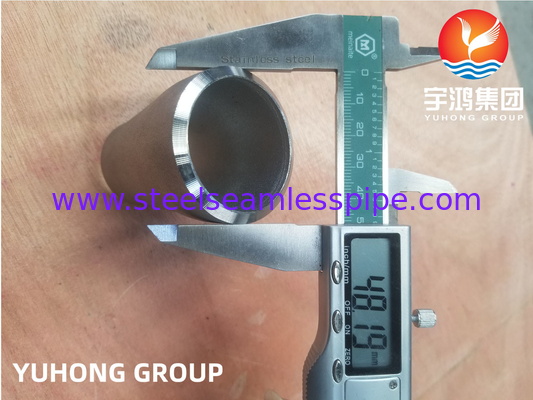

ASME SB366 Alloy 600 CON Reducer
Yuhong Group supply Boiler tube , Heat Exchange Tube, Air Cooling Tube , Condenser Tube more than 33 years , and our material grade contain Stainless Steel , Duplex Steel , Super Duplex Steel , Hastelloy , Monel , Inconel , Incoloy , Cr-Mo alloy , Copper alloy steel , and very year sell more than 80000 tons pipes and tubes to our client projects. And up to now we already export more than 55 countries. The pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
ASME SB366 Alloy 600 Concentric Reducer is a type of fitting used in piping systems to connect pipes of different sizes. It is made from Alloy 600, which is a nickel-chromium alloy known for its excellent resistance to corrosion and high temperatures. This reducer is designed to smoothly transition the flow of fluid or gas from a larger pipe to a smaller one, maintaining the integrity of the piping system. It is manufactured in accordance with ASME standards to ensure quality and reliability in various industrial applications.
| Element | Density | Melting Point | Tensile Stress | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Grade | Carbon | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| STANDARD | WERKSTOFF NR. | UNS No. | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Application
