| Product: | Pipe Fitting- Caps | Technique: | Butt Welded |
|---|---|---|---|
| Material: | Stainless Steel | Standard: | ASTM A403 |
| Grade: | WP304L | Packing: | Ply-wooden Case / Pallets |
| High Light: | WP304L fitting Caps,Buttweld fitting Caps,Seamless Buttweld fitting Caps |
||

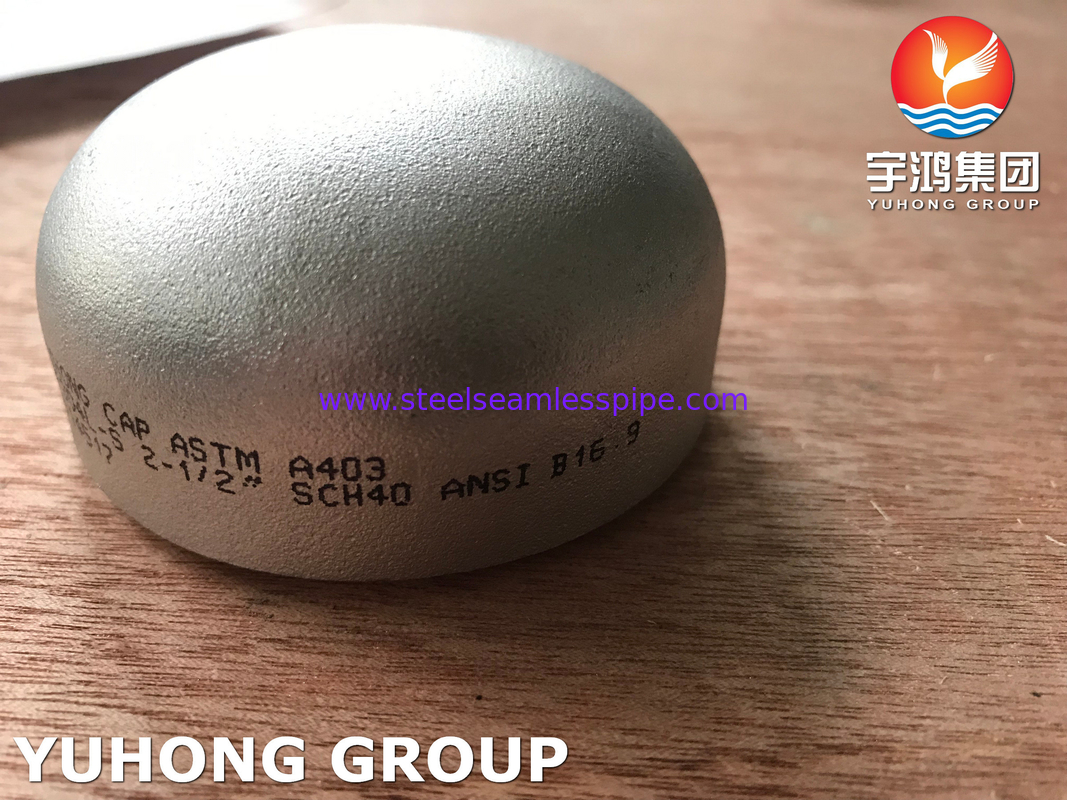

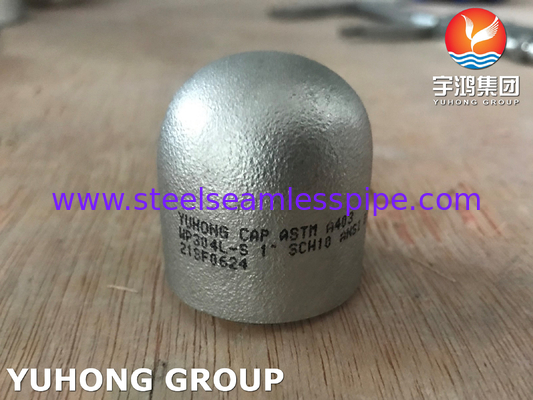

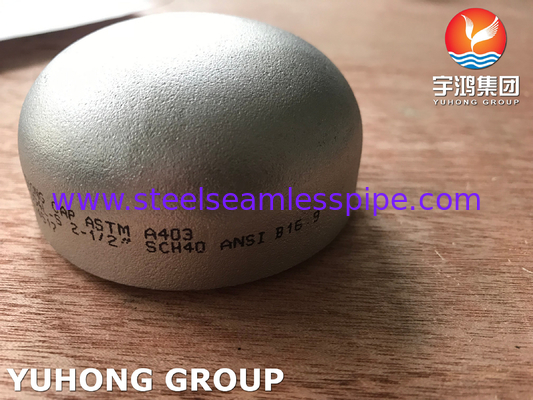

ASTM A403 WP304L Stainless Steel Seamless Buttweld Fittings Caps
ASTM A403 This specification covers wrought stainless steel fittings for pressure piping applications.
YuHong Group can offer client stainless steel seamless caps with high quality. Pipe caps act as protective device and are designed to protect pipe ends of various shapes. The main purpose of using pipe caps is to waterproof the connections. They are also used to close the the ends of hydraulic or pneumatic pipes and tubes.
Chemical Composition
| Crade | UNS | C | Mn | P | S | Si | Ni | Cr | |
| WP304L | CR304L | S30403 | 0.03 | 2 | 0.045 | 0.03 | 1 | 8-12 | 18-20 |
Notes:
1. Maximum, unless otherwise indicated.
2.For small diameter or thin walls, or both, where many drawing passes are required, a carbon maximum of 0.040% is necessary in grades TP304L and TP316L.
Mechanical Property
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation Longitudinal | Elongation Transverse |
| min 70 ksi ( 485 MPa ) | min 25 ksi ( 170 MPa ) | 28 | 20 |
Characteristic
1. The corrosion resistance of 304L stainless steel is greatly improved compared with ordinary stainless steel, so it is easy to be used in chemical process.
2. 304L stainless steel still has strong strength and toughness in low temperature state, so it is widely used in low temperature equipment.
3. 304L stainless steel has high tensile strength and yield strength, and can be cold worked to improve its hardness.
4. 304L stainless steel is easy to process, welding and cutting, and its surface finish is high.
5. 304L stainless steel will not harden during heat treatment.
In short,the material of stainless steel has strong corrosion resistance and ductility, and can be processed to operate at high temperature and high pressure without easy rupture or deformation.Thus widely used in chemical, petroleum, pharmaceutical, food processing and shipbuilding industries.
