| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM B622 C22 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-35 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Client Requirements |
| Standard: | ASTM B622 | Material: | C22 |
|---|---|---|---|
| Name: | Forged Olet | OD: | 1/8'' To 4'' |
| Pressure: | 1500# To 9000# | Connection Type: | Threaded |
| High Light: | Branch Connections C22 Forged Olet,Industrial C22 Forged Olet,ASTM B622 C22 Forged Olet |
||

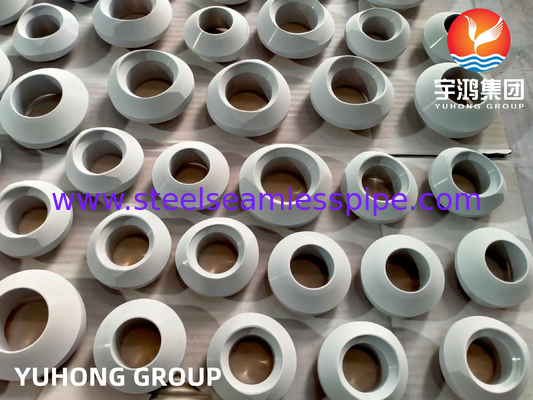

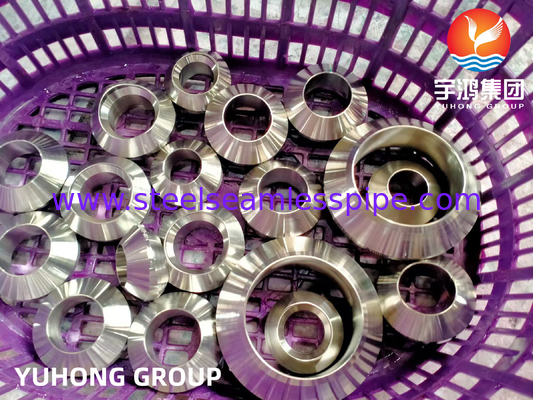

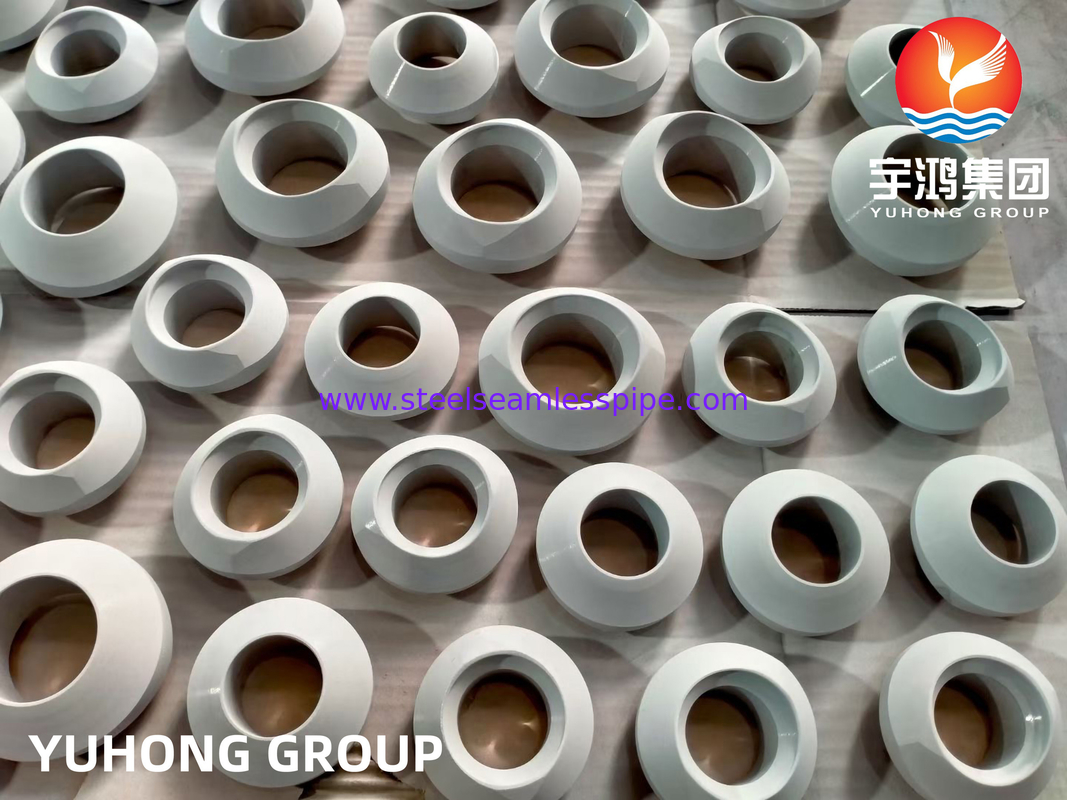

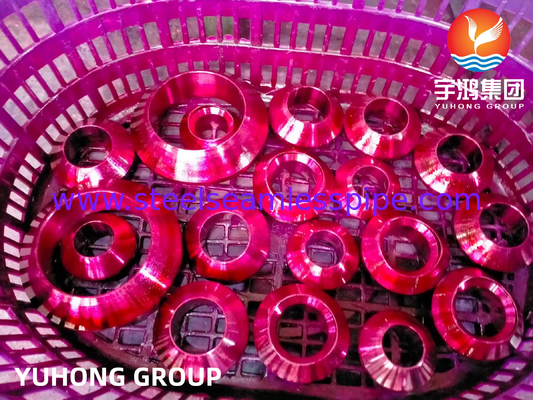

ASTM B622 C22 Forged Olet MSS SP-97
ASTM B622 C22 is a specification for nickel-chromium-molybdenum alloy (UNS N06022) seamless pipes and tubes. Forged Olet MSS SP-97 is a standard specification for integrally reinforced branch connections (Olets) manufactured by forging or machining. When using ASTM B622 C22 material for Forged Olet MSS SP-97, it means that the branch connection is made from nickel-chromium-molybdenum alloy material specified in ASTM B622 C22. This combination ensures high corrosion resistance and strength for the branch connection in various industrial applications.
Chemical Composition - ASTM B622 UNS N06022 Hastelloy C22 Seamless Pipe
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| C22 | Min. | balance | 20.0 | 12.5 | 2 | 2.5 | |||||||
| Max. | 22.5 | 14.5 | 6 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.35 | 0.02 | 0.02 |
Mechanical & Physical Properties – Hastelloy C22
| Density | 8.69 g/cm3 |
| Melting Point | 1399 °C (2550 °F) |
| Tensile Strength | Psi – 1,00,000 , MPa – 690 |
| Yield Strength (0.2%Offset) | Psi – 45000 , MPa – 310 |
| Elongation | 45 % |
Application
We strictly inspect all accessories and Olets at every stage of the production process. We conduct quality inspection and testing on Olet from material procurement to product shipment. By testing Olets we ensure maximum functionality for our customers. Our Olet offers numerous features including longer service life, rust-resistant workability, rugged construction, dimensional accuracy, corrosion resistance, and more.
In addition to testing and maintaining the quality of ASTM A182 F304/304L thread outlets, we are also responsible for Olet's labeling, packaging and shipping. After our experts confirm the dimensional accuracy and superiority of the product, we send it for packaging. We use appropriate packaging materials to ensure no damage during shipping. With door-to-door service, we provide on-time delivery of orders.
We have a well-equipped manufacturing plant with modern machinery and are constantly updated with the latest technology. Apart from this advanced setup, our skilled professionals are working hard to cater to all the demands raised by the clients. We satisfy our clients' requirements by delivering exceptional quality within stipulated deadlines. We consider the needs of different industries and prepare quality product inventories. We can complete customers' urgent deliveries. With our experienced team, we are always happy to meet the diverse needs of our clients.
