Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B366 C22 ELBOW |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | 180 Degree Elbow | Standard: | ASTM B366 |
|---|---|---|---|
| Material Grade: | C22 | Type: | Butt Weld |
| Size: | 1/8"NB TO 48"NB IN | Schedule: | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| High Light: | 180° Elbow Butt Weld Fitting,Butt Weld Fitting,B366 Butt Weld Fitting |
||

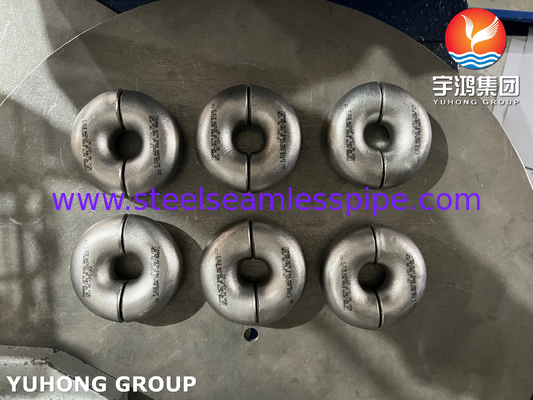

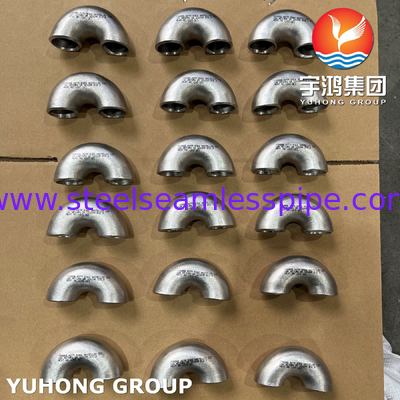

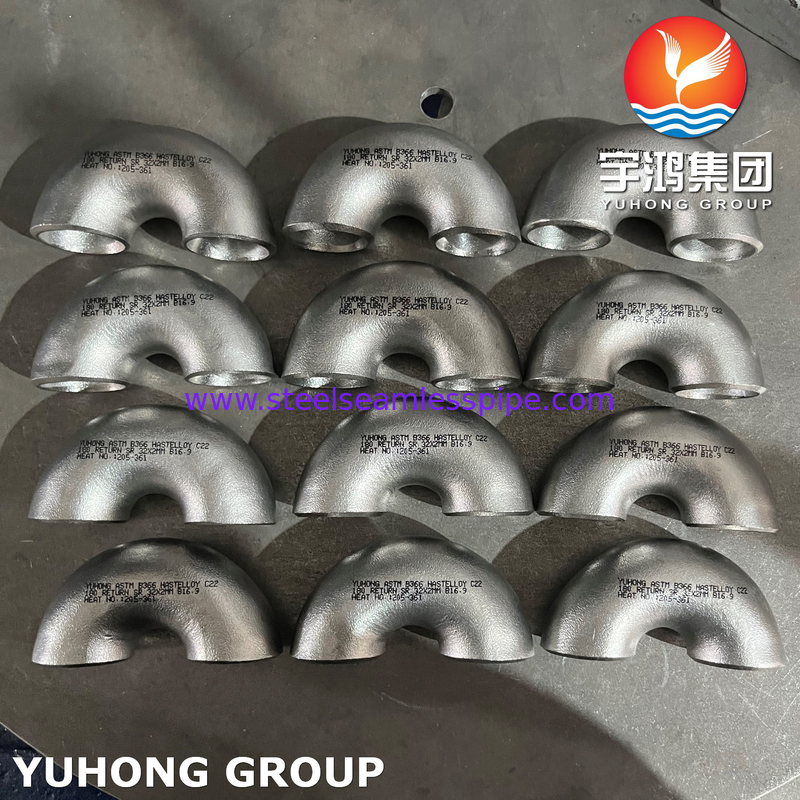

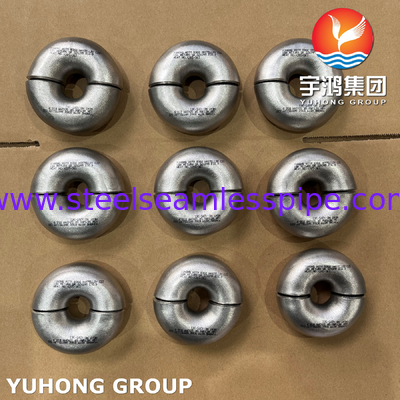

ASTM B366 Hastelloy C22 180°Elbow Long Radius Butt Weld Fitting
Elbow is a type of pipe fitting used in plumbing, construction, and various industrial applications.These elbows come in various sizes, ranging from small diameters used in residential plumbing to large diameters used in industrial piping systems. They are typically available in different angles besides the standard 90-degree elbow, such as 45-degree elbows, depending on the specific requirements of the piping layout.
ASTM B366 is a specification established by ASTM International, formerly known as the American Society for Testing and Materials, that covers nickel-molybdenum-chromium alloys (such as Hastelloy C22) and nickel-chromium-molybdenum-tungsten alloys (such as Hastelloy C276) pipe fittings, including but not limited to elbows, tees, reducers, caps, and crosses.
Hastelloy C22 is a nickel-chromium-molybdenum alloy with enhanced resistance to pitting, crevice corrosion, and stress corrosion cracking. It also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions. This makes it suitable for use in various harsh chemical environments such as chemical processing, pollution control, pulp and paper production, waste treatment, and pharmaceutical manufacturing.
ASTM B366 C22 specifies the requirements for wrought and fabricated fittings made from Hastelloy C22 alloy. These fittings are typically used in conjunction with pipes or tubing in piping systems where corrosion resistance and reliability are crucial, such as in chemical processing plants, oil refineries, and other industries handling corrosive substances.
Chemical Composition:
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 |
0.02 max |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
Applications of Hastelloy C22 Pipe Fittings:
Chemical Processing: Hastelloy C22 pipe fittings are widely used in chemical processing industries for handling corrosive acids, such as sulfuric acid, hydrochloric acid, phosphoric acid, and acetic acid. They are also suitable for processing aggressive chemicals like chlorine dioxide, wet chlorine gas, and hypochlorites.
Oil and Gas: In oil and gas industries, Hastelloy C22 fittings are employed in pipelines, refineries, and petrochemical plants where they encounter harsh environments containing corrosive fluids, acids, and chlorides. They are particularly useful in offshore drilling operations and sour gas applications where hydrogen sulfide (H2S) is present.
Pharmaceuticals: Pharmaceutical manufacturing processes often involve the use of highly corrosive chemicals and solvents. Hastelloy C22 fittings provide excellent corrosion resistance in such environments, ensuring product purity and process reliability.
Pulp and Paper: In pulp and paper mills, Hastelloy C22 pipe fittings are utilized in various stages of the production process, including bleaching, digestion, and chemical recovery. They resist corrosion from chlorine dioxide, chlorine gas, and other chemicals used in pulp bleaching and processing.
Waste Treatment: Waste treatment plants handle aggressive chemicals and corrosive fluids. Hastelloy C22 fittings are preferred for piping
systems in these facilities due to their resistance to corrosion from acids, alkalis, and oxidizing agents commonly found in waste treatment processes.
