Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-Wooden Case/Pallet |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According to client requirements |
| Product Name: | Stainless Steel Tubesheet | Material: | Stainless Steel, Carbon Steel, Alloy Steel |
|---|---|---|---|
| Size: | Customized | NDT: | 100% PT, UT, PMI |
| High Light: | Tube Sheet Heat Exchanger,Baffle Heat Exchanger Sheet,Steel Material Heat Exchanger |
||

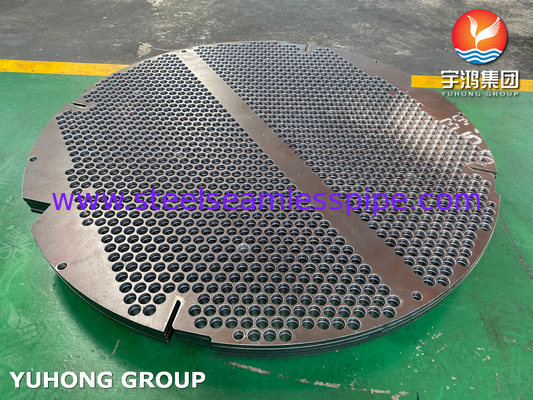

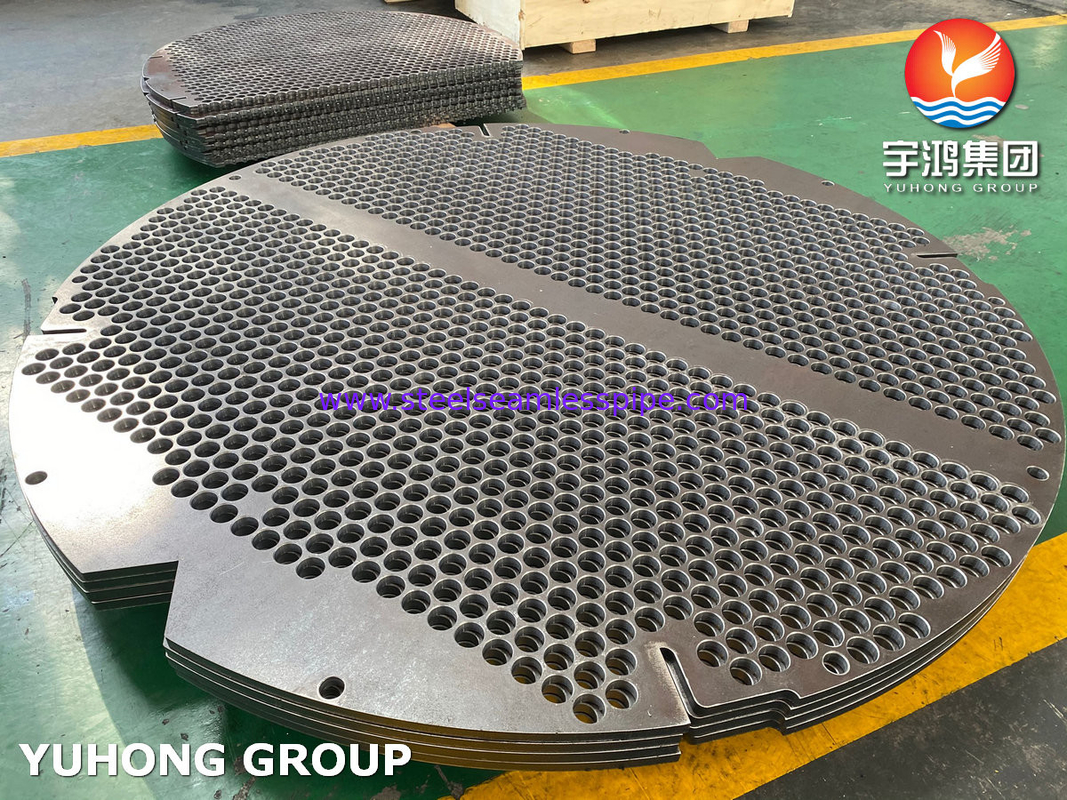

What is baffle ?
The baffle is a parallel partition installed on the inner wall of the shell and tube heat exchanger shell. Baffles are an important part of shell and tube heat exchangers. Its setting can improve the heat transfer effect of the heat exchanger and also provide certain support for the heat exchange tube (horizontal type). Setting up baffles also facilitates the installation of heat exchange tubes.

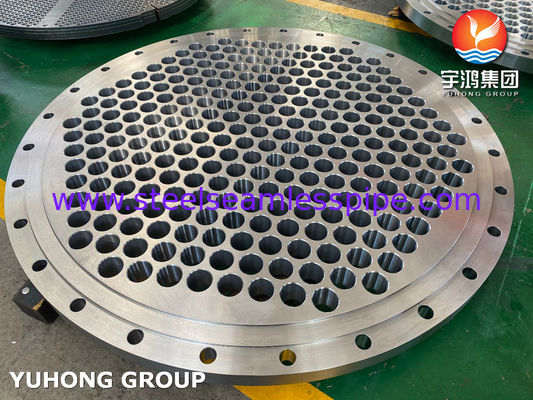

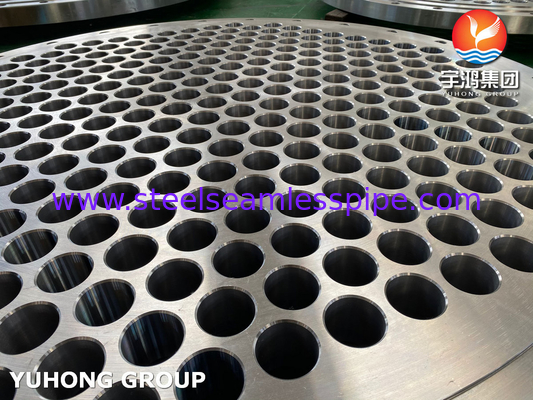

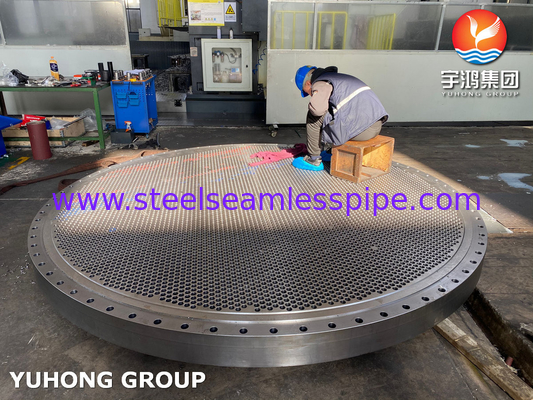

What is tubesheet ?
A tube sheet is a plate which is used to support the tubes in a shell-and-tube heat exchanger. The tubes are aligned in a parallel way, and supported and held in place by tube sheets. The tube sheet is a circular plate which is perforated so that the tubes can fit through the openings.
Materials
| Type of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
Application
