Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO 9001-2015, API , ABS, DNV, GL , LR, NK. |
| Model Number: | ASME SB366 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100000 USD |
| Packaging Details: | Ply-wooden Case / Pallets |
| Delivery Time: | 5-35 days, depend the quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Product: | Pipe Fitting- Concentric Reducers | Technique: | Butt Welded |
|---|---|---|---|
| Material: | Nickel Alloy | Standard: | ASME SB366 |
| Grade: | Alloy 600 | Packing: | Ply-wooden Case / Pallets |
| High Light: | Seamless Buttweld Concentric Reducers,Nickel Alloy 600 Buttweld Concentric Reducers,Nickel Alloy Buttweld Concentric Reducers |
||

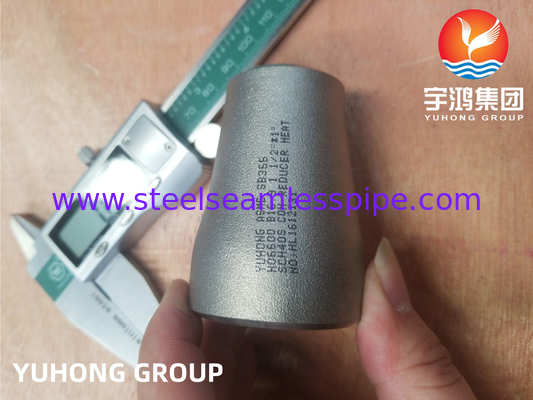

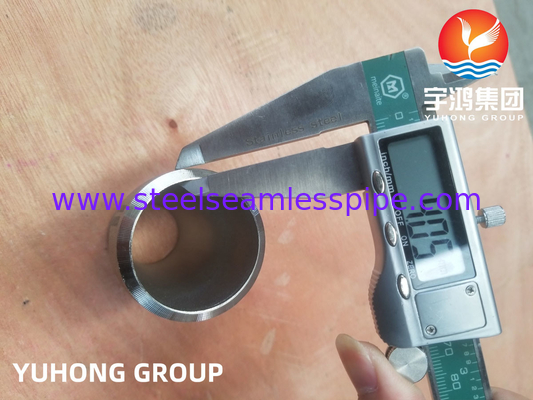

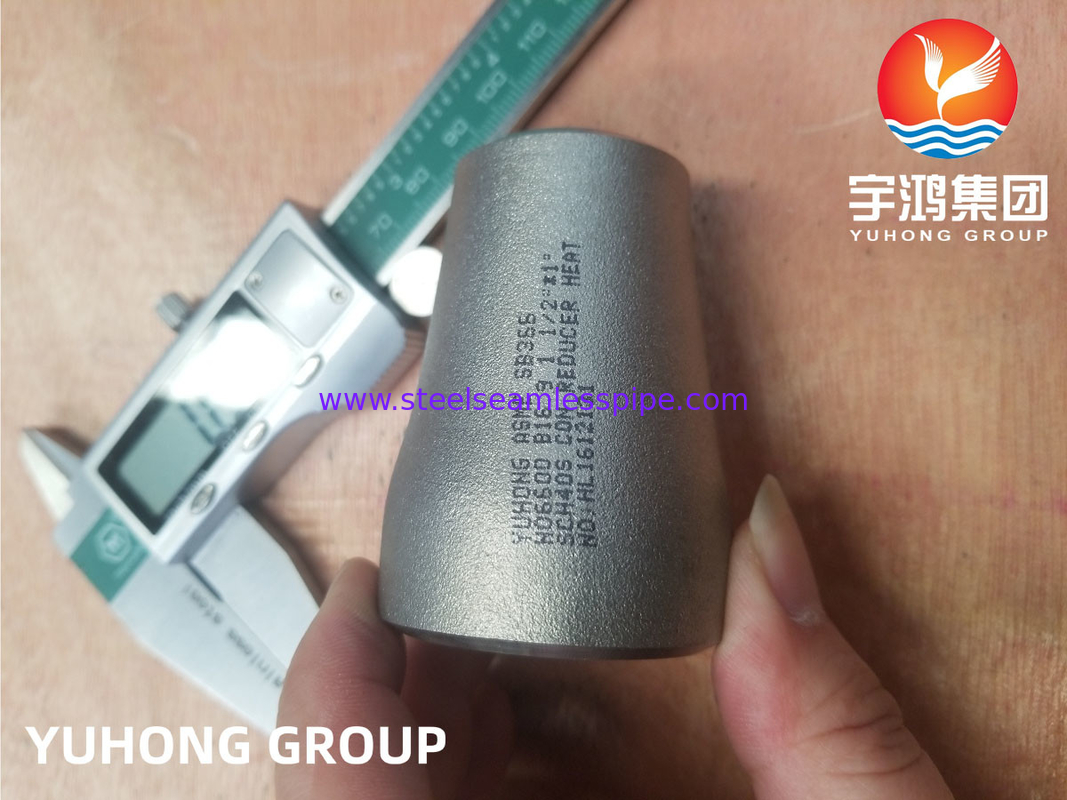

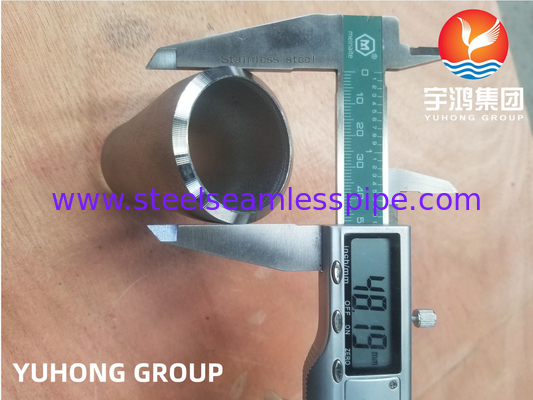

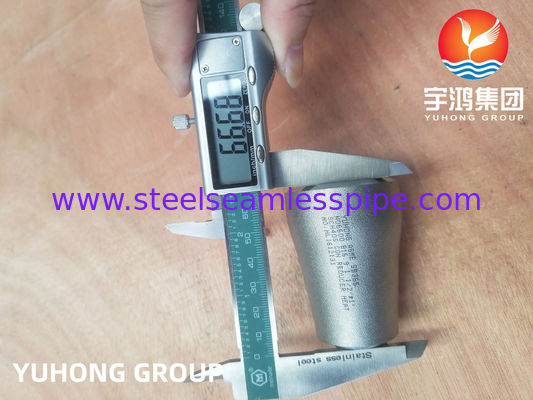

ASME SB366 Nickel Alloy 600 Seamless Buttweld Concentric Reducers
ASME SB366 This specification covers wrought welding fittings for pressure piping, factory-made from nickel and nickel alloys.
YuHong Group can offer client nickel alloy steel seamless pipe fittings with high quality. A concentric reducer is used to join pipe sections or tube sections on the same axis. The concentric reducer is cone-shaped, and is used when there is a shift in diameter between pipes.
Chemical Composition NI-CR-FE
| UNS | Ni | Cu | Fe | Mn | C | Si | S | Cr |
| N06600 | 72min | 0.5max | 6-10 | 1max | 0.15max | 0.5 | 0.15max | 14-17 |
Mechanical Property min
| Condition | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Annealed | 80 ksi ( 552 MPa ) | 35 ksi ( 241 MPa ) | 30% |
Characteristic
N06600 nickel alloy fittings are known best due to their essential features they offer to applications. The features include high tensile strength, formability, weldability, corrosion resistance, and long functional life. In addition to it, these fittings can bear high temperature and pressure without any damage.
Application
Condensers
Petrochemicals
Gas Processing
Power Generation
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Pulp and Paper Industry
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
