Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | EN10216-2 P265GH |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 15days-> |
| Supply Ability: | 600 tons per month |
| Material Grade: | Carbon Steel | Standard: | EN10216-2 |
|---|---|---|---|
| NDT: | EDDY CURRENT TEST, HYDROSTATIC TEST | Alloy Or Not: | Not Alloy |
| Grade: | P265H | Ndt: | PT/HT/UT |
| High Light: | EN10216-2 Boiler tube,Carbon Steel Boiler tube,P265GH Boiler tube |
||

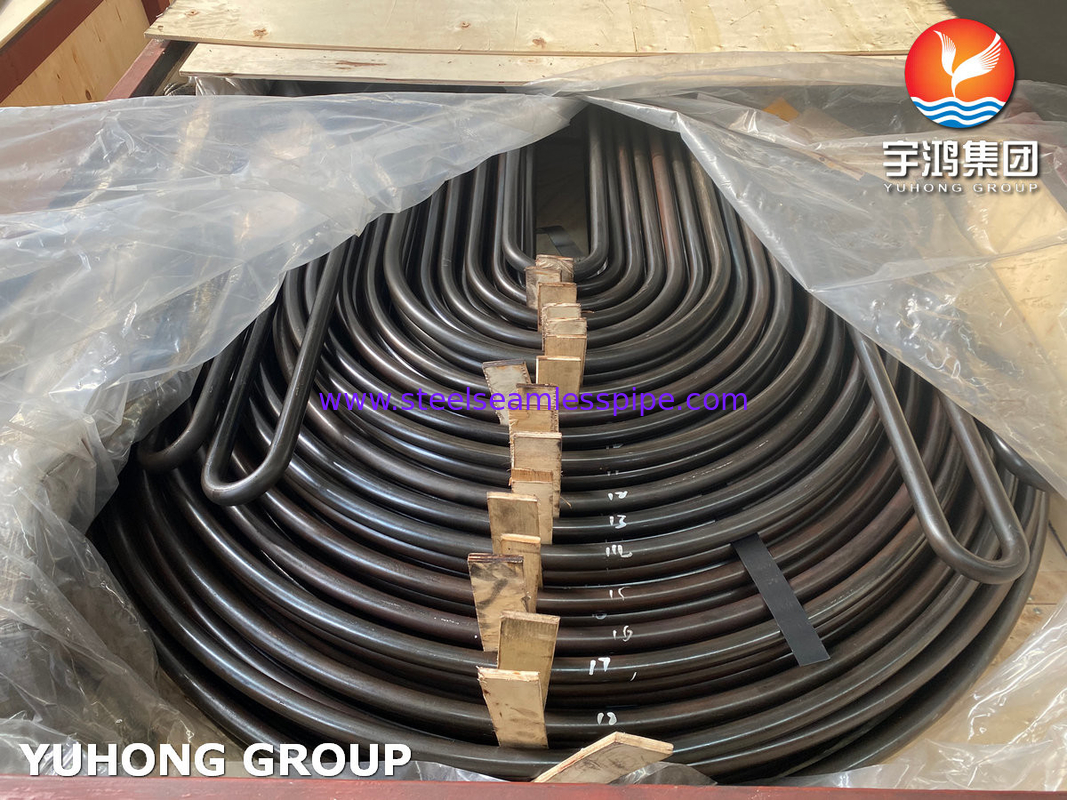

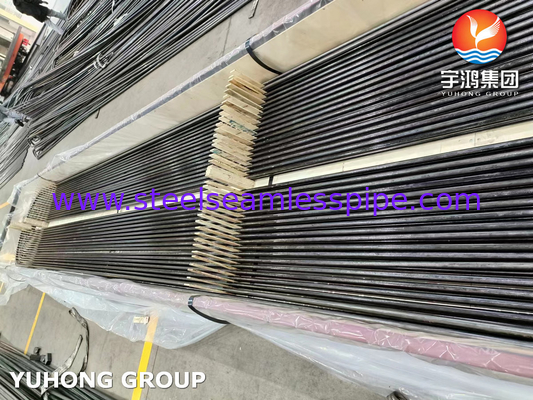

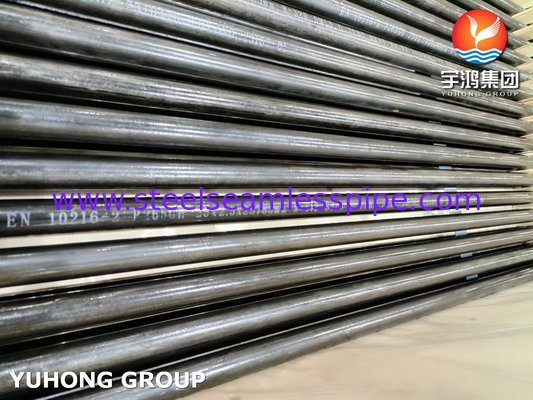

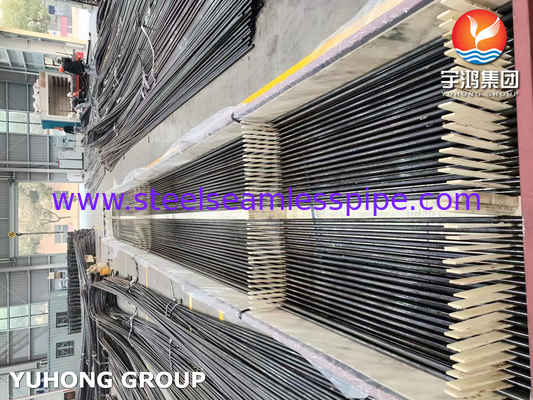

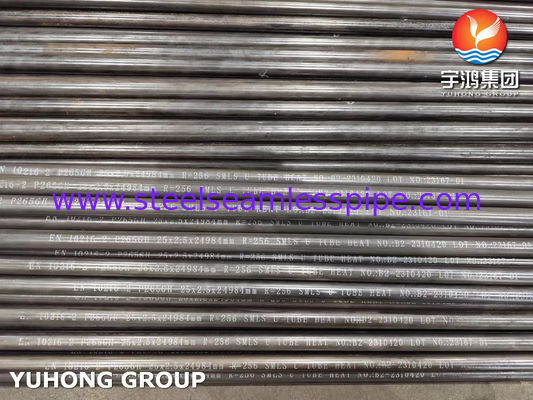

Boiler Tube EN10216-2 P265GH Carbon Steel U TUBE For Boiler
EN10216-2 P265GH U tube is a type of seamless carbon steel tube that conforms to the European standard EN10216-2. This tube is made from P265GH steel, which is a non-alloy quality steel used for high-temperature service applications. The "U" shape of the tube allows for easy installation and connection in various piping systems. This type of tube is commonly used in power plants, boilers, and other industrial applications where high temperatures and pressure are present.
Chemical composition of EN 10216-2 P265GH
| Steel grade | Steel number |
C | Si | Mn | P max | S max | Cr | Mo | Ni |
| P265GH | 1.0425 | ≤ 0,20 | ≤ 0,40 | ≤ 1,40 | 0,025 | 0,020 | ≤ 0,30 | ≤ 0,08 | ≤ 0,30 |
| Al tot | Cu | Nb | Timax | V | Cr+Cu+Mo+Ni | Others |
| ≥ 0,020 b | ≤ 0,30 c | ≤ 0,010 d | 0,040 | ≤ 0,02 | ≤ 0,70 | - |
| Steel grade | Upper yield strength or proof strength R eH or Rp 0,2 for Wall Thickness T min. |
Tensile Strength Rm |
Elongation A min. % a |
|||||
| Steel name | Steel number |
T ≤ 16 | 16 < T ≤ 40 | 40 < T ≤ 60 | 60 < T ≤ 100 | l | t | |
| MPa * | MPa * | MPa * | MPa * | MPa * | ||||
| P265GH | 1.0425 | 265 | 255 | 245 | - | 410 to 570 | 23 | 21 |
| Outside Diameter D mm | Tolerances on D |
Tolerances on T for a T/D ratio | |||
| ≤ 0,025 | > 0,025 ≤ 0,050 |
> 0,050 ≤ 0,10 |
> 0,10 | ||
| D ≤ 219,1 | ± 1% or ± 0.5mm whichever is the greater |
± 12,5% or ± 0.4mm whichever is the greater | |||
| D > 219,1 | ± 20% | ± 15% | ± 12,5% | ± 10% a | |
| a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T | |||||
| Tolerances on inside diameter | Tolerances on T for a T/d ratio | |||||
| d | d min | ≤ 0,03 | > 0,03 ≤ 0,06 |
> 0,06 ≤ 0,12 |
> 0,12 | |
| ± 1% or ± 2 mm whichever is the greater | (+ 2% ,0)or (+ 4 mm,0) | whichever is the greater | ± 20% | ± 15% | ± 12,5% | ± 10% a |
| a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T | ||||||
| Outside diameter D mm | Tolerances on D | Tolerances on T min for a T min /D ratio | |||
| ≤ 0,02 | > 0,02 ≤ 0,04 |
> 0,04 ≤ 0,09 |
> 0,09 | ||
| D ≤ 219,1 | ± 1% or ± 0.5mm whichever is the greater |
(+ 28%,0) or (+ 0.8 mm,0) whichever is the greater | |||
| D > 219,1 | + 50% 0 |
+ 35% 0 |
+ 28% 0 |
+ 22% a 0 |
|
| a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T | |||||
| Tolerances on inside diameter |
Tolerances on T min for a T min /d ratio |
|||
| d | d min | ≤ 0,05 | > 0,05 ≤ 0,1 |
> 0,1 |
| ± 1% or ± 2 mm whichever is the greater |
(+2%,0) or (+ 4 mm,0) whichever is the greater | + 35% 0 |
+ 28% 0 |
+ 22% a 0 |
| a For outside diameters D ≥ 355,6 mm it is permitted to exceed the upper wall thickness locally by a further 5% of the wall thickness T | ||||
Applications of EN10216-2 P265GH U tubes include:
1. Power generation
2. Petrochemical industry
3. Oil and gas industry
4. Chemical industry
5. Automotive industry
