Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG GROUP |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |

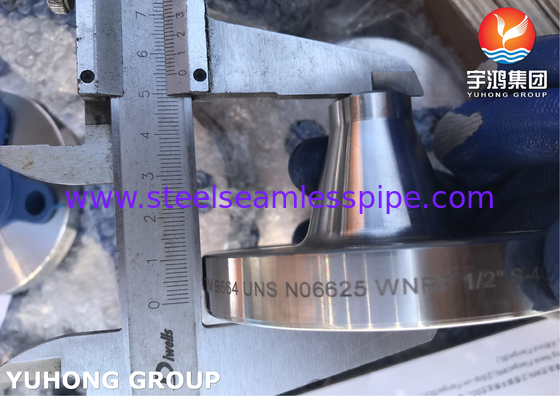

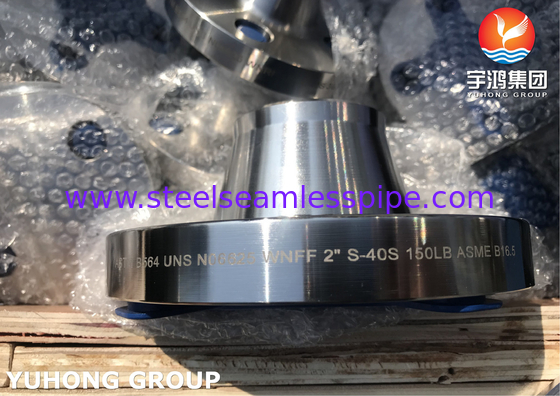

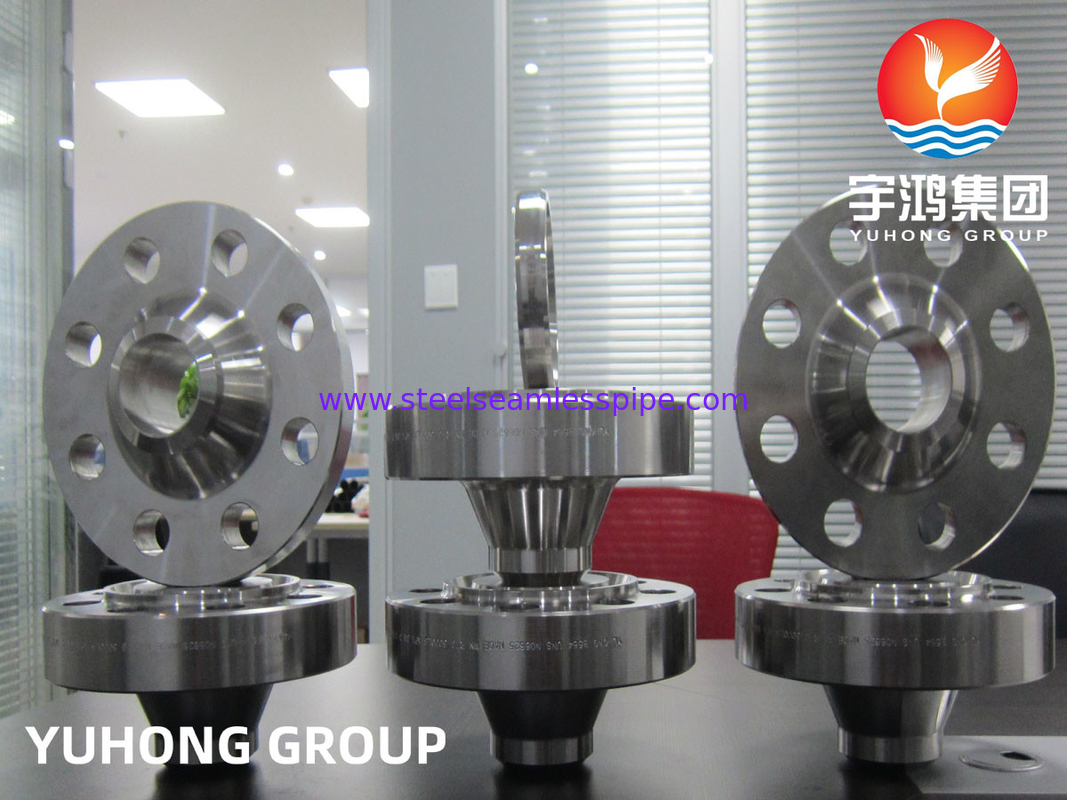

| Model Number: | ASTM B564/ASME SB564 INCONEL 625/UNS N00625/DIN 2.4856 WN RTJ FLANGE |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Ply-wooden case or standard seaworthy export packing or as per customers' request |
| Delivery Time: | according to quantity |
| Payment Terms: | L/C,T/T,Money Gram,Western Union |
| Supply Ability: | 200 TONS PER MONTH |
| Type: | Welding-Neck/Thread/Loose/Slip-On/Bind/Plate | Flange Face: | FF, RF, RTJ, SO Etc. |
|---|---|---|---|
| Grade: | INCONEL 625/UNS N00625/DIN 2.4856 | Standard: | ASTM B564/ASME SB564 |
Overview
Flanges are flat, typically circular discs with evenly spaced holes around the perimeter. They are used to connect pipes, valves, pumps, and other equipment to form a piping system. Flanges are usually made of metal (such as stainless steel, carbon steel, or aluminum), although they can also be made of plastic or other materials depending on the application.The primary purpose of flanges is to provide a method of connecting and sealing two or more components of a piping system. They allow for easy assembly and disassembly of piping systems, making maintenance and repairs more manageable. Flanges also provide support and reinforcement to the joint, helping to prevent leaks and maintain structural integrity under pressure.
Inconel 625 flange, Alloy 625, UNS N06625 Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb | ЭИ602 |
| Grade | C | Mn | Si | P | S | Ni | Cr | Fe | Mo | Co | Al | Ti | Nb + Ta |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | 0.015 max | 58.0 min | 20.0 – 23.0 | 5.0 max | 8.0 – 10.0 | 1.0 max | 0.40 max | 0.40 max | 3.15 – 4.15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa –205 | 30 % |
Industries and Applications
Inconel 625 is a high-performance nickel-based alloy known for its excellent corrosion resistance, high strength, and exceptional heat resistance. Inconel 625 flanges are commonly used in various demanding applications across industries such as aerospace, chemical processing, marine engineering, oil and gas, and nuclear power generation.
