Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ISO9001-2015, API 5L, API 5CT |
| Model Number: | TP304 |
| Minimum Order Quantity: | 1TON |
|---|---|
| Price: | 1-130000 USD |
| Packaging Details: | Ply-wooden case |
| Delivery Time: | 45 -60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500tons/month |
| Material: | Stainless Steel | Product: | Seamless U Bend Tube |
|---|---|---|---|
| Material Grade: | TP304 | Packing Details: | Ply-wooden Case |
| Use: | Heat Exchanger / Boiler / Furnase, Etc | Size And Length: | Required By Cliente |

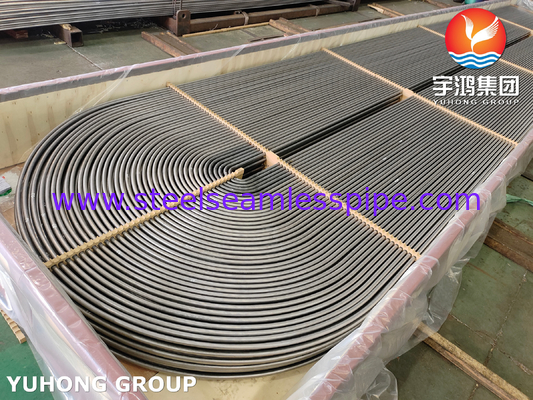

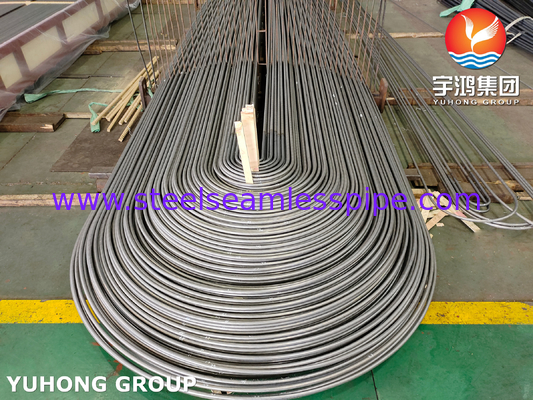

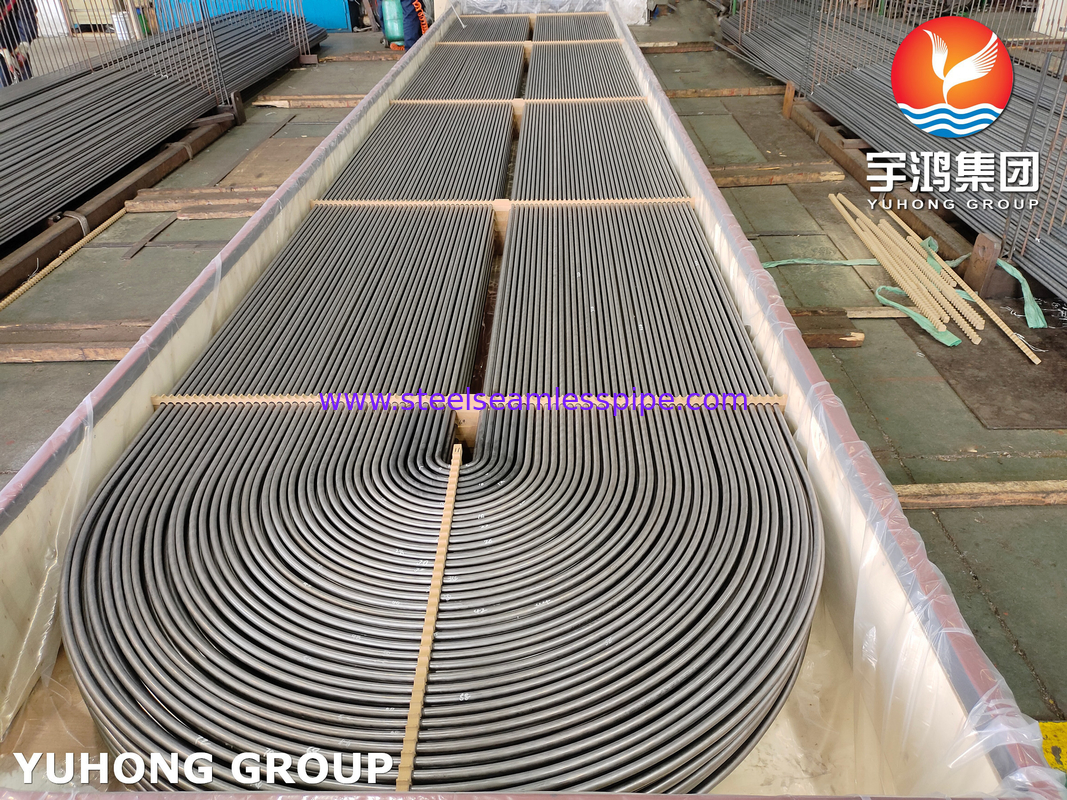

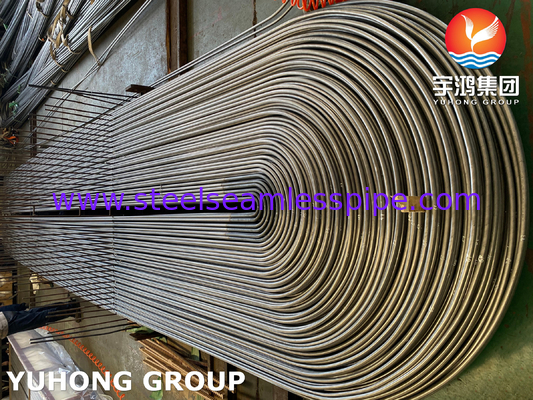

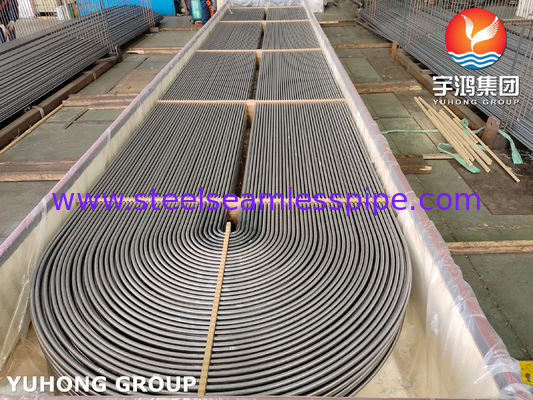

Stainless Steel Seamless TP304 U Bend Heat Exchanger and Furnace Tubes
YuHong Group as one of the leading suppliers in China to supply U bend tubes and has many experiences in exporting to 35 countries.
Stainless steel U bend tubes are commonly used in a variety of applications such as boilers, heat exchangers, cooling systems, condensers and Heatec processes. These tubes are designed to be U-bent for efficient heat transfer and fluid flow.
Each U bend tube of our range is rigorously quality checked by our team of professionals on every produce of production to provide customers with defect-free quality products.
These U-shaped bends can be custom designed in various diameters according to customer requirements and drawings.
ASME SA213 This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc.
ASME SA249 This specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes. Grades TP304H, TP309H, TP309HCb, TP310H, TP310HCb, TP316H, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service such as for superheaters and reheaters.
ASME SA312 This specification covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe intended for high-temperature and general corrosive service.
Manufacturing Process:
Straight tube - U bending before 100% flaw detection - Using reliable bending machine and precision bending mould - Bending after the U-shaped part having the electric heating stress relief annealing - Bending after 100% water pressure.
Equivalent Material:
| Gr. | UNS | British | Euronorm | Japanese JiIS | Swedish SS | GOST | ||
| BS | En | NO | NAME | |||||
| TP304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | SUS 304 | 2332 | 08X18H10 |
Chemical Composition % Max
| Gr. | C | Si | Mn | Cr | Ni | S | P |
| TP304 | 0.08 | 1 | 2 | 18-20 | 8-11 | 0.03 | 0.045 |
Mechanical Property
| Gr. | Elongation% | Tensile Strength min | Yield Strength min |
| TP304 | 35 | 515MPa | 205MPa |
Tests
Corrosion Test
Chemical Analysis
Destructive / Mechanical Testing:Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection, etc
Applications
Petrochemical Plant
Mechanical Equipment
Automotive Sectors
Fertilizer Plants
Sugar Industry
Oil & Gas plants
Chemical Plants
Renewable Energy Plants
We are glad to supply your needs whatever the sizes, shapes, dimensions you want for heat exchanger
tubes.
Welcome to your inquiry to YUHONG Group!
Contact Person: Isabel Yao
Tel: +8618268758675
Fax: 0086-574-88017980
