STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI

STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI

  • STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI
  • STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI
  • STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI
STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: API , ABS, DNV, GL , LR, NK
Model Number: ASTM A182,ANSI/AWWA C207 ,C228
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: PLYWOOD CASE,PALLET
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
SIZE: 1/2"~24" FACE: RF(raised Face);FF(flat Face);RTJ(ring Type Joint); RJ(ring Joint Face) TG(tongue And Groove Face);MF M (male And Female Face)
CLASS: 86PSI, 175-150 PSI STANDARD: ASTM A182,ANSI/AWWA C207 ,C228
Feature: Ultimate Tensile Strength Origin: CHINA
Highlight:

TABLE 2 STEEL FLANGE

,

150PSI STEEL FLANGE

STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 170 - 150PSI

High pressure steel flange, forged flanges, Table 2 AWWA C207 Class D Ring & Blind Flanges



The AWWA C207 is an American National Standard for steel pipe flanges for waterworks service, sizes 4″ through 144″ (100 mm through 3600 mm). The AWWA is the abbreviation of “American Water Works Association”. The origin of AWWA C207 can be dated back to year 1942 when a paper proposing standards for slip-on steel-ring flanges for welding to steel water pipes. This standard was necessary because the lowest pressure ratings for steel flanges at that time were those having cold-water pressure ratings of 275 psi (1896 KPa). The ratings are far higher than those ordinarily needed for water service (150 psi / 1034 KPa) primary pressure rating.



Type WN, SO, PL, BL, SW, THRD, LJ, Spectacle Blind
Standard ASME,MSS, JIS, EN,GB, DIN,GOST,BS,others
Size 1/2” - 80”
Pressure 150#-2500#, PN6-PN40, 5K-16K
Steel Grade A105
A350 LF2, LF3
A182 F5, F9, F91, F11, F12, F22
A182 F304, F304L, F316, F316L, F321
A694F42, F46, F56, F60, F65, F70,F80,F100 ,API 5L
Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface Vanish Coating, Black Oil coating as per customer’s requirement

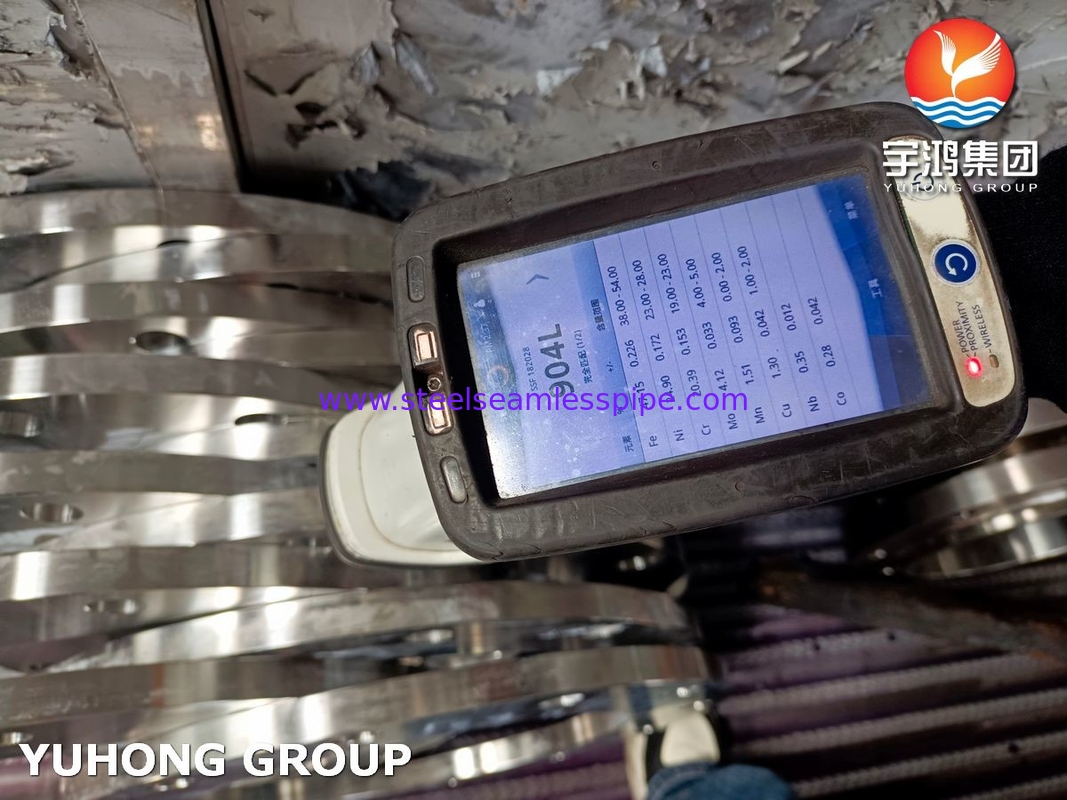

Test Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Blow Test, Impact Test), Exterior Size Inspection
Mill Test Certificate
EN 10204/3.1B

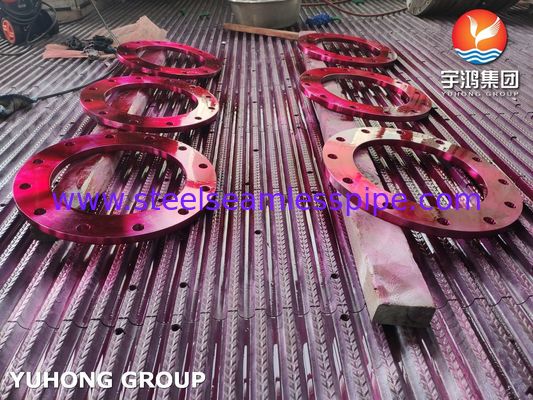

STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI 0



STEEL FLANGE AWWA C207 TABLE 2 CLASS D SOFF A240 ASTM DIN 175 - 150PSI 1
