ASTM A182 F53 UNS S32750 Super Duplex Steel Slip On RF Flanges For Desalination

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	F53, UNS S32750

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case / Pallet
Delivery Time:	5 - 60 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	According to Clients' Requirement

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Standard:	ASTM A182, ASME SA182	Material Grade:	F53, UNS S32750
Size:	1/2"-48"	Pressure:	Class150/300/600/9001500/2500
Type:	Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange	Technics:	Froged
Surface Treatment:	Heat Treatment, Galvanized, Customize	Applicationsl:	Seawater Desalination, Waste Water Treatment, Petroleum, Chemical Industry, Etc.
Highlight:	ASTM A182 Steel Flange , UNS S32750 Steel Flange , Desalination Steel Flange

ASTM A182 F53, UNS S32750 Super Duplex Steel Slip On RF Flanges For Desalination

ASTM A182 F53 (UNS S32750) is a super duplex stainless steel with high strength and excellent corrosion resistance. It is often used in applications where a combination of good mechanical properties and resistance to corrosion is required, such as in chemical processing, oil and gas, and offshore industries. We, YUHONG GROUP is manufacturer and supplier of super duplex stainless steel flanges with more than 30 years' experience. These super duplex stainless steel flanges are usually used in applications, like sea water desalination, waste water treatment, marine system, oil and gas plant and so on.

Specifications:

Specifications	ASTM A182, ASME SA182
Standards	BS, ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, EN-1092, BS 10, ANSI, ASME, DIN, EN, GOST.
Class	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Size Range	1/2" to 48" DN10~DN5000
Production technique	Forged, Heat treated and machined
Main Types	Forged / Threaded / Screwed / Plate
Connect Type / Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Lap-Joint Face (LJF), Large Tongue & Groove, Etc.

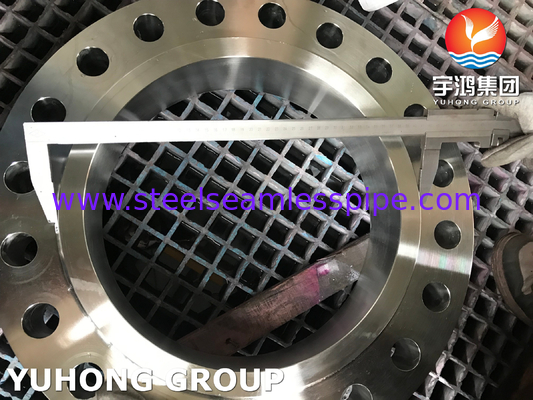

ASTM A182 F53 UNS S32750 Super Duplex Steel Slip On RF Flanges For Desalination 0

Chemical Composition:

C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
0.03 max	1.2 max	0.8 max	0.035 max	0.02 max	24 – 26	3 – 5	6 – 8	0.24 – 0.32	58.095 min

Mechanical Properties:

Tensile Strength, Ksi	Proof Strength 0.2%, Ksi (min)	Elongation, %, min	Hardness Rockwell C
110-135	80	15	28 max

Applications:
Chemical processing: Flanges are utilized in chemical plants and reactors where resistance to chemicals, acids, and high temperatures is required.

Petrochemical industry: Flanges are used in petrochemical plants for connecting different piping systems.

Marine industry: Flanges are used in shipbuilding and offshore structures due to their resistance to seawater corrosion.

Power generation: Flanges are used in power plants, especially in areas where high temperature and pressure conditions exist.

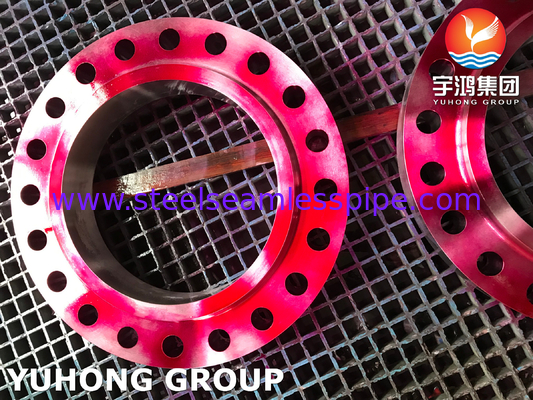

ASTM A182 F53 UNS S32750 Super Duplex Steel Slip On RF Flanges For Desalination 1
